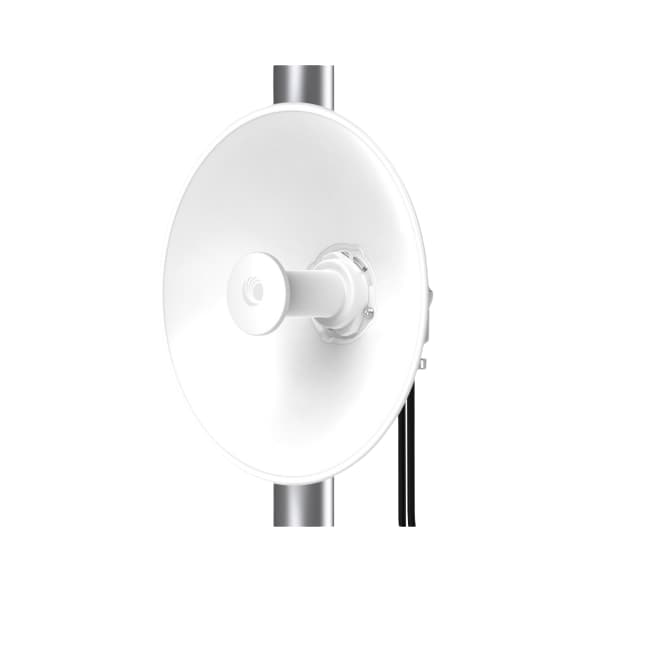

Cambium Networks ePMP 6GHz Force 4625 SM Bulk Packaging
- SKU: C068940M142A-T
$299.00
+ $13.46 Tariff
- Manufacturer: Cambium Networks
- Data Sheet: Download
Product Information
The Force 4600 Series of Subscriber Modules are available in two form factors: connectorized with 2 x RP-SMA connectors and integrated with a 25dBi dish antenna. Both models include the following:
- High capacity and latencies less than 5ms when using ePTP technology.
- Proven air interface on top of 802.11ax technology
- Interoperability with the ePMP 4600 Series SM, which uses MU-MIMO to achieve more than 4Gbps per sector by transmitting to two ePMP 4600 Series Subscriber Modules simultaneously.
- Security features meet the requirements of enterprise, industrial, government, and service provider users.
- Management by Cambium Networks cnMaestro™ element management system for easy provisioning, monitoring, and upgrades.
- Network planning with LINKPlanner and cnHeat.
- 3-year hardware warranty and support from Cambium Networks.
- Each SM includes a Power over Ethernet injector and pole mount hardware.
Product Features
- High capacity and latencies less than 5ms when using ePTP technology
- Proven air interface on top of 802.11ax technology
- Interoperability with the ePMP 4600 Series Access Points
- Management by Cambium Networks cnMaestro element management system for easy provisioning, monitoring and upgrades
- Network planning with LINKPlanner and cnHeat
- 3-year hardware warranty and support from Cambium Networks
- Each SM comes with a Power over Ethernet injector and pole mount hardware included
Specifications
Specifications C068940M142A
| Weight | 32.49 lbs |
| Dimension | 20.86" x 20.86" x 8.85" |
| HTS Code | 8517.62.0090 |
| Country of Origin | China |
| Models | Force 4625 |
| Channel Width MHz | 20 | 40 | 80 | 160 MHz |
| Proprietary Physical Layer | ePMP air interface with 2x2 MIMO/OFDMA based on 802.11ax underlying technology |
| Channel Spacing | Configurable in 5 MHz increments |
| Frequency Range | Wide Band Operation 5925–7125 MHz |
| MAC Layer (Media Access Control) | Cambium Proprietary |
| Ethernet Interface | 100/1000 BaseT, rate auto negotiated, 802.3at compliant; 4600C has SFP+ port |
| Protocols Used | IPv4/IPV6 , UDP, TCP, IP, ICMP, SNMPv2c, HTTPs, STP, SSH, IGMP Snooping |
| Network Management | HTTP/HTTPS, SNMPv1/2, SNMPv3, SSH |
| VLAN | 802.1Q with 802.1p priority |
| ARQ | Yes |
| Nominal Receive Sensitivity (w/FEC) @20 MHz Channel | MCS 0 = -92 dBm to MCS 11(1024 QAM-5/6) = -61 dBm (per chain) |
| Nominal Receive Sensitivity (w/FEC) @40 MHz Channel | MCS 0 = -89 dBm to MCS 11(1024 QAM-5/6) = -58 dBm (per chain) |
| Nominal Receive Sensitivity (w/FEC) @80 MHz Channel | MCS 0 = -86 dBm to MCS 11(1024 QAM-5/6) = -55 dBm (per chain) |
| Nominal Receive Sensitivity (w/FEC) @160 MHz Channel | MCS 0 = -86 dBm to MCS 11(1024 QAM-5/6) = -51 dBm (per chain) |
| Modulation Levels (Adaptive) | MCS 0 (BPSK) to MCS 11(1024 QAM-5/6) |
| Geolocation | External USB GPS receiver |
| Transmit Power Range | +3 to +30 dBm (combined, to regional EIRP limit) (1 dB interval) |
| Quality of Service (QoS) | Three level priority (Voice, High, Low) with packet classification by DSCP, COS, VLAN ID, IP & MAC Address, Broadcast, Multicast and Station Priority, MIR/CIR* support |
| Surge Supression | 1 Joule Integrated |
| Environmental | IP55 |
| Temperature | -30°C to 65°C (-22°F to 149°F) |
| Pole Diameter Range | Center:3.1 to 7.6 cm(1.25 to 3.0 inches) |
| Power Consumption | 28W |
| Input Voltage | 44V–59V |
| Antenna | 25 dBi Integrated Dish |
