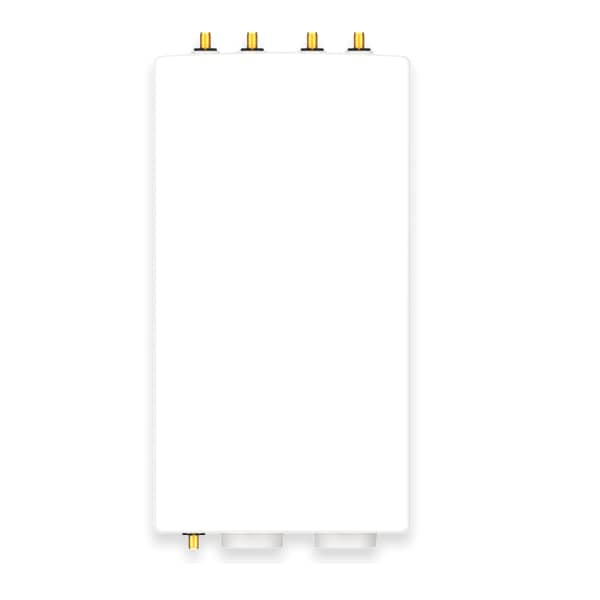

Cambium Networks ePMP 4600 6GHz 4x4 Connectorized Access Point Radio FCC/IC
- SKU: C068940A122B
$1,499.00
+ $67.46 Tariff
- Manufacturer: Cambium Networks
- Data Sheet: Download
Product Information
The ePMP 4600 6GHz 4x4 Access Point Radio features 4x4 MU-MIMO and dual overlapping sectors and can transmit to two SMs simultaneously. This effectively doubles the capacity of 2x2 systems and, in the process, increases link budgets by 3dB with downlink beam steering. Combining 160MHz channels, 4096QAM, and OFDMA, the ePMP 4600 delivers up to 4Gbps total aggregate capacity to as many as 120 subscribers. The ePMP 4600 is deployed with the 90° 4x4 MU-MIMO sector available from Cambium Networks.
Product Features- High-performance, scalable and reliable access points for fixed wireless broadband
- ePMP 4600 features MU-MIMO for up to 4Gbps in 6GHz
- Low TCO with three-year hardware warranty
- Interoperable with all Force 4600 radios
Specifications
Specifications
| Weight | 21.12 lbs |
| Dimension | 20.86" x 14.96" x 8.85" |
| HTS Code | 8517.62.0090 |
| Country of Origin | China |
| Channel Width | 20 | 40 | 80 | 160 MHz |
| Proprietary Physical Layer | 4x4 MU-MIMO/OFDMA based on 802.11ax underlying technology |
| Channel Spacing | Configurable in 5 MHz increments |
| Frequency Range | Wide Band Operation 5925–7125 MHz |
| MAC Layer (Media Access Control) | Cambium Proprietary" |

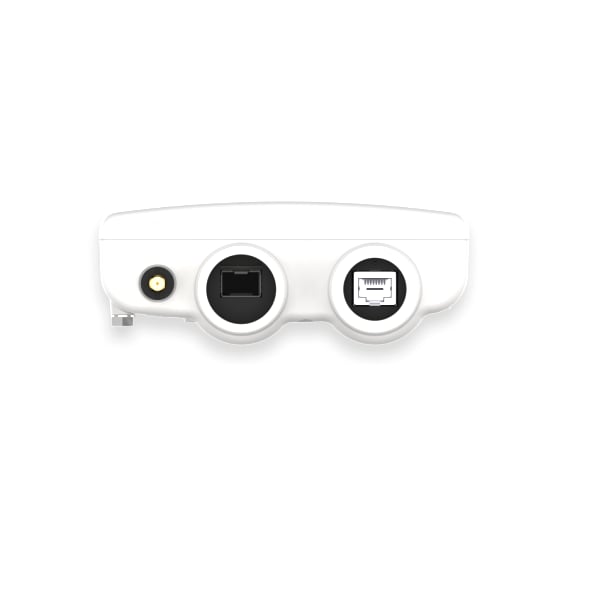

| Ethernet Interfaced | 100/1000 BaseT, rate auto negotiated, 802.3at compliant & Aux SFP+ port |
| Supported Powering Methods | 56 V 30W PoE (included), standard 802.3at PoE Supply, or cnMatrix Tower Switch |
| Protocols Used | IPv4/IPV6 , UDP, TCP, IP, ICMP, SNMPv2c, HTTPs,STP, SSH, IGMP Snooping" |
| Network Management | HTTP/HTTPS, SNMPv2c, SNMPv3, SSH 802.1Q |
| VLAN | 802.1Q with 802.1p priority |
| Transmit Power Range | 0 to +31 dBm (combined, to regional EIRP limit) (1 dB interval) |
| Antenna | 90º 4x4 Sector Antenna available - Part # C060940D301A |
| Subscribers per Sector | Up to 120 |
| ARQ | Yes |
| Nominal Receive Sensitivity (w/FEC) @20 MHz Channel | MCS 0 = -92 dBm to MCS 13(4096 QAM-5/6) = -54 dBm (per chain" |
| Nominal Receive Sensitivity (w/FEC) @40 MHz Channel | MCS 0 = -89 dBm to MCS 13(4096 QAM-5/6) = -50 dBm (per chain)" |
| Nominal Receive Sensitivity (w/FEC) @80 MHz Channel | MCS 0 = -86 dBm to MCS 13(4096 QAM-5/6) = -46 dBm (per chain)" |
| Nominal Receive Sensitivity (w/FEC) @160 MHz Channel | MCS 0 = -83 dBm to MCS 13(4096 QAM-5/6) = -43 dBm (per chain)" |
| Modulation Levels (Adaptive) | MCS 0 (BPSK) to MCS 13 (4096 QAM-5/6) |
| GPS Synchronization | Yes, via Internal GPS or Cambium Sync QoS |
| (Quality of Service) | Three level priority (Voice, High, Low) with packet classification by DSCP, COS, VLAN ID, IP & MAC Address, Broadcast, Multicast and Station Priority |
| Surge Supression* | 1 Joule Integrated |
| Environmental | IP67 |
| Temperature | -30°C to 55°C (-22°F to 131°F) |
| Power Consumption | 28W Maximum |
| Input Voltage | 44V to 59V |

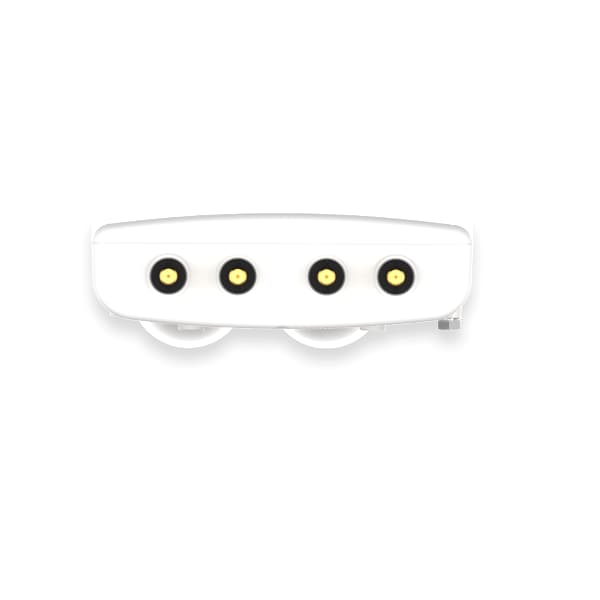

| Sector Antenna Connection | 4 x 50 ohm, RP (Reverse Polarity) SMA |
| GPS Antenna Connection | 1 x 50 ohm, RP (Reverse Polarity) SMA; external GPS Puck Antenna - Part # N000900L030A |
