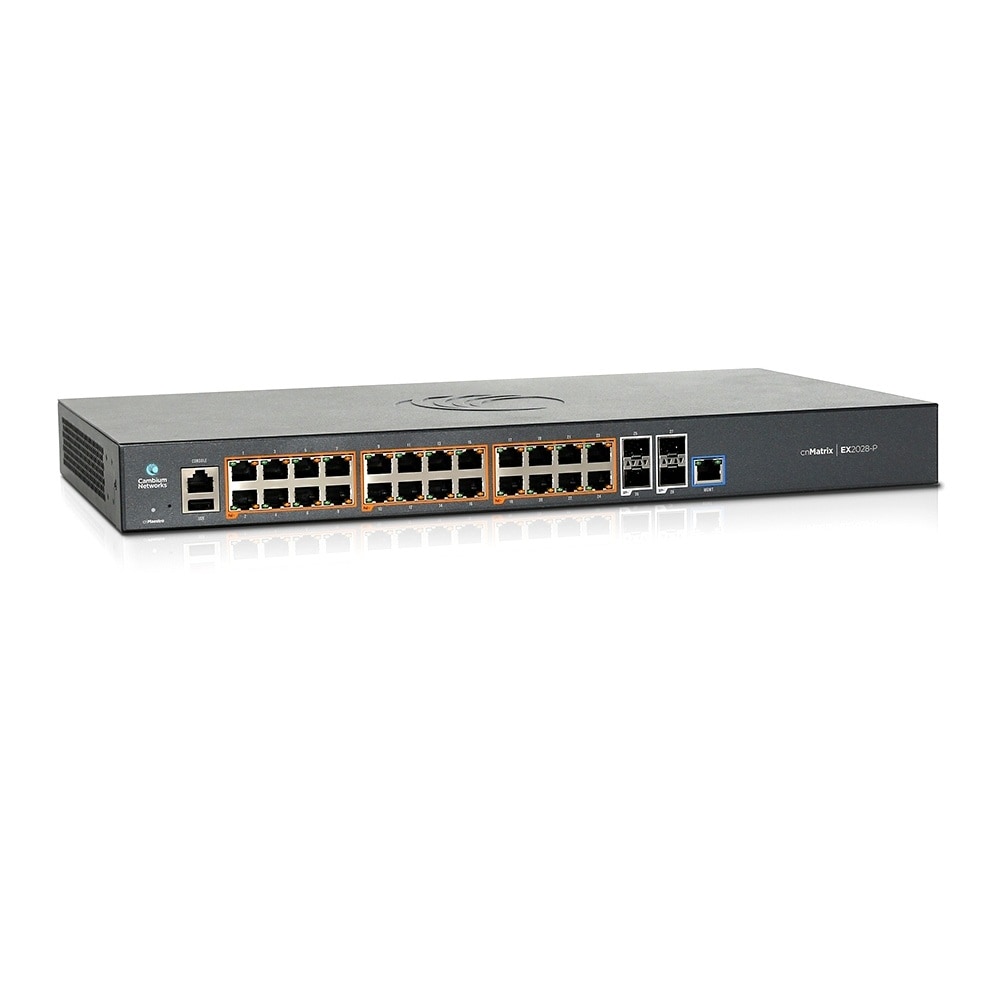

Cambium Networks cnMatrix EX2028-P Intelligent Ethernet PoE Switch
- SKU: MX-EX2028PxA-U
$1,749.38
- Manufacturer: Cambium Networks
- Data Sheet: Download
Product Information
Cambium Networks’ next generation switching platform offers a cloud managed, high performance, feature rich enterprise grade ethernet switching solution.
cnMatrix EX2028-P switches simplify network deployment and operation. When deployed with cnPilot WLAN access points and the cnMaestro™ management system, network operators have an affordable, feature rich, high quality unified wired/ wireless enterprise grade network. Improve performance, security and end user satisfaction while reducing costs with cnMatrix EX2028-P.
Product Features- Easy and simple, free cloud (or on premise) management with cnMaestro™ or XMS
- Zero-touch deployment of switches makes installation easy
- Policy Based Automation eliminates manual and time consuming configuration
- Enhanced Security with automated device profiling and segmentation
- Policy Based Automation eliminates manual configuration during adds, moves and changes of network devices
- Unified Wired-Wireless access solution
- Throughput: 128Gbps
- 4x SFP+ Uplink Ports
- 24x PoE+ Enabled Ports
Specifications
Specifications MX-EX2028PxA-U
| Throughput | 128Gbps |
| Non-Blocking | Yes |
| PoE Enabled Ports | 24 |
| PoE Power Budget Units (watts) | 400 |
| 10/100/1000 Ports | 24 |
| Uplink Ports | 4 SFP+ |
| Serial Console | Yes |
| USB | Yes |
| OOB Port | Yes |
| Rack mount kit | Yes |
| Internal Fans | 2 |
| Maximum Routes (Static) | 64 |
| Dynamic Routing | 512 |
| LACP/Trunking | 8 LAGs / 8 Links per 9216 |
| QoS Priority Queues | 8 |
| Maximum IGMP Multicast groups | 256 |
| Max PVRST | 32 |
