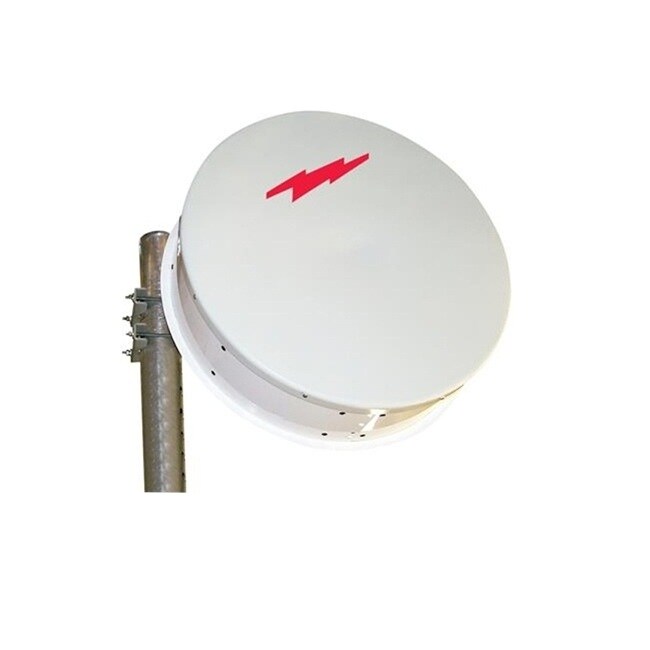

Cambium Networks 1FT Single Polarization Dish Antenna 23GHz RFU-C Type and Standard Interface UBR220 (Andrew)
- SKU: N230082D021A
$478.80 $622.44
- Manufacturer: Cambium Networks
Product Information
ISP Supplies supplies the Cambium Networks Cambium Networks 1' single polarization dish antenna, 23GHz, RFU-C type and standard interface UBR220 - Andrew.
Specifications
Specifications N230082D021A
| alpha frequency | 23 GHz |
| front-to-back ratio (dB) | 60 dB |
| mounting hdw included (Y/N) | N |
| maximum power input (W) | 150W |
| polarization | horizontal or vertical |
| lightning protection | DC ground |
| vertical tilt (deg) | 0 deg |
| antenna diameter (ft) | 1' |
| radome (Y/N) | Y |
| antenna size range | <2 ft |
| frequency range | 21200-24890 |
| dB gain range | 30.0 to 39.9 |
| gain | 34.8 dBi |
| frequency (bandwidth) | 21.2-23.6 GHz |
| VSWR | <1.2:1 |
| connector | RFU-C type & UBR220 |
| wind survival w/o ice (MPH) | 125 MPH |
| beamwidth (deg) | 2.8 deg |
| Depth | 16" |
| Width | 16" |
| Height | 10" |
| Weight | 18 LB |
