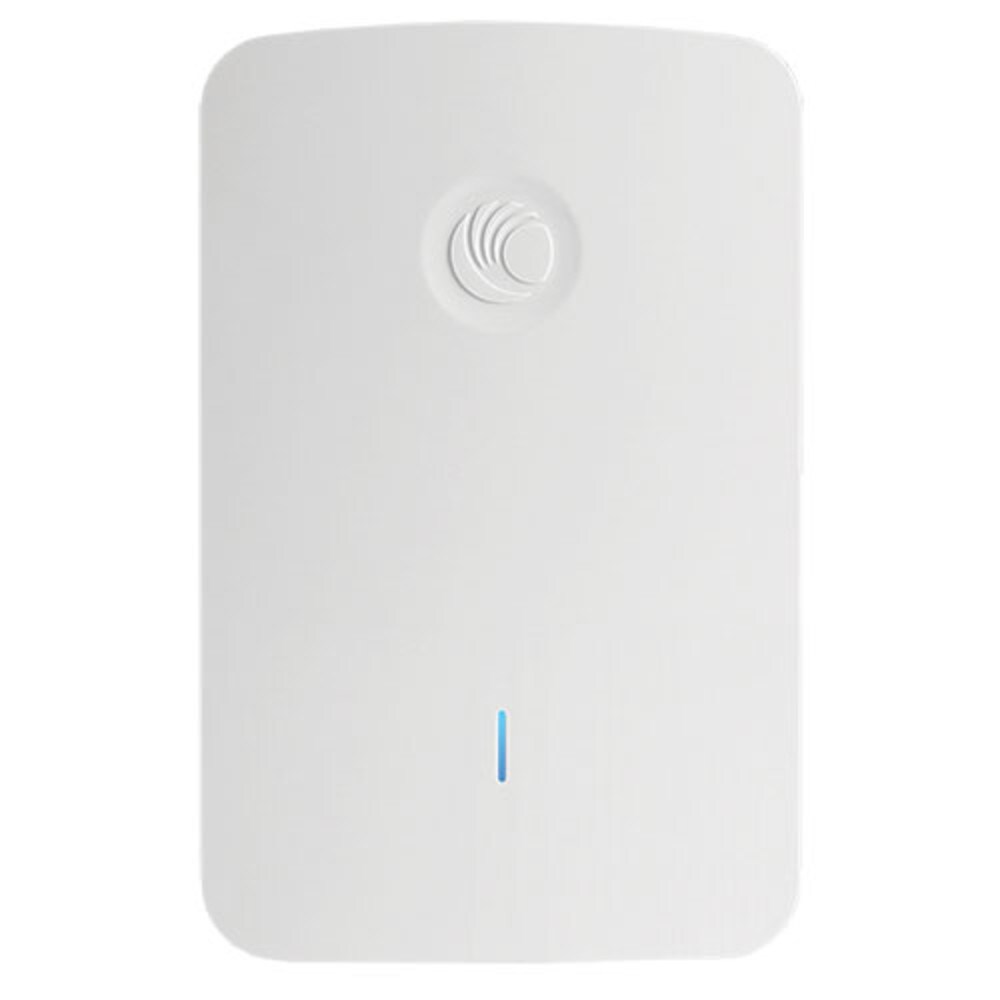

Cambium Networks cnPilot e425H Indoor Wall Plate Access Point (US)
- SKU: PL-E425H00A-US
Product Information
The Cambium Networks cnPilot e425H enterprise class indoor wall plate access point supporting 802.11ac Wave 2 standards based beamforming, is perfect for hotels and resorts, multi-dwelling units (MDUs) or just about any place indoor that needs a wall mounted AP with multiple Gig E ports to drive indoor Wi-Fi and wired port network access managed via portals.
e425 installs quickly over a standard wiring box, or to other boxes and surfaces using the optional mounting adapters. e425 has three gigabit Ethernet ports. All ports support 802.1Q VLANs, IGMP, switched virtual interface layer 3 routing, DHCP, and firewall. Deliver 15 watts of operating power to an external device such as a VoIP phone, an in-room IoT hub or even another AP. VLAN and IP segmentation allows secure connections to a TV set-top box, laptop, printer, or any networked device.
Product Features- 15 watts power out on one-gigabit port
- 25dBm EIRP (5GHz)
- Three-gigabit Ethernet
Specifications
Specifications PL-E425H00A-US
| ACCESS POINT | |
| US-FCC | 2400 – 2484 MHz, 5150 – 5250 MHz |
| Industry Canada (ISEDC) | 2400 – 2484 MHz, 5725 – 5850 MHz |
| EU-ETSI | 2400 – 2484 MHz, 5150 – 5250 MHz |
| ROW (individual country limits may apply. Consult DoC) | 2400 – 2500 MHz, 5150 – 5850 MHz |
| SSID Security | WPA2 (802.11i), WPA2 Enterprise (802.1x/EAP), WPA PSK, Open |
| Max Phy Rate | 2.4 GHz radio: 300 Mbps 5 GHz radio: 867 Mbps |
| Ethernet Ports | Three IEEE Gigabit Ethernet auto sensing One GE is 802.3af PSE port |
| Antenna | Integrated dual polarized, omnidirectional 4dBi (2.4GHz) 4.29dBi (5GHz) |
| Max EIRP | 2.4 GHz: 25 dBm 5 GHz: 25 dBm |
| WLAN AND NETWORK | |
| Controller mode | Controller-less standalone AutoPilot heterogeneous network Cloud managed cnMaestro On-premises cnMaestro VM |
| WLAN | 100 clients, 16 SSIDs WPA-TKIP, WPA2 AES, 802.1x 802.11w PMF |
| Captive Portal | Hosted on cnMaestro Controller On-AP hosted guest portal Redirect to HTTP/RADIUS Server DNS logging |
| Authentication | Hotspot 2.0/Passpoint 2.0 802.1x EAP-SIM/AKA, EAP-PEAP, EAP-TTLS, EAP-TLS MAC authentication to local database or external RADIUS |
| Accounting | RADIUS accounting, multiple AAA |
| Scheduled | WLAN On/off by day, week, time of day |
| Guest Access | Vouchers, Rate Limit, Splash page hosted on AP or cnMaestro Client isolation per SSID, per network |
| Time/Data Limit | Time, Rate, Throughput limit per SSID |
| Subscriber QoS | WMM, client isolation network wide |
| Mount Options | Standard mount single gang J-box bracket included. Dual gang J-box bracket and flush box optional |
| Power | Typical, no PSE load: 9w Typical, with 802.3af PSE load: 25w Power: 802.3af or 802.3at PD PSE port: 802.3af with input 802.3at |
| Physical Environmental | USB 2.0 147mm x 94mm x 32mm 268g Kensington lock slot, secure bracket Tri-color status LEDs 0C - + 40C ambient op temp -40C - + 70C storage temperature 95% RH non-condensing MTBF: 249k @ 45c |
| Certifications | WiFi Alliance 80211a/b/g/n/ac, PP2.0 in process FCC, ETSI, CE, EN 60601-1-2, IEC60950 |
| Fast Roaming | 802.11r, OKC, Enhanced roaming |
| Mesh | Multi-hop, either band |
| Channel Selection | autoTune: Manual, or automatic Selectable off-channel scan |
| Auto Tx Power | AutoRF: controller-less transmit power |
| Network | NAT, NAT logging firewall, DHCP server L2, L3 or DNS based access control VLAN Pooling, RADIUS attribute VID VLAN per SSID per user |
| Band Steer Load Balance | Yes |
| Tunnel | L2TP, L2oGRE, PPPoE |
| Tools | Remote Packet capture, Channel/noise/interference analyzer, auto logging, ZapD performance test tool, rogue AP detection |
| Services | NTP, Syslog, SNMP traps, DNS proxy, auto-off on WAN failure |
| API | RESTful management and statistics API Presence location APIs |
