Product Information

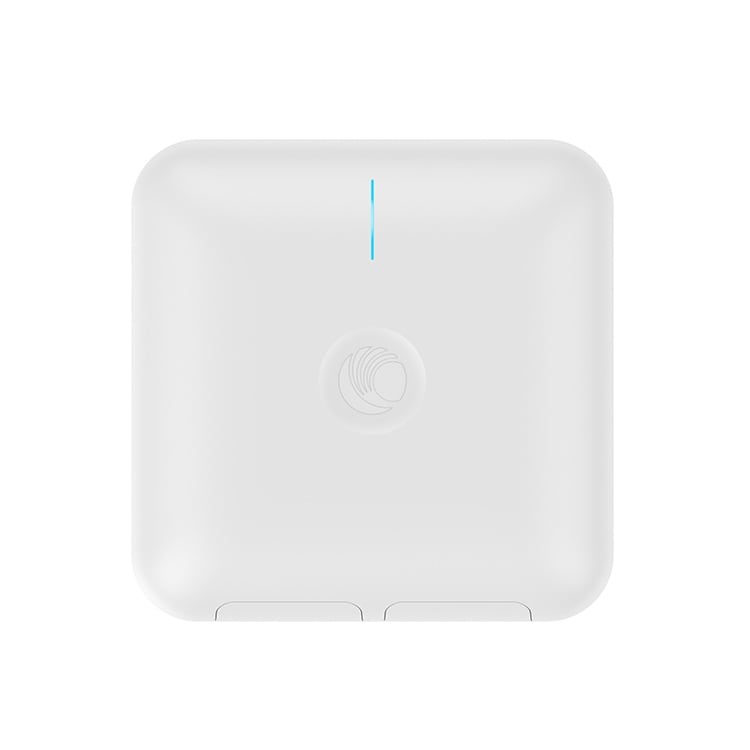

Designed to scale from small enterprises to K12 schools, the e600 features an easy-to-install integrated bracket and is enterprise grade 802.11ac Wave 2. The e410 and e600 from Cambium Networks share a common industrial design for repeatable and predictable installation in any enterprise or business. Both access points can be managed by cnMaestro cloud, on-premises cnMaestro, a private datacenter or as a standalone AP.
Stay on top of the latest standards with the high-powered, Gigabit speed, beamforming, Multi-user MIMO (MU-MIMO) 802.11ac Wave 2 e600 access point with a 4×4 antenna array.
Product Features- Cloud-Managed access with cnMaestro
- Controller-less distributed intelligence for seamless roaming
- Wi-Fi hotspot capabilities
- High capacity and reliability
- 1x 5GHz radio (802.11 a/n/ac Wave 2), 4x4 and 1x 2.4GHz (802.11 b/g/n), 2x2
- 2x IEEE Gigabit Ethernet auto sensing ports
- 1x USB 2.0 port
- 802.11 a/b/g/n/ac
- Access Point
- Ceiling Tile mount with Kensington lock slot
- PoE injector: N000000L034B
- Line cord: WC-N000900L007A
Specifications
Specifications PL-E600X00A-US
| Standards | IEEE 802.11a/b/g/n/ac Wave 2 | Other standards: 802.11 h/d/r/u/w/ |
| MiMO Streams | 2x2 (2.4 GHz) , 4x4 (5 GHz) MIMO streams. |
| Range | 250m (800ft) |
| Concurrent Clients | 512 |
| Max Data Rates | 3.85 Gbps (3,846 Mbps) |
| SSID | 16 SSIDs across 2 radios |
| Standards | 4.55 dBi (2.4 GHz)/4.25 dBi (5 GHz) |
| Multi-Hop Mesh | Yes, supported on Indoor and Outdoor access points. Mesh auto-recovery supported |
| Polarization | Dual-linear |
| Antenna Coverage | Omni (360°) |
| USB | Yes |
| Bluetooth Radio | Yes, BLE |
| Ethernet Ports | Two (2) x 1 Gigabit Ethernet (10/100/1000 Mbps) |
| Frequency Bands: | 2.4GHz: 2400 - 2484MHz 5GHz: 5150 - 5850MHz with DFS band support |
| Power Supply | Standard 802.3af injector, 802.3at PSE, 802.3af PSE (limited performance), 12VDC adapter (accessory) or PoE switch |
| Power Consumed | 22W (max) |
| Dimensions | 180 x 180 x 42mm |
| Weight | 400g |
| Temperature | 0 to 50°C |
| LED | Single LED window with tri-color (Amber, Blue, Green) display |
| Max Tx Power | 22dBm |
| Physical Lock | Kensington key hole |
