Cambium Networks cnPilot e700 Outdoor Access Point (FCC)
- SKU: PL-E700X00A-US
$1,093.01
- Manufacturer: Cambium Networks
- Data Sheet: Download
Product Information

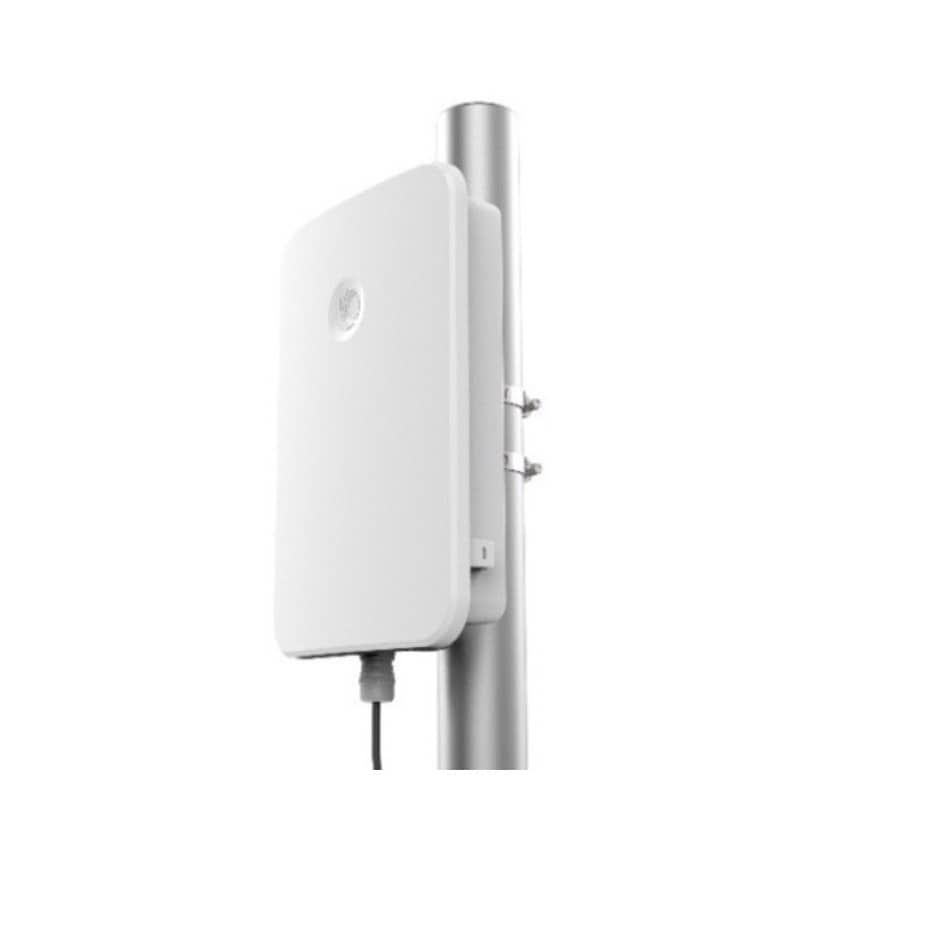

cnPilot e700 Enterprise Outdoor APs feature Gigabit throughput, 802.11ac Wave 2 standard with beam forming for superior outdoor Wi-Fi for enterprise campus, hospitality, higher education and public Wi-Fi applications.
The e700 is a cost-effective, controller-managed WLAN access point designed for the outdoors
Product Applications- Enterprise and industrial campus
- Hospitality
- Higher Education campus
- Public Wi-Fi
- Operational superiority: IP67 weather resilient with 512 max concurrent client associations, 16 SSIDs, WPA-2 encryption, Meshing, Dynamic VLANs, DFS channels, Access control lists (ACL), zero touch provisioning and more
- High performance: Wi-Fi Standards based beamforming, on 5 GHz over a 4x4 Tx/Rx antenna array, can steer beams to the target client device delivering superior performance under high interference RF environments in both downlink and uplink directions
- Mesh: Rapidly setup multi-hop mesh networks either dedicating one radio (e.g.: 5 GHz) for mesh backhaul, or using both bands for simultaneous client and mesh access
- Wireless Backhaul Integration: Roll out Wi-Fi networks rapidly with Cambium’s wireless backhaul powered from the aux PoE Out port on the e700 eliminating the need for a second power line
- Resilience: Dual on-board Active/Standby memory banks ensure higher availability
Specifications
Specifications PL-E700X00A-US
| Frequency Bands | 2.4 GHz: 2.4 – 2.4835 GHz Channels 1 – 13 (ETSI/CE), Channels 1 – 11 (US) 5 GHz: 5.15 – 5.85 GHz |
| SSID Security | WPA-2 (802.11i): WPA2-Enterprise (802.1x/EAP) & WPA2-Preshared-keys, Open |
| Max SSIDs | 16 |
| Max Concurrent Clients | 512 |
| Max Data Rates | 2.4GHz: 400Mbps, 5GHz: 1733Mbps |
| Ethernet Ports | Dual Gigabit Ethernet ports (2 x 10/100/1000Base-T) |
| Antenna | Integrated Omni |
| Antenna Gain | 8 dBi (2.4 GHz and 5 GHz) |
| Power Supply | 60W Gigabit passive PoE injector |
| POE Out | Aux port: capable of 802.3af out or Canopy power (for supported Cambium ePMP or PMP450 SMs) |
| Transmit Power | 25 dBm @ 2.4GHz 28 dBm @ 5 GHz |
| Power Consumed | Typical 18W. Max 24.6W |
| Dimensions (cm) | 315 x 215 x 66 mm (without bracket) |
| Weight | 3.174 lbs (1700 gms) without bracket |
| Operating Temperature | -40°C ~ +65°C (when aux PoE out port is not used) or -40°C ~ +60°C* (when aux PoE out port is used) |
| Operating Humidity | 10% ~ 95% |

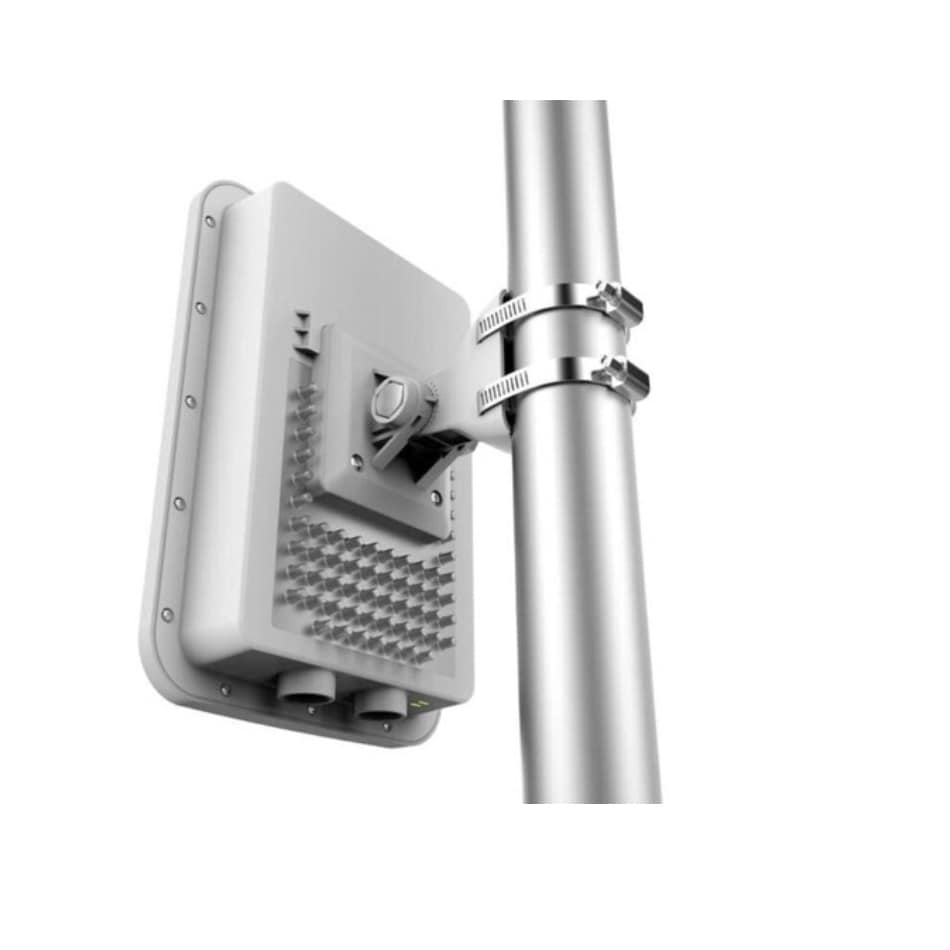

| Mounting Options | Pole mount bracket (included) or wall-mount (with included bracket or without) |
| LTE Co-Existence | Special filter for rejecting interference on 2.4 GHz from adjacent LTE bands 38, 40 |
| Phyiscal Security | Kensington Lock bracket |
| Visual Status | Two (2) multi-color LEDs indicating Access Point & cnMaestro connectivity status |
