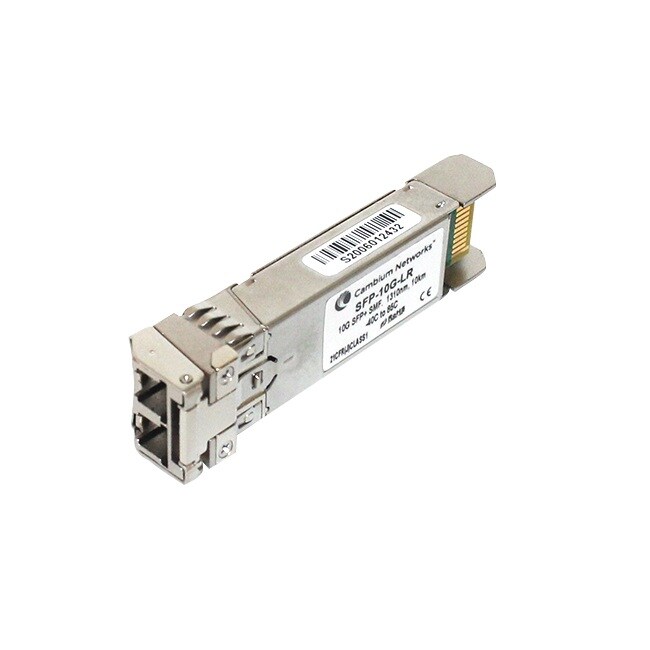

Cambium Networks 10G SFP+ SMF LR Transceiver

The Cambium Networks 1310nm DFB 10Gbps SFP+ transceiver is a “limiting module”, designed for 10GBASE-LR applications.

The SFP+ 10km module electrical interface is compliant to SFI electrical specifications. The transmitter input and receiver output impedance is 100Ohms differential. Data lines are internally AC coupled. The module provides differential termination and reduce differential to common mode conversion for quality signal termination and low EMI. SFI typically operates over 200mm of improved FR4 material or up to about 150mm of standard FR4 with one connector.

• 10GBASE-LR at 10.3125Gbps
• Other optical transmission systems

• Supports from 1.25Gb to 11.3Gbps bit rates
• Electrical interface compliant to SFF-8431
• Hot Pluggable SFP+ footprint
• 1310nm DFB transmitter, PIN photo-detector
