Cambium Networks Indoor Tri-band Wi-Fi 7 6GHz Access Point US
- SKU: X7-35X-0A00-US
$795.00
- Manufacturer: Cambium Networks
- Data Sheet: Download
Product Information
The Cambium Networks X7-35X Wi-Fi 7 Indoor Access Point (AP) is designed to deliver cutting-edge performance and flexibility at a price point suitable for any market. Power your network with the latest Wi-Fi technology without breaking the bank.

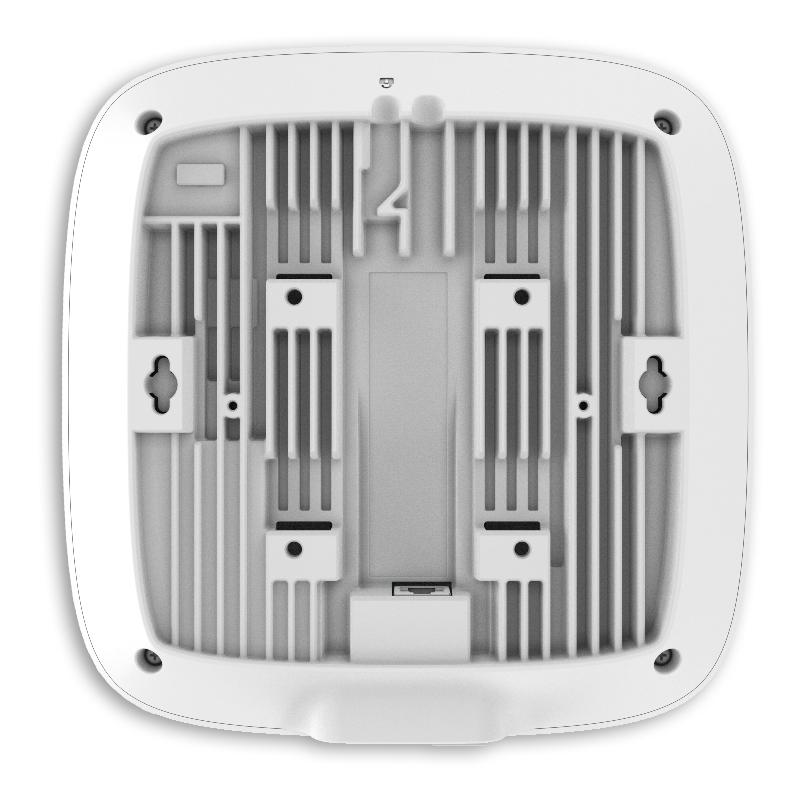

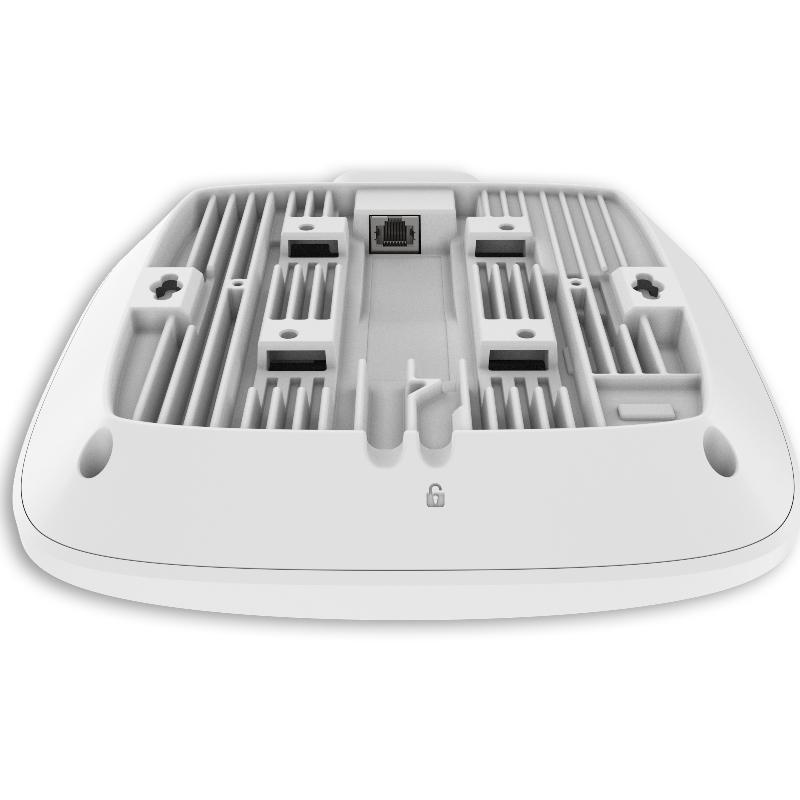

The X7-35X Wi-Fi 7 AP streamlines installation, saving you time and money. Its multi-functional mounting system easily installs the access point over multiple telecom and electrical junction boxes, on a suspended drop ceiling system, or to any flat surface. The recessed Ethernet port and trim mounting bracket enable an aesthetically pleasing installation and final finish. The new Wi-Fi 7 junction box bracket is backward compatible with the XV3-8 and XE3-4.
X7-35X operates using Cambium’s cnMaestro Network Management, which is accessible on both cloud and on-premises platforms. Aligned with Cambium’s ONE Network, cnMaestro facilitates the management of all devices through a user-friendly interface, streamlining control from backhaul to edge devices. This lets you start managing your network immediately, reducing training and troubleshooting time.
Gain real-time insights into network health and troubleshoot client issues efficiently using AI-based analytics to move from reactive to proactive SLA management. Note: cnMaestro X Assurance is available with cnMaestro X Cloud.
Product Features
- Tri-radio/tri-band Wi-Fi 7
- 6GHz (2x2), 5 GHz (2x2), 2.4 GHz (2x2)
- 9.2Gbps aggregate data rate
- 2.5GbE uplink port
- LPI (low power indoor) mode
- Managed by cnMaestro
- BLE/Zigbee/Thread/Matter IOT radio
- Limited lifetime warranty
Specifications
Specifications X7-35X-0A00-US
| Radios | 2.4 GHz 2x2:2 with 802.11 b/g/n/ax/be 5 GHz 2x2:2 with 802.11 a/n/ac/ax/be 6 GHz 2x2:2 with 802.11 ax/be | |
| BLE and Zigbee | Built-in BLE or 802.15.4 radio Max Transmit power 20 dBm with the integrated 5 dBi omnidirectional antenna gain *Matter and Thread support (*Will be supported in future releases) | |
| Supported data rates | 802.11be: 7.3 to 5765 Mbps 802.11ax: 7.3 to 2402 Mbps 802.11ac: 6.5 to 1733 Mbps 802.11n: 6.5 to 300 Mbps 802.11a/g and a: 6 to 54 Mbps 802.11b: 1 to 11 Mbps | |
| Max PHY Rate | 2.4 GHz: 574 Mbps 5 GHz: 2882 Mbps 6 GHz: 5765 Mbps | |
| Antenna | Omnidirectional internal antennas (Peak gain) 2.4 GHz: 5 dBi 5 GHz: 6 dBi 6 GHz: 6 dBi BLE and Zigbee: 5 dBi | |
| Maximum Radio Tx Power* (combined Tx power across all Tx chains) | 2.4 GHz: 24 dBm, max EIRP: 29 dBm 5 GHz: 25 dBm, max EIRP: 31 dBm 6 GHz: 25 dBm, max EIRP: 31 dBm | |
| MIMO Support | 2x2 (2.4 GHz, 5 GHz, and 6 GHz) SU-MIMO 2x2 (2.4 GHz, 5 GHz, and 6 GHz) MU-MIMO both in UL and DL direction | |
| USB Interface | 1 USB 2.0 type A port, max 1.5 W power supply | |
| Ethernet Interface | 1 100 Mbps/ 1 Gbps / 2.5 Gbps PoE port | |
| Power | Max power consumption 25.5W (802.3at) Typical power consumption with BLE / 802.15.4 radio enabled: 10.6W LLDP power negotiation support | |
| Dimensions | 209.6 mm x 209.6 mm x 45 mm 8.25 in x 8.25 in x 1.77 in | |
| Weight | Weight: 935 gm (2.06 lb) | |
| Mount Options | Drop ceiling T-bar, ceiling tile, 4"" square electrical box, 4"" round box, NA single gang box, EU single gang box, wall mount | |
| Physical Security | Kensington lock slot | |
| LEDs | Multicolor status LED Blue: Managed from cnMaestro Green: Up and running, not managed from cnMaestro Amber: Booting | |
| Ambient Operation Temperature | 0ºC - + 50ºC | |
| Storage Temperature | -20ºC - + 70ºC | |
| Operating Humidity | 95% RH non-condensing | |
| Reliability | MTBF 8,29,316 hours at +25ºC operating temperature | |
| Device Management | cnMaestro Cloud / On-Premises management (version 5.1 and above) Standalone operation mode Web access with HTTPs / HTTP protocol CLI access with SSH / telnet protocols | |
| Certifications (Compliance) | FCC, IC, CE E 60601-1-2 EN 60950-1 IEC 62368-1 Safety EN 60601-1-2 Medical EMC EN 61000-4-2/3/5 Immunity UL 2043 Plenum | |
| Network Specifications | ||
| Security & Authentication | Open, WPA, WPA2-PSK AES WPA2-ePSK / WPA2-Enterprise WPA3-PSK (WPA3-SAE) / WPA3-ePSK / Enterprise / Enterprise-CNSA / OWE (Enhanced Open) OSEN and PMF (802.11 W) MAC authentication with local database or external database using RADIUS protocol EAP-TLS / TTLS / PEAP / SIM / AKA Hotspot WEB authentication | |
| Fast Roaming Support | PMK, OKC, and 802.11r for fast layer 2 roaming Seamless L2 roaming for wireless and guest clients across APs in the same L2 network cnMaestro-assisted roaming for the guest clients | |
| Wi-Fi Quality of Service | WMM (packet marking either with 802.1p or IP DSCP), WMM-PS, U-APSD Multicast to unicast conversion | |
| MESH Support | Auto-discovery and self-healing Wireless MESH support on 2.4 GHz, 5 GHz, and 6 GHz band MESH and Client SSIDs can co-exist on the same radio interface | |
| SSID | 16 SSIDs per radio, 48 SSIDs per AP SSID scheduling | |
| Client Capacity | 256 clients per radio, 768 clients per AP Max client connections limit per SSID / radio / device | |
| Band Steering | Yes | |
| Sticky Client Management | Option to disconnect the client on minimum SNR threshold | |
| Rate Limit | Per SSID / MAC | |
| Dynamic RF Channel and Power Management | Auto-Channel selection Auto-RF dynamic channel switch based on channel utilization and Wi-Fi / non-Wi-Fi interferences Auto-RF dynamic power adjustment with the neighboring APs transmit power | |
| WIDS and WIPS | Wireless packets flood (excessive association, authentication, de-authentication, disassociation, and EAP) detection Rogue AP, Honeypot AP detection and termination | |
| Wireless Users Policy Management | Standard Radius, Accounting, WISPr, and Cambium VSA attributes support COA Messages (disconnect, VLAN ID, session, etc.) support User groups with RADIUS assigned filter rules | |
| Wireless Devices Policy Management | Device grouping based on device fingerprinting with L2, L3, L4, and L7 access control rules | |
| Network Specifications, continued | ||
| Radius and Accounting Support | Per SSID based RADIUS and accounting server Accounting interval with start, stop, and interim messages with standard / Cambium VSA accounting attributes Up to 3 RADIUS and accounting server with failover and load balancing option Dynamic authorization and disconnect using COA messages | |
| VLAN Assignment | Per SSID based 802.1q VLAN tagging Dynamic VLAN assignment from external RADIUS server Local VLAN pool Radius assigned VLAN pool ePSK assigned VLAN ID | |
| ACL and Application Control Rules | Per SSID or device level, layer 2, 3 (IPv4 and IPv6), 4 and 7 access control rules with packet marking option Application recognition, packet marking, rate limiting, and option to drop and deny application / application category Per SSID DNS ACL option Define custom application based on IP address and monitor/control custom application traffic | |
| Connection Logging | Per SSID basis option to log TCP, UDP and IP connection, and DNS query NAT logging to external syslog servers | |
| IP Support | IPv4 and IPv6 | |
| Tunneling Protocols | WWAN, PPPoE, L2TPv2, L2GRE, & *VXLAN (*Will be supported in future releases) | |
| SNMP and Syslogs Support | SNMP v2 and v3 get operational mode Syslog messages to external syslog server | |
| DHCP Client and Server | Option to enable DHCP client on L3 VLAN interface On-board DHCP server with multiple DHCP pool options | |
| Analytics and location Service | Option to integrate Wi-Fi and BLE radios scan results with an external location analytics server through HTTP/HTTPs post | |
| Client Connection and Life Cycle Analytics (available with cnMaestro X Cloud) | Exhaustive client life cycle analytics with root cause analysis Connection success and failure analytics | |
| Guest Access Service (EasyPass) (X Features are available on cnMaestro X) | cnMaestro hosted captive portal service Multiple authentication methods supported to on-board guest user Radius based authentication Click through with simple terms and conditions acceptance Social login using Google®, Facebook®, Twitter® (aka, X), and Office 365® SMS based authentication (X) Voucher based access Microsoft® Azure AD and Google Workspace® (X) Sponsored guest access (X) Self-registration access (X) | |
| Services | L2–L7 application visibility & control, Wi-Fi calling control, WIDS/WIPS, NTP, Syslog, SNMP traps, DNS proxy, auto-off on WAN failure, Open roaming (Will be supported in future releases) | |
| API | RESTful management and statistics API presence location APIs | |
| Standards | ||
| Wi-Fi Protocols | 802.11 b: BPSK, QPSK, CCK 802.11 a/g/n: BPSK, QPSK, 16-QAM, 64-QAM 802.11 ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM 802.11 ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM and 1024-QAM 802.11be: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM, 4096-QAM 20/40/80/160/320 MHz, DSSS, OFDM, OFDMA, MIMO, MU-MIMO | |
| Multi-link operation (MLO), Multi Resource Units Target Wait Time (TWT), BSS Coloring, Transmit beamforming (TxBF) 802.11n/ac packet aggregation: A-MPDU, A-MSDU Maximum ratio combining (MRC), Cyclic delay/shift diversity (CDD/CSD), Space-time block coding (STBC), Low-density parity check (LDPC) Passpoint 3.0 | ||
| IEEE 802.11 b/g/n/ac/ax/be/d/h/i/k/r/u/w | ||
| Regulatory Information | ||
| Frequency Bands | 2.412 to 2.484 GHz ISM 5.150 to 5.250 GHz U-NII-1 5.250 to 5.350 GHz U-NII-2A 5.470 to 5.725 GHz U-NII-2C 5.725 to 5.850 GHz U-NII-3 | 5.925 to 6.425 GHz U-NII-5 6.425 to 6.525 GHz U-NII-6 6.525 to 6.875 GHz U-NII-7 6.875 to 7.125 GHz U-NII-8 |
| Channels List | 2.4 GHz channels: 1 to 13 5 GHz channels: 36 to 64, 100 to 144 and 149 to 165 6 GHz channels: 1 to 233 | |
