Product Information

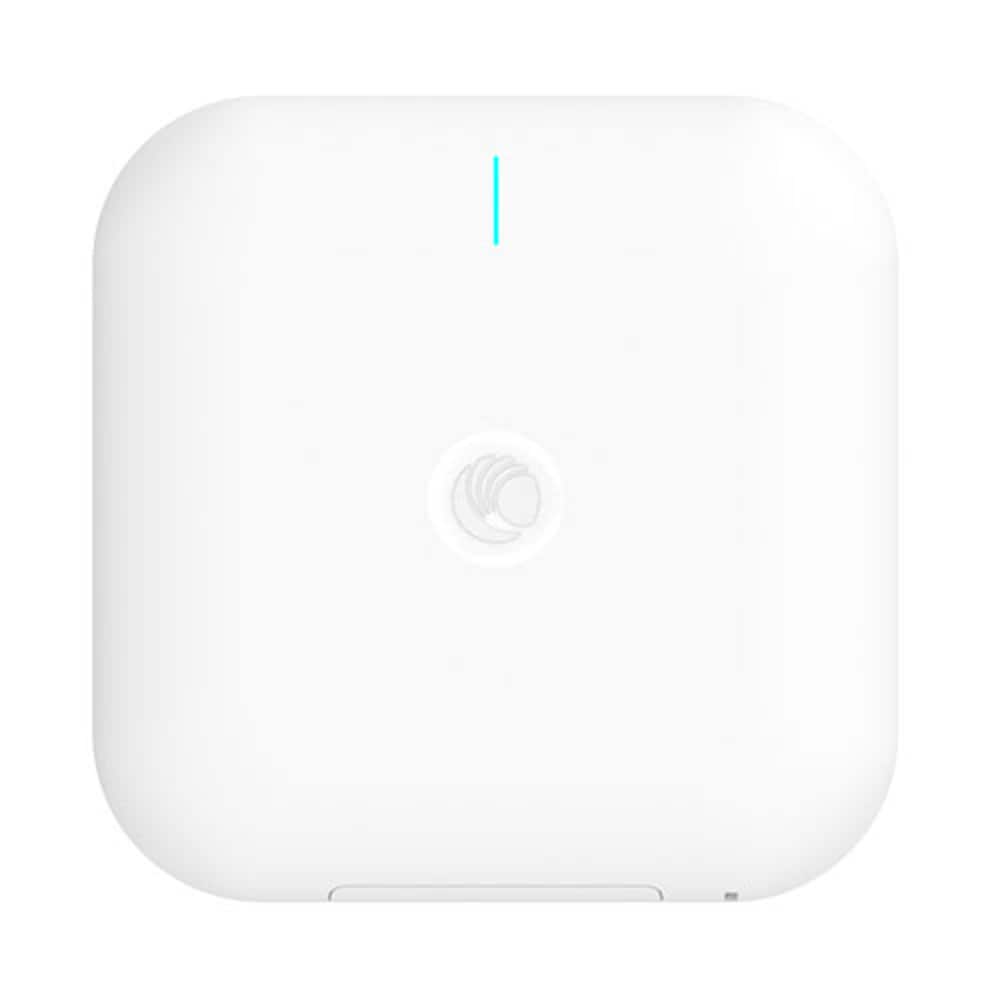

The XV3-8 features a total of five (5) radios to deliver a nextgeneration network with edge services with high capacity and high density. Three data radios can be configured as two 5GHz 4x4 plus one 2.4GHz 4x4, or the two 5GHz radios can be combined into a single 5 GHz 8x8 radio with the maximum power and performance of the 802.11ax standard. A dedicated network scanning radio provides continuous network monitoring to enhance security protocols, detailed network reports, and automatic RF optimizations. Add the Bluetooth Smart 4.1 IoT radio for BLE-based location services and you get a multi-radio, highcapacity Wi-Fi 6 AP designed for the most demanding networks in enterprise, education, retail, and public venues.
XV3-8 comes with Limited Lifetime Warranty providing return and repair service on the access point from date of purchase until end of life of the product.
Product Features- High-density Wi-Fi with software-defined radios (SDR)
- Five-radio architecture for edge services
- Optimized Wi-Fi for dominant client devices
- Features multi-color status LEDs
- Max power with USB/BLE, 35W (802.3bt)

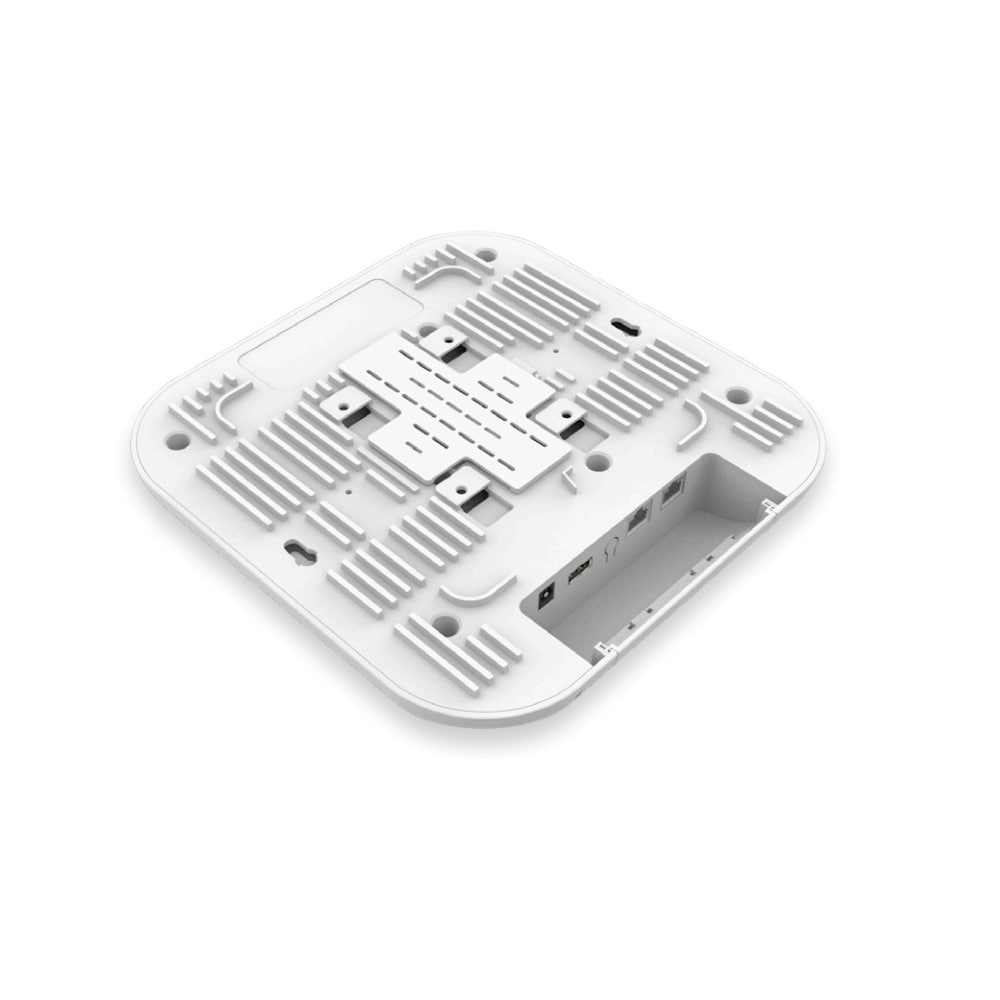

- Mount Options: Wall or ceiling, T-bar with included locking bracket, ceiling tile plate
- Weight: 1,250g (2.76lbs)
Specifications
Specifications XV3-8X00A00-US
| FCC | Ch 1-11, 36-48, 52-64, 100-144, 149-165 |
| ISED | Ch 1-11, 36-48, 52-64, 100-144, 149-165 |
| ETSI | Ch 1-13, 32-48, 52-64, 100-144 |
| ROW | (Individual country limits may apply) Ch 1-14, 36-48, 52-64, 100-144, 149-165 |
| Radios | 2.4 GHz: 802.11 b/g/n/ax, 4x4 5 GHz: 802.11 a/n/ac Wave 2/ax, 8x8 (or configure as two 4x4) 2.4/5 GHz scan, 1x1 BLE 4.1 |
| Wi-Fi | 802.11 a/b/g/n/ac Wave 2/ax |
| SSID Security | WPA3, WPA2 (CCMP, AES, 802.11i), WPA2 Enterprise (802.1x/EAP), WPA PSK (TKIP), Open |
| Max PHY Rate | 2.4 GHz: 1,147 Mbps 5 GHz: 4,804 Mbps |
| Ports | 1 x IEEE 802.3 10/100/1000 Mbps 1 x IEEE 802.3bz 100/1000/2500/5000 Mbps Auto sensing MDIX 1 x USB 3.0 |
| Antenna | 2.4 GHz: 5 dBi 5 GHz: 6.7dBi 2.4/5 GHz: sensor 5 dBi / 6.3 dBi BLE 5 dBi |
| Max EIRP | 2.4 GHz: 31 dBm 5 GHz: 36 dBm |
| Power | Max power with USB/BLE, 35 W (802.3bt) 802.3at mode with USB/BT disabled 12 VDC power, 2.1 mm (.083 in) barrel connector |
| Dimensions | 235 mm x 235 mm x 42 mm (9.25 in x 9.25 in x 1.65 in) |
| Weight | 1,250 g (2.76 lbs) |
| Security | Kensington lock slot |
| LEDs | Multi-color status LEDs |
| Ambient Operating Temperature | 0ºC to 50ºC (32ºF to 122ºF) |
| Storage Temperature | -20ºC to 70ºC (-4ºF to 158ºF) Humidity 95% RH non-condensing |
| Mount Options | Wall or ceiling, T-bar with included locking bracket, ceiling tile plate |
| Certifications (Compliance) | Wi-Fi Alliance 802.11 a/b/g/n/ac/ax, PP2.0, FCC, IC, CE, EN 60601-1-2, EN 60950-1, IEC 62368-1 Safety, EN 60601-1-2 Medical, EN 61000-4-2/3/5 Immunity, EN 50121-1 Railway EMC, EN 50121-4 Railway Immunity, IEC 61373 Railway Shock & Vibration, UL 2043 Plenum, EN 62311 Human Safety/RF Exposure, WEEE & RoHS |
