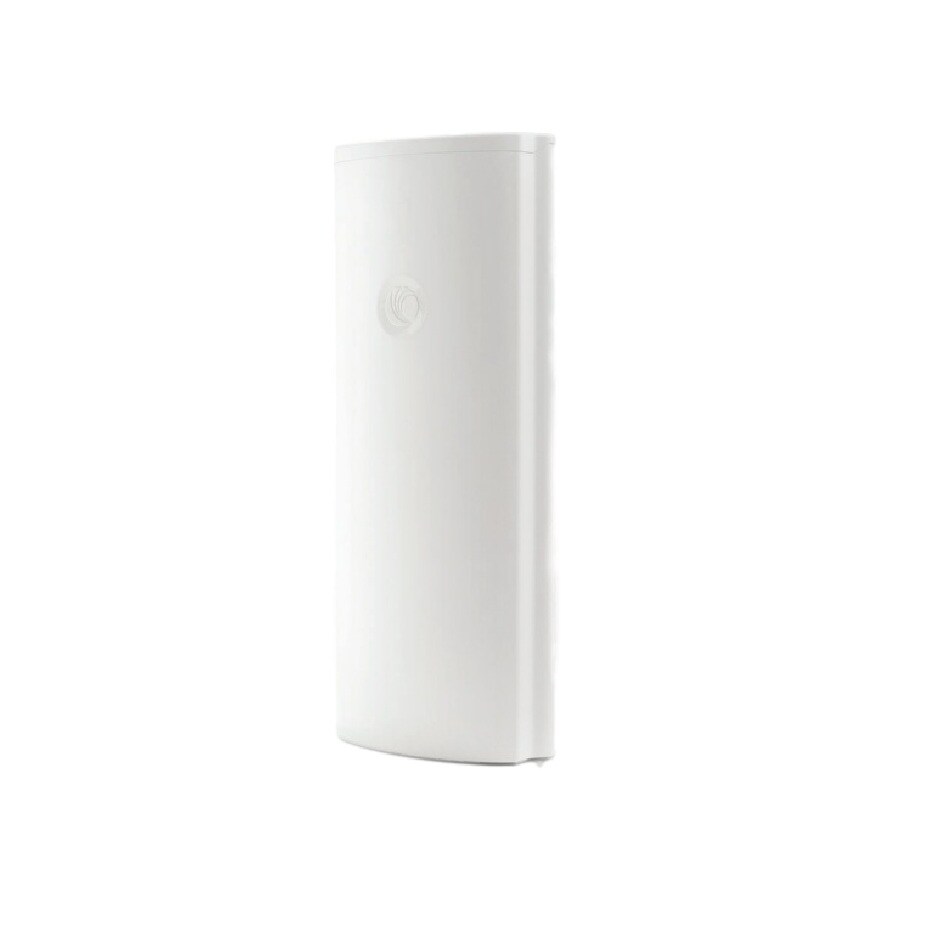

Cambium Networks ePMP 3000 4x4 MU-MIMO Sector Antenna
- SKU: C050910D301A-T
$399.00
+ $17.96 Tariff
- Manufacturer: Cambium Networks
- Data Sheet: Download
Product Information
Cambium Networks ePMP 3000 4x4 MU-MIMO Sector Antenna, an integral part of the ePMP 3000 Access Point, is designed to work in 5GHz spectrum and 90degree coverage and allows for Multi-User MIMO (MU-MIMO )Operation.
Key Deployment Advantages- Frequency Re-use: Designed for ABAB channel re-use (two channels covering four sectors), the sector antenna has a minimum 30dB front-to-back ratio over a wide rear-facing aperture.
- Channel Flexibility: Consistent gain from 4.9 to 6.0GHz allows the operator to select a channel anywhere in the band and achieve the expected performance.
- Consistent Coverage: Excellent null fill capabilities of the antenna allow for broad geographical coverage within a sector, even near the base of the tower and the edges of the sector.
- Designed for the Installer: Small, compact design, integrated ePMP radio mount, and GPS antenna integration.
- Predictable Performance: The sector antenna is integrated into Cambium Networks LINKPlanner. The 3D model shows coverage at all elevations and across the azimuth.
- 17dBi gain
- 4.9 to 5.97GHz spectrum
- 30dBi front-to-back ratio
- IP65 ruggedization
Specifications
Specifications C050910D301A
| Frequency Range | 4.9 GHz to 5.97 GHz |
| Gain | 17 dBi |
| 3 dB Beamwidth - Azimuth | 70 degrees |
| 3 dB Beamwidth - Elevation | 6 degrees |
| Electrical Downtilt | -2 degrees |
| Polarization | 2X Horizontal, 2X Vertical |
| Port-to-Port Isolation | > 20 dB |
| Front-to-Back Ratio | 30 dB |
| Maximum Input Power | 5 W |
| Input Impedance | 50 ohms |
| Mounting Connectors | 4 x RP SMA |
| Mounting Hardware | Included for mounting to mast diameters 2” to 4” (5 cm to 10 cm) -10 to +5 degree tilt Hardware included to connect ePMP access point to back of antenna body |
| Physical Dimensions | Antenna Body: 23.4” (H) x 9.6” (W) x 3.25” (D) (594 mm x 157 mm x 110 mm) |
| Weight | Antenna Body: 8.0 lbs, 3.7 kg w/ ePMP 3000 Access Point and Mounting Brackets: 13.8 lbs. 6.3 kg |
| Environmental | IP65 |
| Radome Material | UV Protected ABS |
| Operating Temp | -400C to 600C (-400F to 1400F) |
