Clearfield FS-DEO-T-214-PS-1250F
- SKU: FS-DEO-T-214-PS-1250F
$769.36
- Manufacturer: Clearfield
- Data Sheet: Download
Product Information

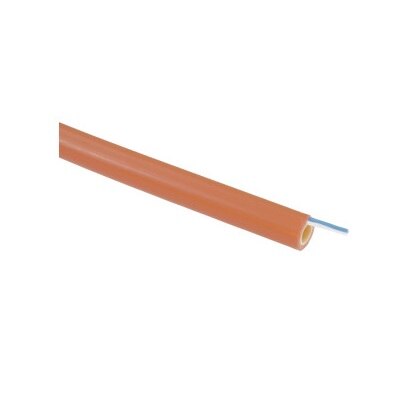

Fieldshield Microduct, 14/10Mm, Direct Bury, Orange Oversheathed Toneable, W/Pull String, 1250Ft (381 Meters)
Specifications
Specifications FS-DEO-T-214-PS-1250F
| Length Non-toneable | 1,500 feet (457.20 m) per spool; Toneable: 1,250 feet (381.00 m) per spool |
| Outside Diameter Non-toneable | 0.551” (14.00 mm); Toneable: 0.66” (16.76 mm) |
| Inside Diameter | 0.390" (9.91 mm) |
| Wall Thickness | 0.079" (2.01 mm) |
| Slip Layer Minimum | 0.004" (0.102 mm) |
| Ovality | ≤ 5% |
| Installation Tension | Non-toneable: 264 lbf; Toneable: 346 lbf |
| Bend-Radius Non-toneable | 8” (203.20 mm) radius minimum; Toneable: 10” (254.00 mm) radius minimum |
| Material | High Density Polyethylene (HDPE) |
| Operating Temperature | -40°F to 176°F (-40°C to 80°C) |
| Installation Temperature | -14°F to 158°F (-26°C to 70°C) |
| Color | Orange |
| Tone Wire | Insulated Stranded Copper |
| Tone Wire Diameter | 0.032” (0.813 mm) / 20 AWG |
| Markings | Part number, lot number, footage markers every two feet (609.60 mm) |
| Spool Size | 12” ID x 24” OD x 20” W (304.80 mm x 609.60 mm x 508.00 mm) |
| Weight | Non-toneable: 72 lb (32.66 kg); Toneable: 95 lbs (43.09 kg) |
