Clearfield SeeChange Terminal MPO IN 4-Port Drop MPO Express OUT

(0)No Reviews yet
  • SKU: SCT-M5-04C-085
$282.28
  • Manufacturer: Clearfield
  • Data Sheet: Download
  • Clearfield Seechange Terminal Installation Manual: Download

Out of Stock

 Open chat or call us for stock status
This item is currently offered at a discounted price. Kindly note that it is not eligible for return or exchange

Product Information

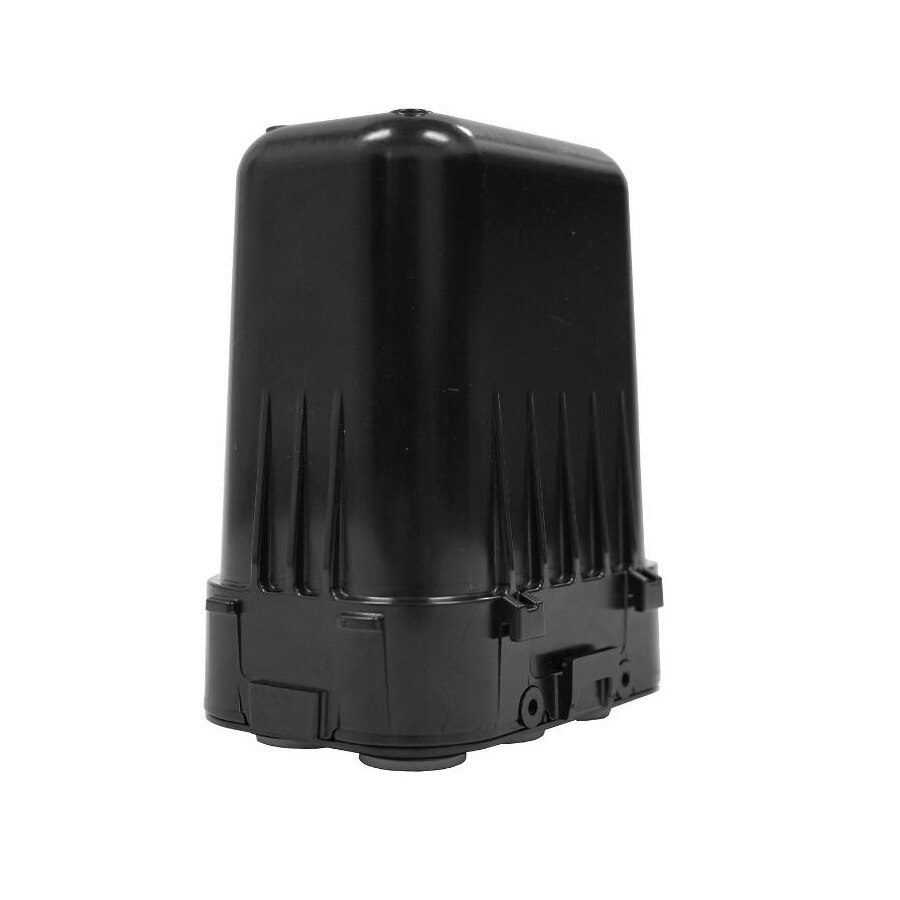

The Clearfield SeeChange Terminal is Clearfield’s small, carrier-grade plug-and-play access terminal for FTTx applications, including Fiber to Home and Fiber to Business. Its small size makes it an attractive choice to deliver fiber to cell towers and inside 5G decorative poles. The terminal interfaces incoming feeder fiber and single fiber drop cables.

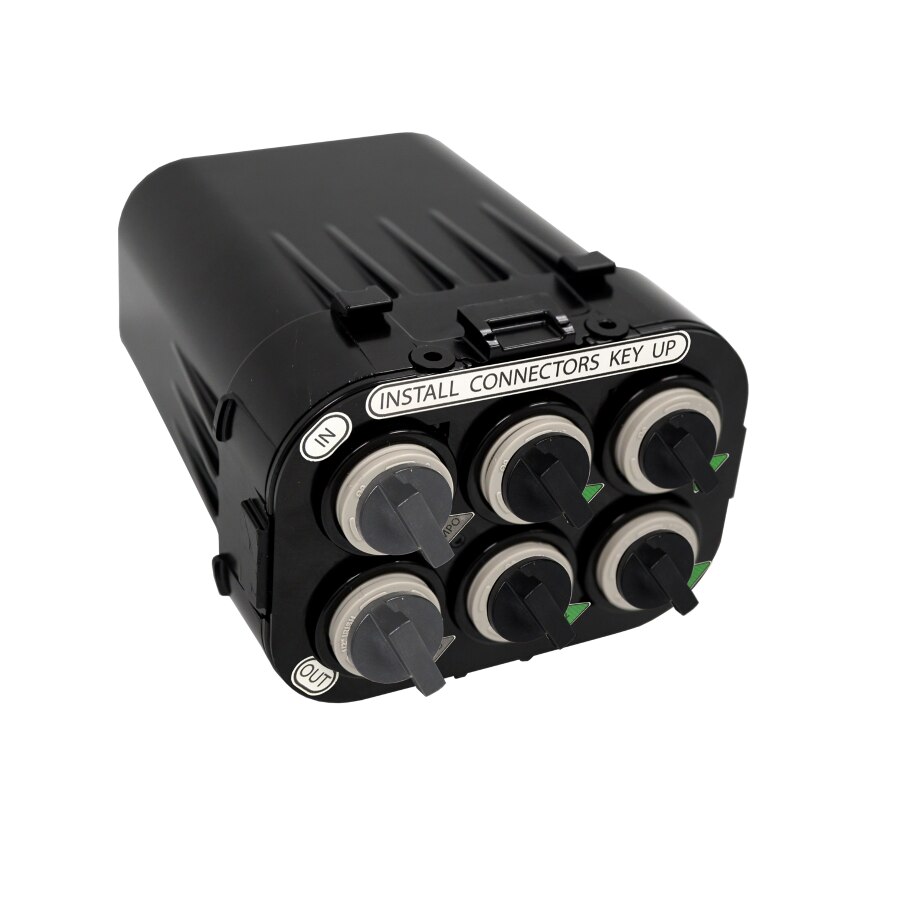

The Clearfield SeeChange Terminal is fully sealed and includes a multifiber MPO input port, 2 or 4 single fiber drop ports, and a multifiber MPO express output port. The MPO express output port is used to daisy chain to other SeeChange terminals deeper in the neighborhood. All connections to the terminal are made using SeeChange hardened connectors that can be installed with entry-level technicians for quick deployment.

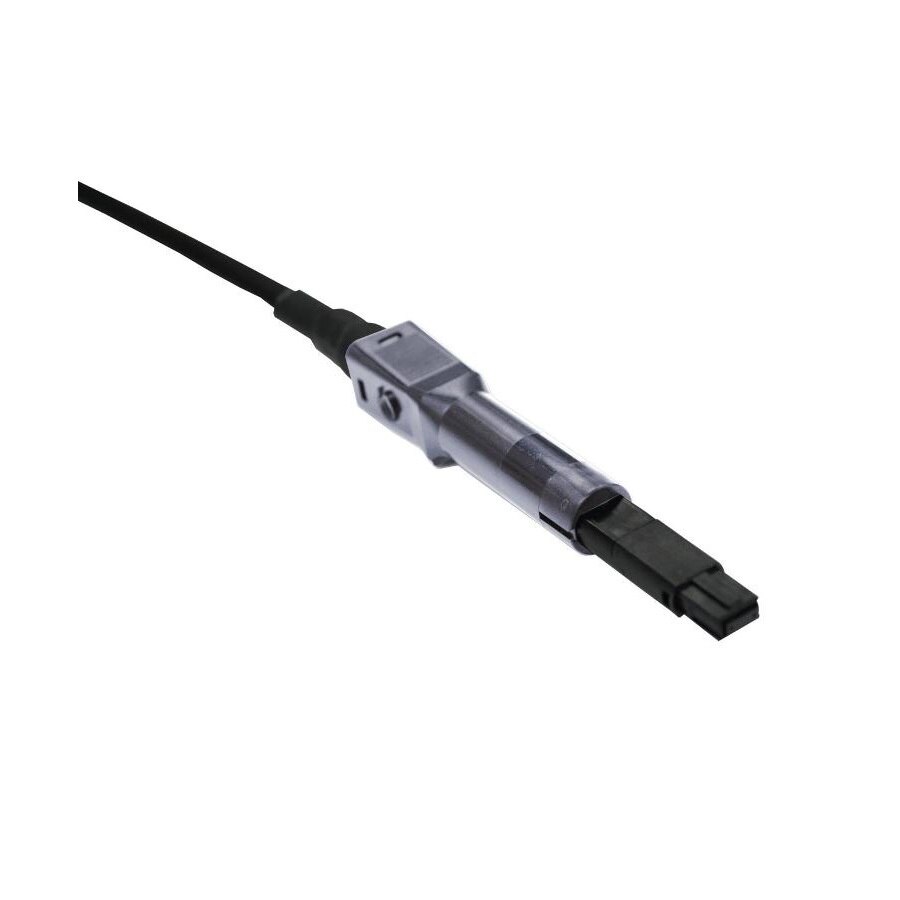

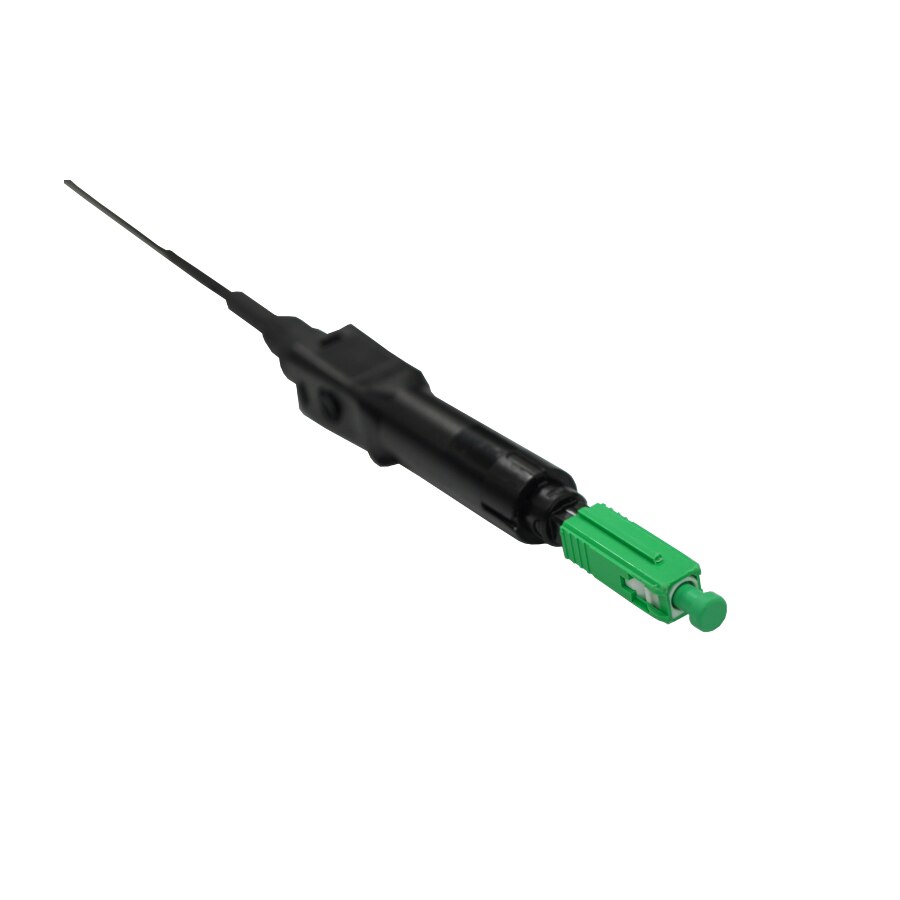

Clearfield SeeChange hardened connectors are ruggedized for OSP applications and meet Clearfield’s FiberDeep performance levels for low insertion loss (0.2dB max IL for single fiber and 0.35dB max IL for MPO assemblies). Both centralized split and distributed split configurations are supported by the SeeChange Terminal. The terminal can be deployed below grade in vaults, handholes, and flower pots, as well as above grade in pedestals or on a pole, and can be hung overhead on a strand for aerial applications.

Specifications

Specifications

Weight 13.3 ounces ( 0.83 lb)
Dimension3 x 4 x 5.5” (83.8mm x 111.8mm x 139.7mm)
Mounting OptionsBelow Grade: handhole or flowerpot, Above Grade: Pole or Pedestal with mounting bracket, Aerial: Strand mount with Deltec strap and spacers
MaterialBlack UV resistant Thermoplastic
Input Port(1) SeeChange 14 mm MPO
Drop Ports(2) or (4) SeeChange 14 mm SC/APC
Output Express Port(1) SeeChange 14 mm MPO
