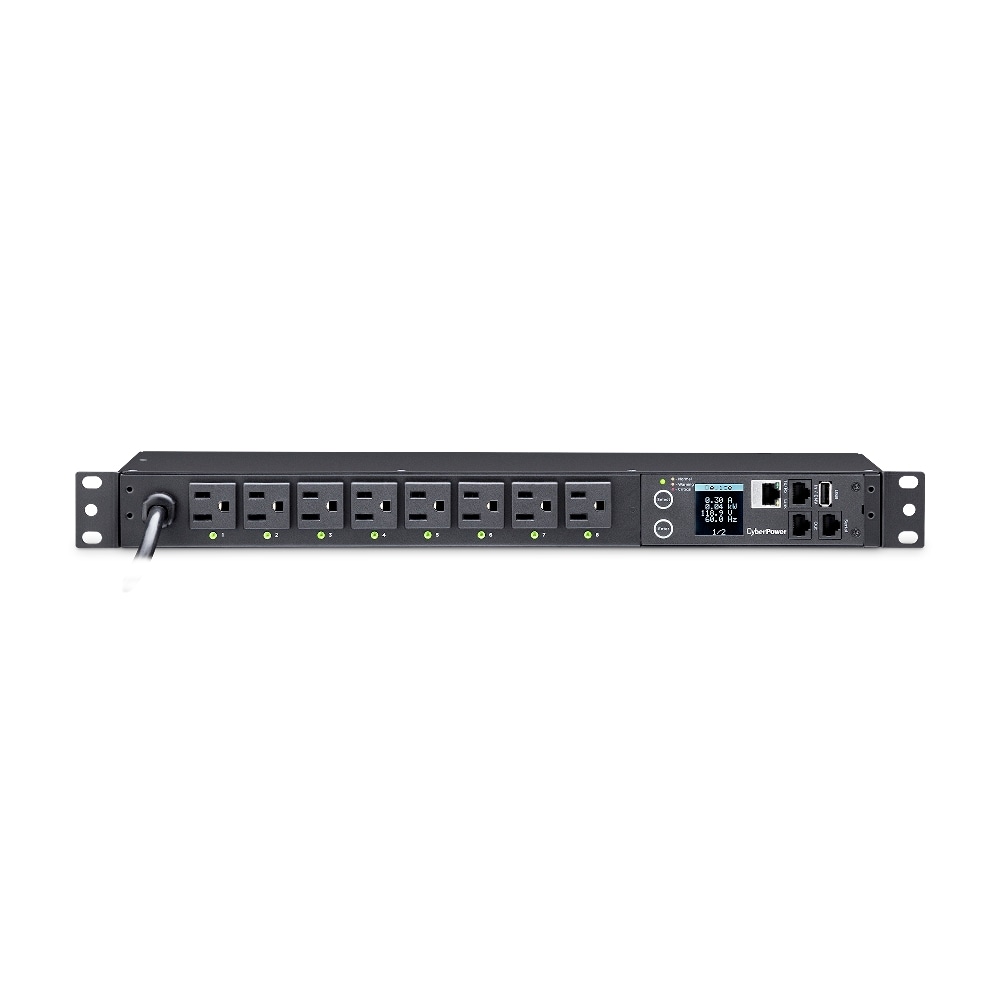

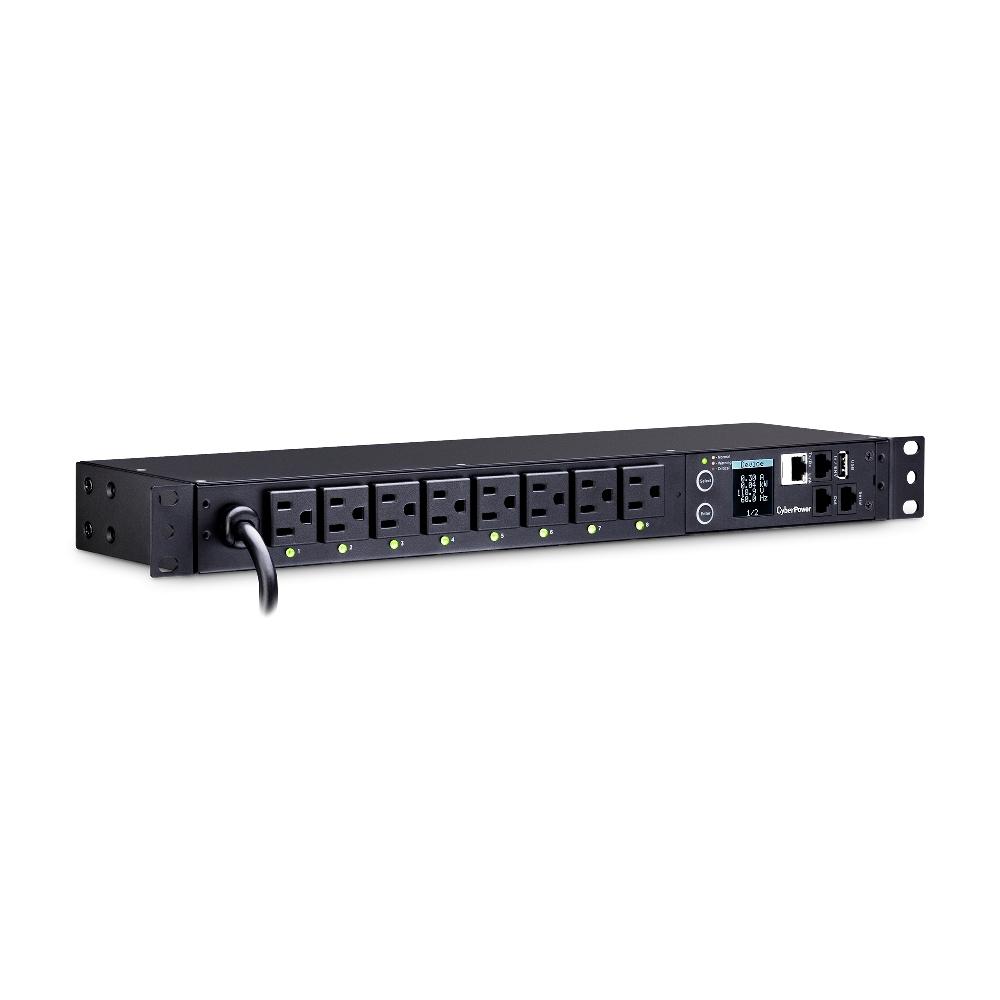

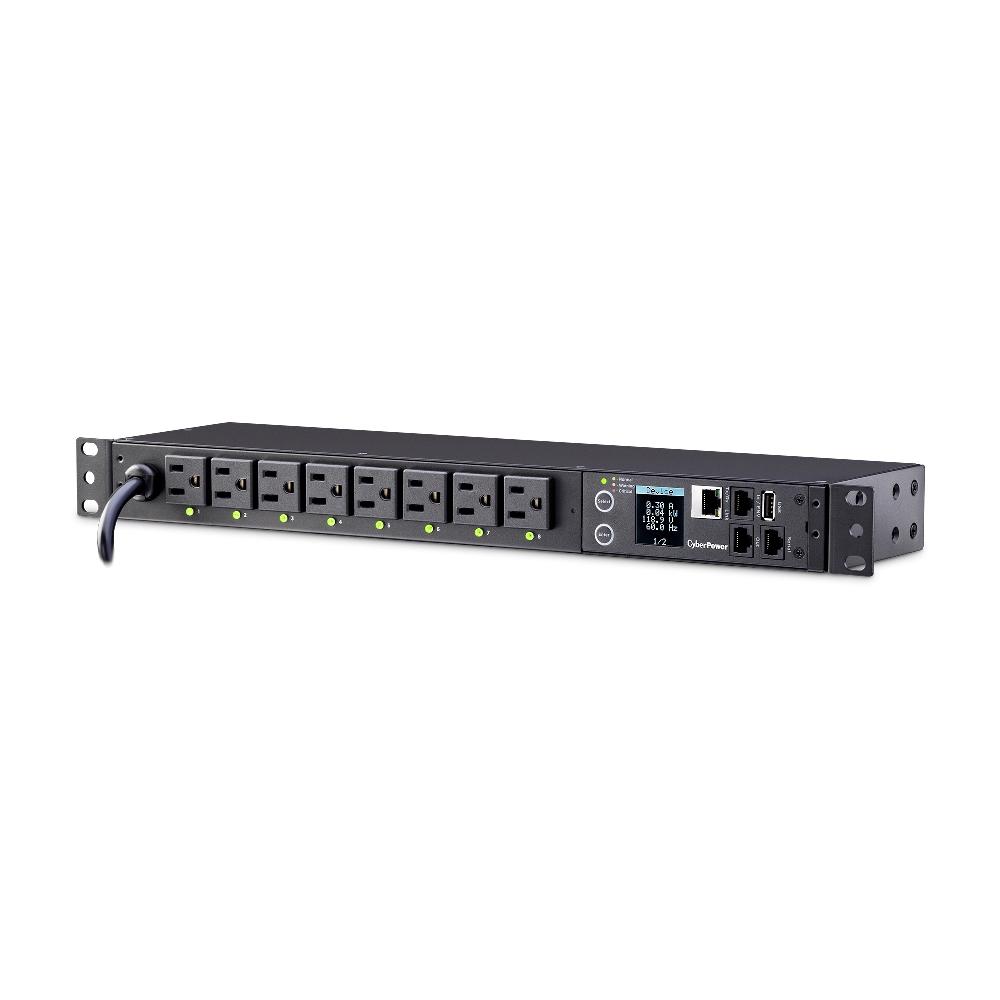

CyberPower PDU41001
- SKU: PDU41001
$676.92
Product Information
Switched PDU Series
Specifications
Specifications PDU41001
| Type | Switched |
| Phase | Single Phase |
| INPUT | |
| Nominal Input Voltage | 100-120Vac |
| Input Frequency | 50Hz/60Hz |
| Maximum Input Current | 15A (Derated to 12A) |
| Plug Type | NEMA 5-15P |
| Cord Length (ft.) | 12 |
| OUTPUT | |
| Outlet Type | NEMA 5-15P |
| Number of Outlets | 8 |
| Circuit Quantity | 1 |
| Overload Protection (Each Bank) | None |
| Meter Readout | Power Control Display |
| MANAGEMENT & COMMUNICATIONS | |
| Outlet switching | Yes |
| Monitoring Level | Input, Per Circuit |
| SNMP / HTTP Remote Monitoring | IPv4, TCP/IP, UDP, SNMPv1, HTTP, NTP, DNS, Telnet, DHCP, SMTP, FTP, IPv6, SNMPv3, HTTPs, SSH, SSL, TLS, LDAP(S), RADIUS, Syslog, Windows AD |
| Network Connection | RJ45 (Ethernet), RJ45 (COM Port) |
| Environmental Sensor | Optional, via RJ45 |
| Modular Expandability (Cascading) | Yes, up to 4, via RJ45 |
| Updateable firmware | Yes, via USB or Ethernet |
| LED Indicators | Tx/Rx, LINK, Normal/Warning/ Critial Status |
| Multifunction LCD Screen | Voltage, Frequency, Load, Current, HW/FW Version, Network information, Serial Number |
| PHYSICAL | |
| Rack Space | 1U |
| Dimensions (WxHxD) (in.) | 17.05 x 1.75 x 4.41 |
| Operating Temperature | 32 °F to 131 °F (0 °C to 55 °C) |
| Operating Humidity | 0% - 95% non-condensing |
| Maximum Operating Elevation | 11,483 ft (3,500 m) |
| CERTIFICATIONS | |
| Safety | UL 60950, FCC Class A |
| WARRANTY | |
| Product Warranty | 3 Years |
| Ext Warranty | WEXT5YR-PDU1B |
