Product Information

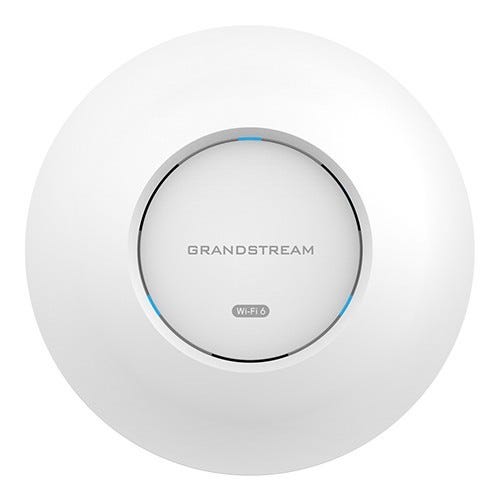

2x2 802.11 a/b/g/n/ac/ax Wi-Fi 6 Wireless AP
Specifications
Specifications GWN7660
| Wi-Fi Standards | IEEE 802.11 a/b/g/n/ac/ax |
| Antennas | 2 dual band internal antennas 2.4GHz, gain 3dBi / 5 GHz, gain 4dBi |
| Wi-Fi Data Rates | 5G: IEEE 802.11ax: 7.3 Mbps to 1201 Mbps; IEEE 802.11ac: 6.5 Mbps to 867 Mbps; IEEE 802.11n: 6.5Mbps to 300Mbps; IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps 2.4G: IEEE 802.11ax: 7.3 Mbps to 573.5 Mbps; IEEE 802.11n: 6.5Mbps to 300Mbps; IEEE 802.11b: 1, 2, 5.5, 11 Mbps; IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| Frequency Bands | 2.4GHz radio: 2400-2483.5MHz 5GHz radio: 5150-5850MHz |
| Channel Bandwidth | 2.4G: 20 and 40 MHz 5G: 20,40 and 80 MHz |
| Wi-Fi and System Security | WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES); WPA3, anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate and random default password per device |
| MIMO | 2x2:2 2.4GHz 2x2:2 5GHz |
| Coverage Range | Up to 175 meters |
| Maximum TX Power | 5G: 22dBm 2.4G: 24dBm |
| Receiver Sensitivity | 2.4G 802.11b: -96dBm@1Mbps, -88dBm@11Mbps; 802.11g: -93dBm @6Mbps, -75dBm@54Mbps; 802.11n 20MHz: -73dBm @MCS7; 802.11n 40MHz: -70dBm @MCS7; 802.11ax 20MHz: -60dBm @MCS11; 802.11ax 40MHz: -58dBm @MCS11; 5G 802.11a: -92dBm @6Mbps, -74dBm @54Mbps; 802.11n 20MHz: -73dBm @MCS7; 802.11n 40MHz: -70dBm @MCS7; 802.11ac 20MHz: -67dBm@MCS8; 802.11ac: 40MHz: -63dBm @MCS9; 802.11ac 80MHz: -59dBm @MCS9 ; 802.11ax 20MHz: -60dBm @MCS11; 802.11ax 40MHz: -58dBm @MCS11;802.11ax 80MHz: -56dBm @ MCS11 |
| SSIDs | 32 SSIDs total, 16 per radio (2.4ghz and 5 ghz) |
| Concurrent | Clients 256 |

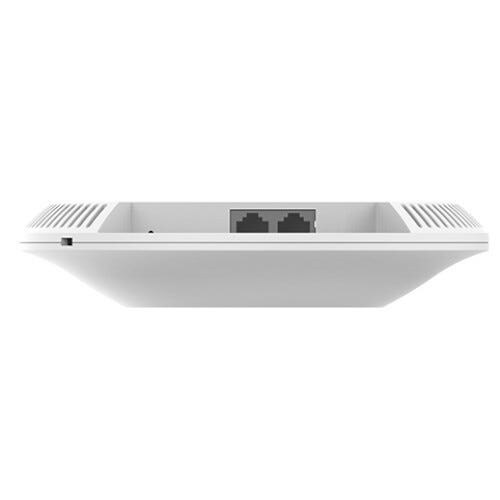

| Network Interfaces | 2x autosensing 10/100/1000 Base-T Ethernet Ports |
| Auxiliary Ports | 1x Reset Pinhole, 1x Kensington lock |

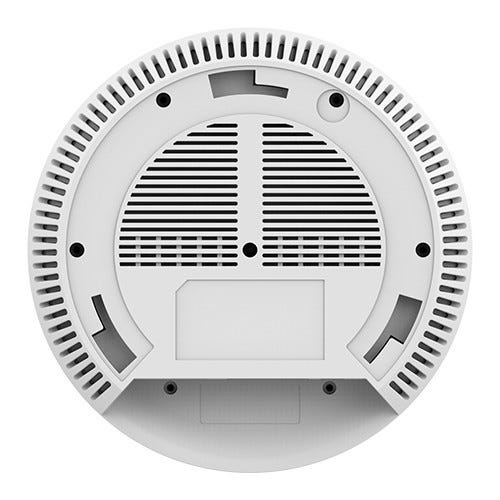

| Mounting | Indoor wall mount or ceiling mount, kits included |
| LEDs | 3 tri-color LEDs for device tracking and status indication |
| Network Protocols | IPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM |
| QoS | 802.11e/WMM, VLAN, TOS |
| Network Management | Embedded controller can manage up to 50 local GWN APs GWN.Cloud offers a free cloud management platform for unlimited GWN APs GWN Manager offers premise-based software controller for up to 3,000 GWN APs |
| Power and Green Energy Efficiency | PoE 802.3af/ 802.3at; |
| Maximum Power Consumption | 9W |
| Environmental | |
| Operation | 0°C to 45°C |
| Storage | -10°C to 60°C |
| Humidity | 10% to 90% Non-condensing |
| Physical Unit Dimension | 180.4mmx180.4mmx40.8mm; Unit Weight: 443g |
| Entire Package Dimension | 228.5 x 220 x 79 mm; 8.99" x 8.66" x 3.11" Entire Package Weight: 774g (1.70 lb) |
| Compliance | FCC, CE, RCM, IC |
