Product Information

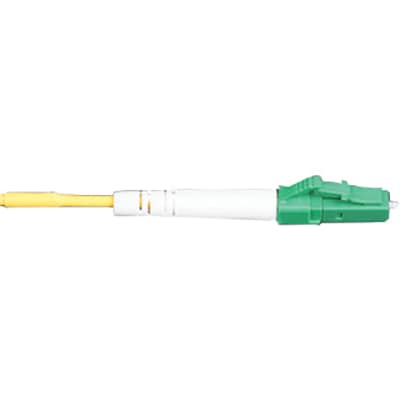

Splice On Connector, LC Simplex, SM, APC, 900 micron
Specifications
Specifications LCS-SM-APC-09
| Connector Style | LC |
| Diameter | 900um |
| Polish Type | APC |
| Repeating Operation Test | 500 Cycle, ≤ 0.2dB |
| Insertion Loss | ≤ average 0.2dB (≤ max 0.3dB) |
| Return Loss | ≥60dB |
| Temperature Range | -40°C~85°C |
| Fiber | Singlemode 9/125 |
| Tensile Strength | < 40 for 0.9mm, 0.2mm fiber |
