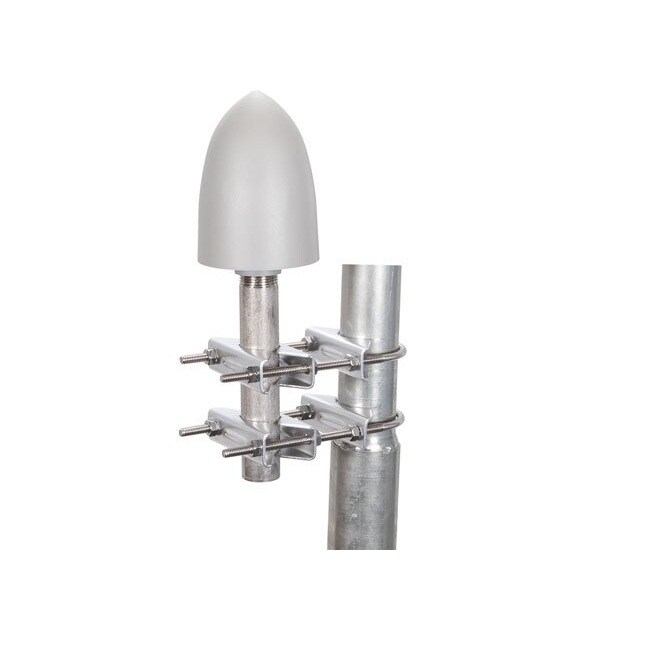

KP Performance Antennas 1.574 - 1.61 GHz, 32 dBi Timing Antenna with Mounting Kit
- SKU: KP-GPSL1-32-MNT-TF
$224.99 $249.99
- Manufacturer: KP Performance
- Data Sheet: Download
Product Information
ISP Supplies supplies the KP Performance Antennas 1.574 - 1.61 GHz, 32 dBi timing antenna with mounting kit. This antenna is a professional grade product used for advanced time and frequency system
Specifications
Specifications KP-GPSL1-32-MNT-TF
| Housing Plating/Color | Gray |
| Weight | 15 lbs. |
| Height | 4.88" |
| Base Diameter | 3.5" |
| Frequency Range | 1.574 to 1.61 GHz |
| Band Type | Single Band |
| Gain | 32 dBi |
| Radiation Pattern | Omni Directional |
| Out of Band Rejection | 70 dBi |
| Operating DC Voltage | 5.5 V |
| VSWR | 2.1 |
| Impedance | 50 dB |
| Current | 15 mA |
| Connector Type | TNC Female |
