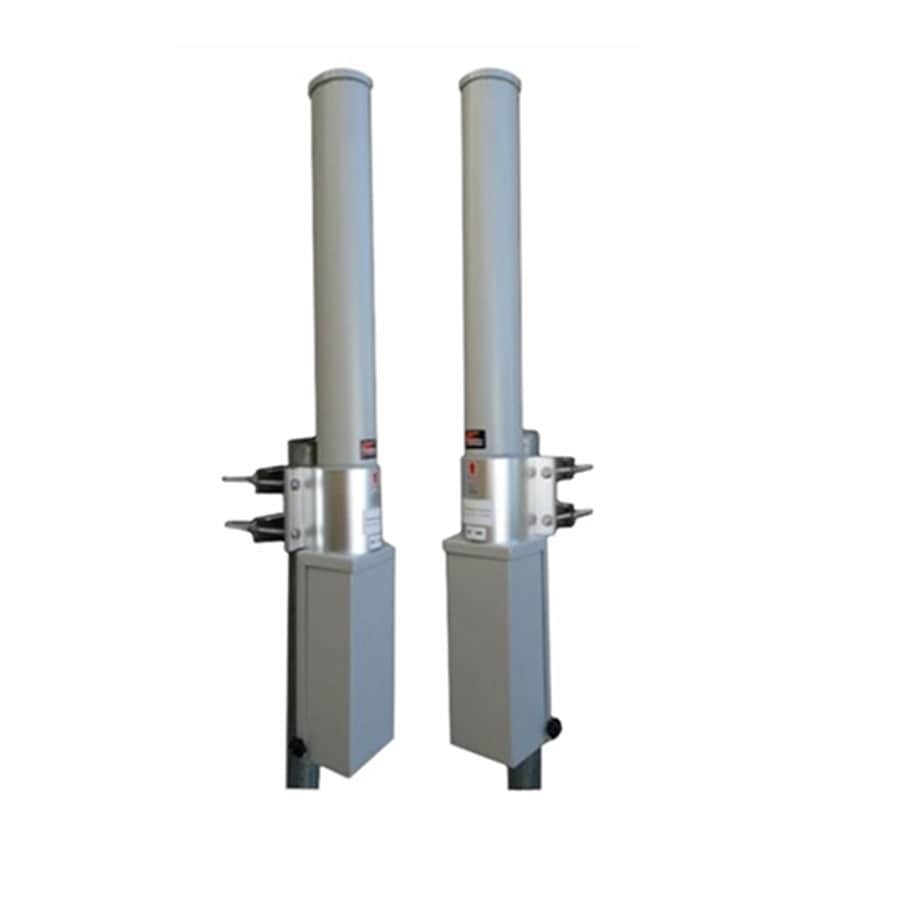

2 GHz, 13 dBi, H/V Dual Polarization Omni Antenna with Integrated Large Radio Case
- SKU: KPPA-2GHZ-DPOMA-WC-3
$296.00 $328.89
+ $63.31 Tariff
- Manufacturer: KP Performance
- Data Sheet: Download
Product Information
2 GHz, 13 dBi, H/V Dual Polarization Omni Antenna
Specifications
Specifications KPPA-2GHZ-DPOMA-WC-3
| Frequency Range | 2.3 GHz to 2.6 GHz |
| Polarization Type | Horizontal/Vertical |
| Gain | 13 dBi |
| Vertical Beamwidth | 7° |
| Horizontal Beamwidth | 360° |
| Electrical Downtilt | 1° |
| VSWR | 1.8:1 |
| Cross Polar Ratio | 20 dB |
| Port Isolation | 30 dB |
| Connector Type | 2 x Type N Female |
| Temperature | |
| Operate Range | -40 +65 deg C |
| Wind Survivability | 130 MPH (209.21 KPH) |
| Dimension | 62 in L x 8.5 in W x 7.3 in H |
| Weight | 9.9 lbs |
| Mounting Mast Diameter | 1.6 to 2.4 in |
