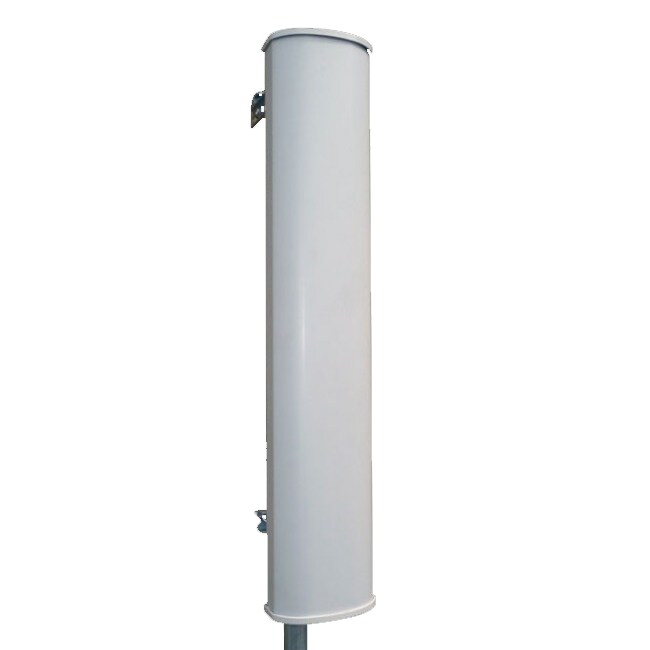

KP Performance Antennas 2 GHz, 17 dBi, 90 Degree Sector Antenna with Cambium ePMP Radio Case
- SKU: KPPA-2GHZDP90S-45-WC
$303.92 $337.69
+ $65.01 Tariff
Product Information
ISP Supplies supplies the KP Performance Antennas 2 GHz, 17 dBi, 90 degree sector antenna. The KP Performance KPPA-2GHZDP90S-45-WC is a 2 GHz, 17 dBi, 90-degree, ± 45 degree slant sector antenna with two type-N connectors. This 2 GHz sector antenna is specifically designed for customers deploying 45 degree slant radios. This sector antenna has a radio case on the back designed for mounting Cambium ePMP radios inside the enclosure. It includes two 6" SMA to N cables to connect the radio.
These sector antennas come with heavy duty mounting brackets with an easy-attach system and stainless steel hardware. These 2 GHz sectors have an exceptional F/B ratio and designed for channel reusability on towers between sectors.
Specifications
Specifications KPPA-2GHZDP90S-45-WC
| Part Number | KPPA-2GHZDP90S-45-WC |
| Frequency | 2300-2700 MHz |
| Polarization Type | ±45 degree slant |
| Gain | 17.0 dBi |
| Beamwidth H/V | 90°/7.4° |
| Electrical Downtilt | 2° |
| Cross Polar Ratio | > 23 dB |
| F/B Ratio | > 28 dB |
| V/H Port Isolation | > 31 dB |
| Input Power | 50 W max per port |
| Return Loss | > 17 dB |
| VSWR | < 1.3:1 |
| Input Impedance | 50 Ohms |
| Connector Type | Type N Female x 2 |
| Operating Temperature | 40° to +60° C / +140° F |
| Dimensions | 35 x 7 x 6” |
| Mounting pole dia | 1¼” – 3 ½” |
| Rated Wind Velocity | 160 km/h / 100 mph |
| UV Protection | UV resistant powder coat |
| Ingress Protection | IP55 rain resistant |
| Weight, Product | 12 lbs |
| Mounting Method | Carriage bolts |
| Surface Finish | Matt powder coat |
