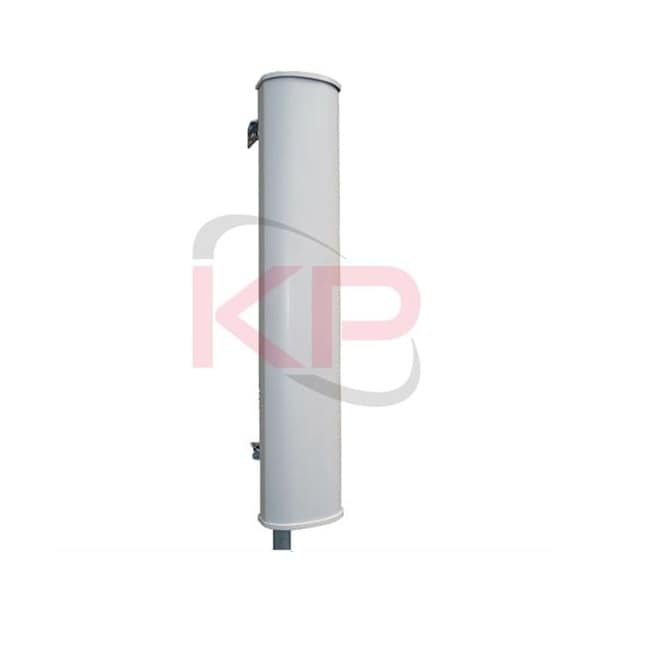

KP Performance Antennas 5 GHz, 16.3 dBi, 90 Degree Sector Antenna with Cambium PMP Mounting Bracket
- SKU: KPPA-5GHZDP90S-PMP
$242.54 $269.49
+ $51.88 Tariff
Product Information
ISP Supplies supplies the KP Performance Antennas 5 GHz, 16.3 dBi, 90 degree sector antenna. The KP Performance KPPA-5GHZDP90S-PMP is a 5 GHz, 16.3 dBi, 90 degree, H/V polarized sector antenna with two type-N connectors. This 5 GHz sector antenna is specifically designed for customers deploying 45 degree slant radios. This sector antenna has an adapter on the back specially designed for mounting a Cambium PMP radio.
These sector antennas come with heavy duty mounting brackets with an easy-attach system and stainless steel hardware. These 5 GHz sectors have an exceptional F/B ratio and designed for channel reusability on towers between sectors.
Specifications
Specifications KPPA-5GHZDP90S-PMP
| Frequency Range | 5.1 GHz to 5.9 GHz |
| Polarization Type | Horizontal/Vertical |
| Gain | 16.3 dBi |
| Vertical Beamwidth | 4.4° |
| Horizontal Beamwidth | 90° |
| Electrical Downtilt | 1° |
| F/B Ratio | 32 dB |
| VSWR | 2:01 |
| Cross Polar Ratio | 27 dB |
| Port Isolation | 33 dB |
| Connector Type | 2 x Type N Female |
