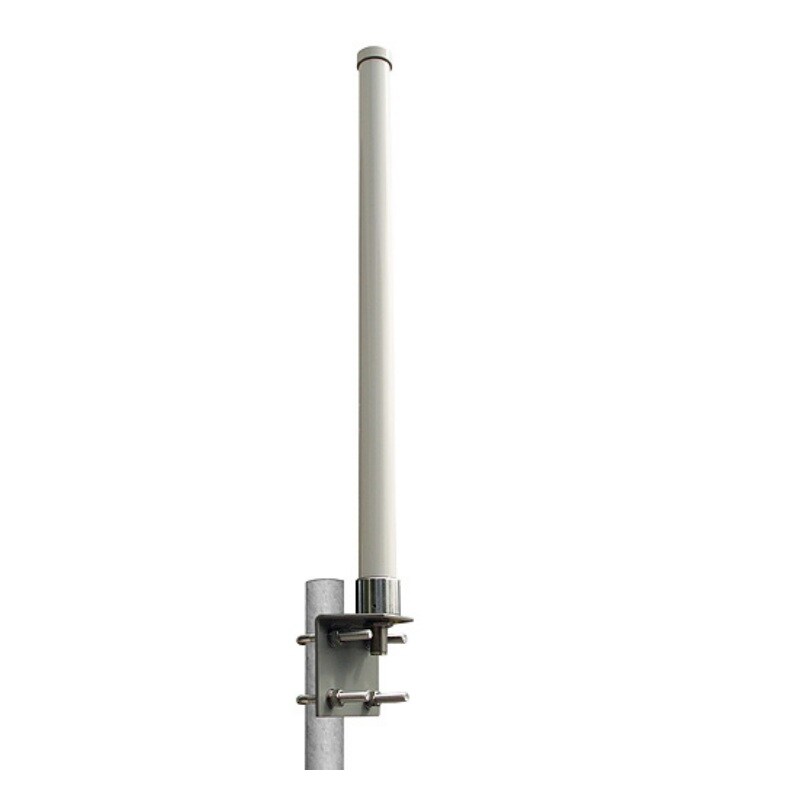

L-com 800/900 MHz 6 dBi Omnidirectional Antenna
- SKU: HGV-906U
$54.41 $134.99
Product Information
L-com 800/900 MHz 6 dBi Omnidirectional Antenna
Specifications
Specifications HGV-906U
Mechanical Specifications:
| Frequency Range | 824~960MHz |
| V.S.W.R | ≤1.5:1 avg. |
| Gain | 6dBi |
| Vertical Beam-with | 30° |
| Horizontal Beam-with | 360° |
| Impedance | 50Ohm |
| Return Loss | ≥-14db |
| Input Power | 50W |
Electrical Specifications:
| Connector | Integral N-Female |
| Length | 23.6 in. (600 mm) |
| Weight | 2.4 lbs. (1.1 Kg) |
| Diameter | 1.3 in. (33 mm) |
| Radome Material | White Fiberglass |
| Rated Wind Velocity | 108 MPH |
| Polarization | Vertical |
| Operating Themperature | -40° C to 85° C (-40° F to 185° F) |

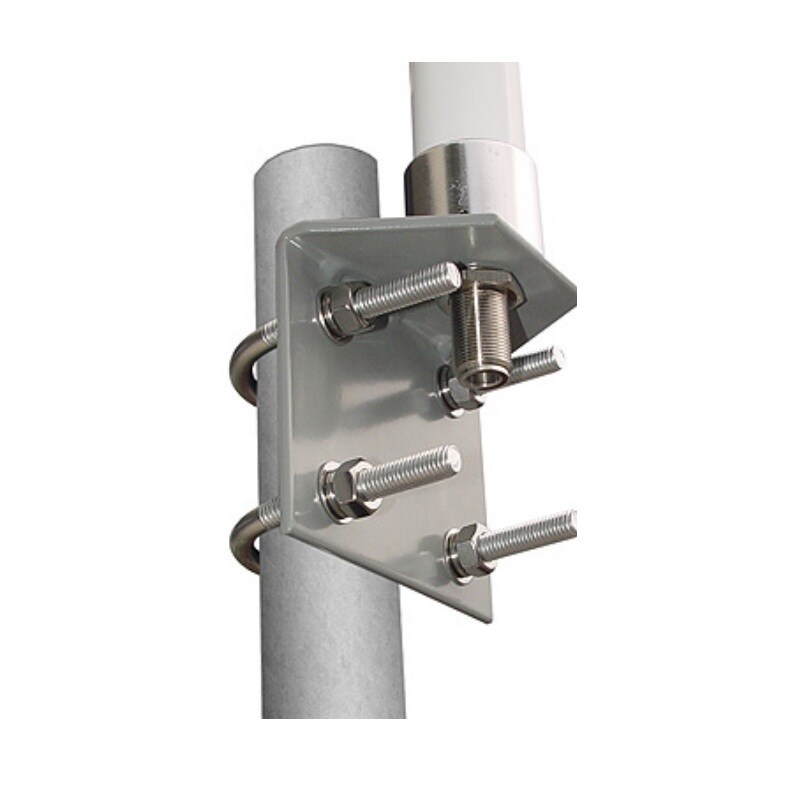

| Mounting Mast Size | 1.2 to 2 in. dia. (31.7 to 50.8 mm dia.) |
| RoHS Compliant | Yes |
