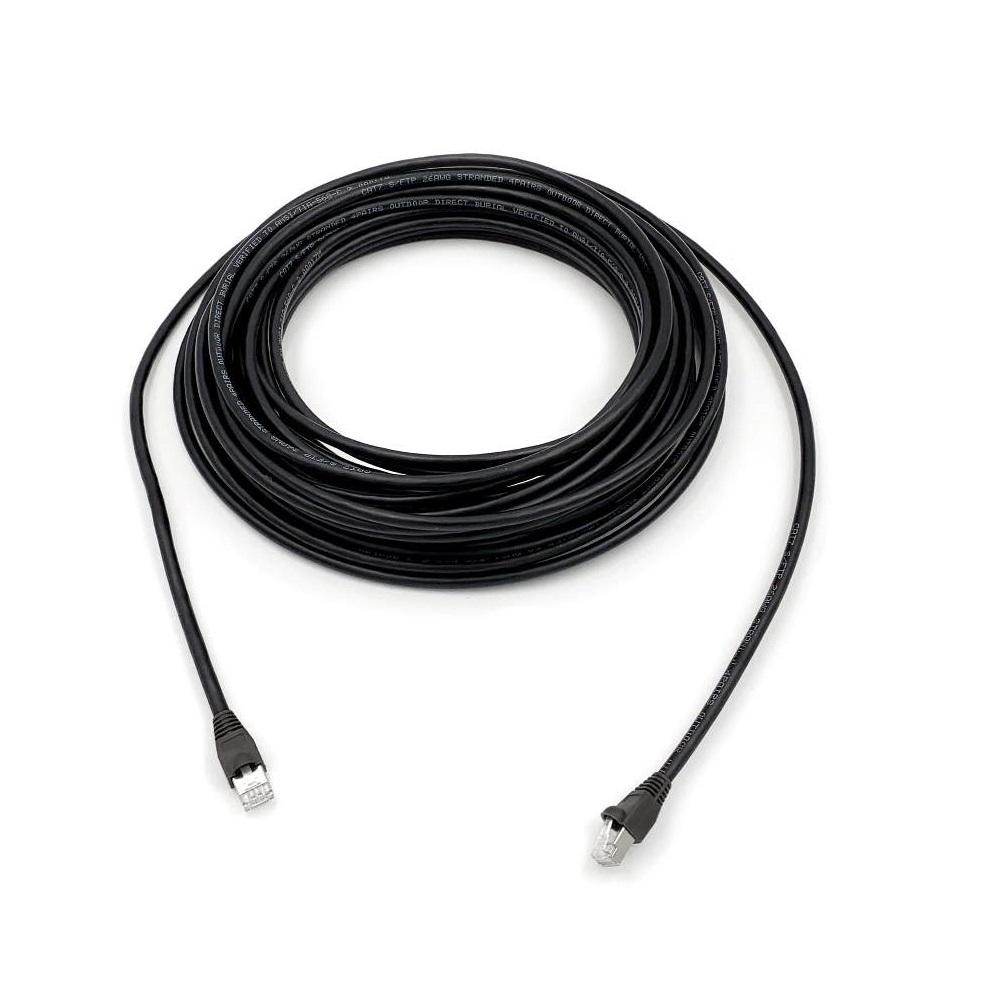

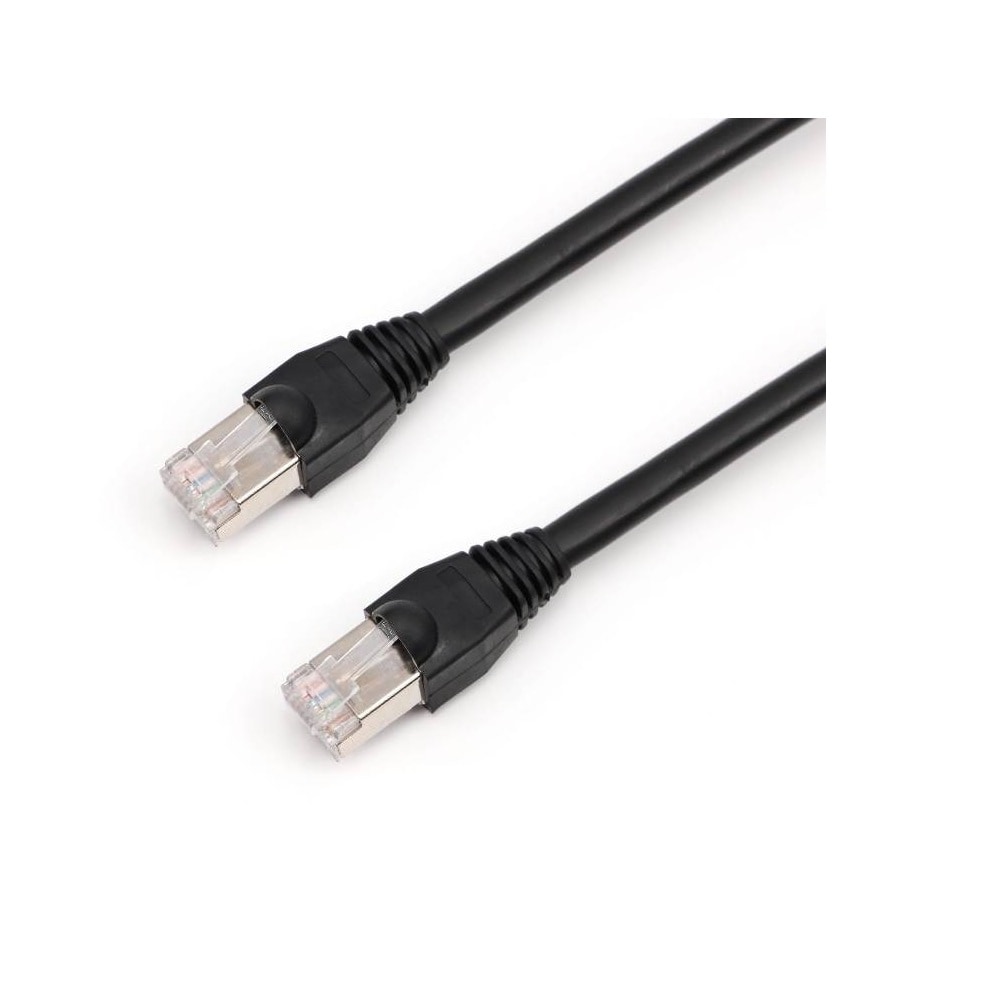

Cat7 SFTP Outdoor Patch Cables
- SKU: LSO-CAT7-SFTP-OUT
$13.25 to $52.38Select options
- Manufacturer: LightSaber Optics
- Data Sheet: Download
Product Information
Cat7 SFTP Outdoor Patch Cables
Specifications
Specifications LSO-CAT7-SFTP-OUT
| Product Type | |
| Shielding Type | Shielded (S/FTP) |
| Termination End | RJ45 Plug |
| Reference Standard | ISO/IEC 11801 |
| Conductor | |
| Conductor Type | Stranded |
| Conductor Material | Oxygen-free Copper |
| Wire Gauge (AWG) | 26 (7/0.16mm) |
| Conductor Qty. | 4 Twisted Pairs |
| Insulation | |
| Insulation Material | FOAM PE |
| Insulation Diameter (mm) | 1.01 ± 0.05 |
| Core Color | A. White-Blue, B. White-Orange, C. White-Green, D. White-Brown |
| Shield | |
| Individual Shield & Material | AL-Foil |
| Primary Overall Shield & Material | No |
| Secondary Overall Shield & Material | CCAM Braid |
| Shield Coverage | ≥40% |
| Material | PE (Complies RoHS) |
| Thickness (mm) | 0.6 |
| Outer O.D. (mm) | 6.2 ± 0.3 |
| Color | Black |
| Data Rate Support | 10GBase-T |
| Standard Bandwidth (MHz) | 600 |
| Max. DC Conductor Resistance Unbalance (%) | 5 |
| 1-600MHz, Delay Skew (ns/100m) | ≤45 |
| Max. Conductor Resistance 20℃ (Ω/1km) | 145 |
| Mechanical Characteristics | |
| Outer Jacket Tensile Strength (Mpa) | ≥19 |
| Outer Jacket Elongation (%) | ≥350 |
| Aging Period (℃×hrs) | 100℃×96h |
| After Aging Tensile Strength (Mpa) | ≥15.2 |
| After Aging Elongation (%) | ≥175 |
| Cold Bend (-20±2℃×4h) | No Visible Cracks |
| Min. Bend Radius (cm) | 4.34 ± 0.2 |
| Surface Printing | |
| Letter Height (mm) | 3.0 ± 0.3 |
| Color | Black |
| Others | |
| Rip Cord No | No |
| Drain Wire No | No |
