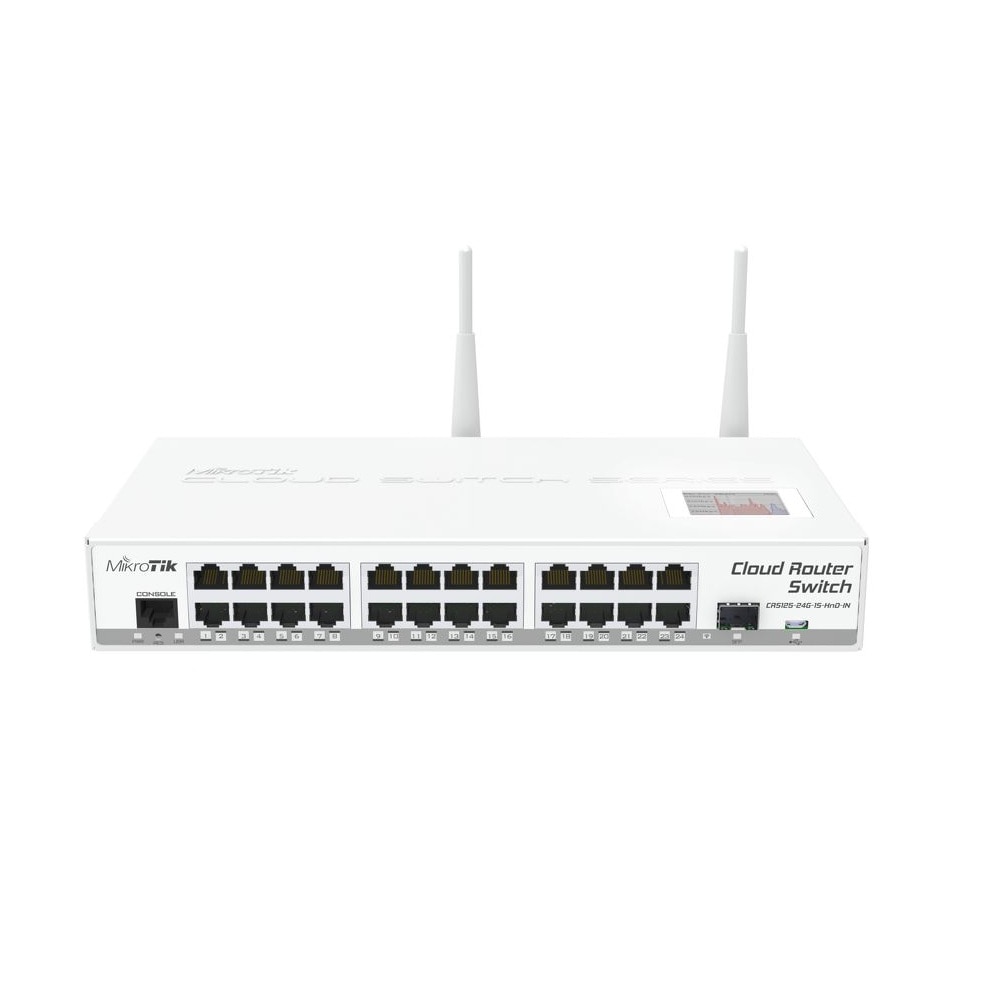

MikroTik CRS125-24G-1S-2HnD-IN Cloud Router 24 Gigabit port L3 Switch
- SKU: CRS125-24G-1S-2HnD-IN
Product Information
ISP Supplies supplies the MikroTik CRS125-24G-1S-2HnD-IN Cloud Router Switch. Cloud Router Switch is MikroTik's new Smart Switch series. It combines the best features of a fully functional router and a Layer 3 switch, is powered by the familiar RouterOS.
All the specific Switch configuration options are available in a special Switch menu, but if you want, ports can be removed from the switch configuration, and used for routing purposes. What’s more - this device has a built in 2.4GHz wireless access point, this means you can have an AP, a router with any number of ports, and a full wire speed smart switch, all in one device - ideal for medium/small businesses and offices. It has 24 Gigabit ports, one SFP cage, a microUSB port and a built in Wireless AP.
Perfect SOHO gateway router, switch, 11n AP all in one box:
• Ethernet, Fiber, or 4G (with optional USB modem) gateway connection to Internet
• RouterOS gateway/firewall/VPN router with passive cooling
• up to twenty-five gigabit switch ports (1xSFP and 24xRJ45)
• high power 2.4GHz 11n wireless AP
• Frequency range: 2412-2484MHz
Specifications
Specifications CRS125-24G-1S-2HnD-IN
| Architecture | MIPSBE |
| CPU | AR9344 |
| CPU core count | 1 |
| CPU nominal frequency | 600 MHz |
| Dimensions | 285x145x45mm |
| License level | 5 |
| Operating System | RouterOS |
| Size of RAM | 128 MB |
| Storage size | 128 MB |
| Storage type | NAND |
| Tested ambient temperature | -35C to +65C tested |
| Max Power consumption | 19W |
| PoE in | Passive PoE |
| 802.3af support | yes |
| PoE in input Voltage | 8-28 V |
| Number of DC inputs | 2 (DC jack, PoE-IN) |
| DC jack input Voltage | 8-28 V |
| Wireless 2.4 GHz number of chains | 2 |
| Wireless 2.4 GHz standards | 802.11b/g/n |
| Antenna gain dBi for 2.4 GHz | 4 |
| Wireless 2.4 GHz chip model | AR9344 |
| 10/100/1000 Ethernet ports | 24 |
| SFP DDMI | yes |
| SFP ports | 1 |
| Serial port | RJ45 |
| Number of USB ports | 1 |
| USB Power Reset | Yes |
| USB slot type | microUSB type AB |
| Max USB current (A) | 1 |
