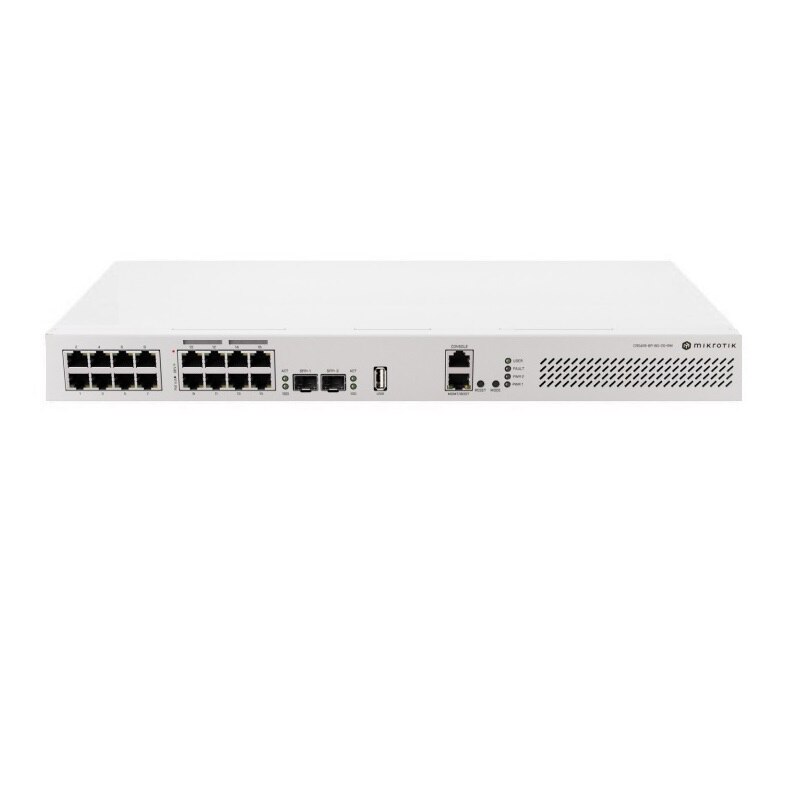

MikroTik Cloud Router Switch 418-8P-8G-2S+RM with RouterOS L5, Rackmount Case
- SKU: CRS418-8P-8G-2S+RM
$435.53 $449.00
- Manufacturer: MikroTik
- Data Sheet: Download
Product Information
This MikroTik Cloud Router is a versatile 1U rackmount switch designed for demanding network environments, combining powerful PoE power, high-speed connectivity, and Layer 3 functionality in a single device. It offers a total of 17 Gigabit Ethernet ports (8 of which support PoE-out), 2x 10G SFP+ ports, USB 3.0, and a dedicated management port with direct access to the CPU.
Product Features:
- 16x Gigabit Ethernet ports (8x with PoE-out support 802.3af/at and 24V passive PoE)
- 2x 10G SFP+ ports for high-speed uplink
- 1x dedicated gigabit management port
- 1x USB 3.0 Type A port for external storage or configuration
- Support for L3 hardware offloading - ideal for routing
- Powerful quad-core ARM processor IPQ-8072 (2.2 GHz)
- 1GB DDR3L RAM, 128MB NAND storage
- Redundant power supply - 2x AC input (100-240 V), total PoE power up to 150 W
- Intelligent PoE management, current limit per port, max. output 5.4 A (total)
Product Includes:
- 1x MikroTik CRS418-8P-8G-2S+RM Cloud Router Switch
- 2x Power cord
- 1x Rackmount bracket set
- 1x Fastening set
Specifications
| CPU | Quad-Core IPQ-8072 2208 MHz |
| CPU architecture | ARM 64bit |
| RAM | 1 GB, DDR3L |
| Storage | 128 MB, NAND |
| Number of 1G Ethernet ports | 17 |
| Number of 10G SFP+ ports | 2 |
| USB ports | 1 USB 3.0 type A |
| Switch chip model | 98DX226S |
| Dimensions | 443 x 230 x 44 ( 17.44" x 9.05" x 1.73" inch) |
| Operating system | RouterOS v7, License level 5 |
| Operating temperature | -20°C to +70°C |
| Powering | |
| Number of AC inputs | 2 |
| AC input range | 100-240 V |
| Nominal voltage | 55 V |
| Nominal current | 4.5 A |
| PoE-Out | 802.3af/at |
| Smart PoE | Controller |
| PoE-Out ports | Ether9 - Ether16 |
| Max out per port output (input < 30 V) | 1.1 A |
| Max out per port output (input > 30 V) | 0.55 A |
| Max total out | 5.4 A |
| Total output power, W | 150 W |
| Max power consumption (without attachments) | 28 W |
| Max power consumption | 215 W |
