MikroTik GESP Surge Protector in IP67 waterproof enclosure
- SKU: GESP
$28.13 $29.00
+ $5.00 Tariff
- Manufacturer: MikroTik
- Data Sheet: Download
Product Information

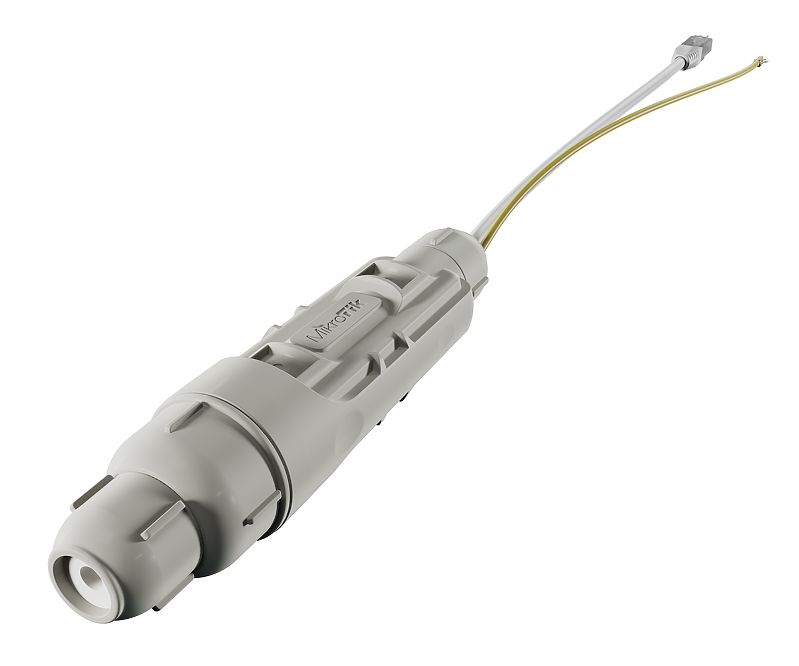

The MikroTik GESP gigabit Ethernet surge protector is in an IP67 waterproof enclosure. It can be used to protect the network from lightning or surge damage.

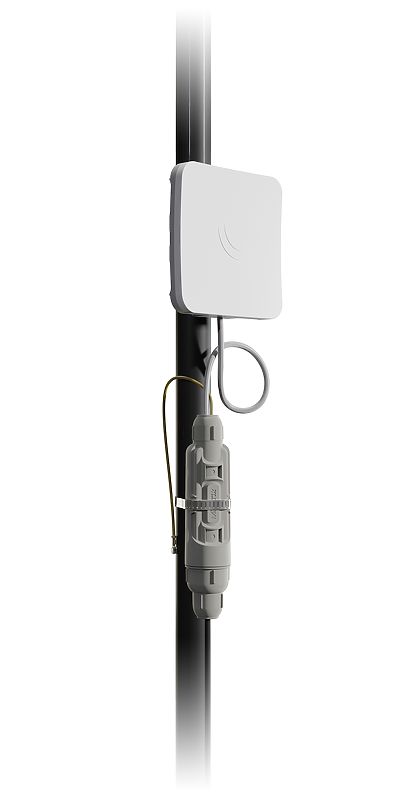

Here’s what a typical use case would be like: You have a mast with some antennas. And some switches on the ground. Put the GESP surge protectors on each end. They come sealed inside a new and improved IP67 weatherproof enclosure. Your antennas are now safe during a lightning storm.

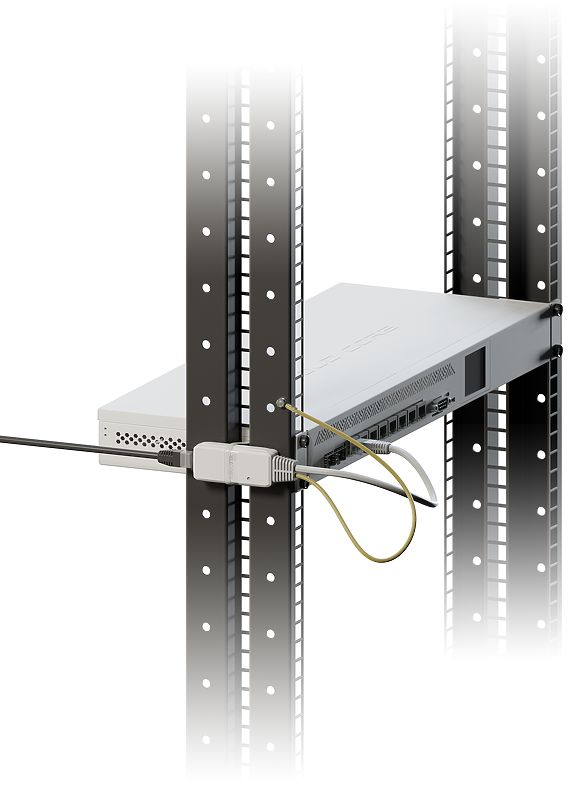

Don’t forget about the grounding wire! Secure it to the rack mount, mast, or any other structure that is grounded. For maximum protection, you should use a surge protector on both ends of long cables.
Specifications
| Interface connections | RJ45 Male/Female Connector ESD/EMP protection Absorbs transient current with response to surge voltage of 100 V/s 1 kV/μs |
| ESD, IEC 61000-4-2, ±30 kV contact, ±30 kV air | |
| DC spark-over voltage | 90 V @ 100 V/s |
| Maximum impulse spark-over voltage | 700 V @ 1 kV/μs |
| Discharge current | 5 kA (8/20μs) |
| Minimum insulation resistance | 1 G ohm @ 50V |
| Maximum capacitance | 4 pF @ 1 MHz |
| Data line protection | RJ45 10/100/1000 Ethernet |
| PoE support | Yes, IEEE 802af/at |
| Operating temperature | -40 to 70°C |
