Product Information
MikroTik Split a single 90W PoE-out into multiple 30W PoE-out ports
Effortlessly split a single high-power PoE port into multiple standard PoE connections with the compact and durable GPeR14i.
Expand, extend, and power your network with ease!
The GPeRx4 is not your average Ethernet extender. This compact, outdoor-ready device is designed to split a single 90W PoE-out port into multiple 30W PoE-out ports, providing cost-effective flexibility for powering cameras, access points, and other devices.
Power and Expand with Ease
Take advantage of your high-power PoE-out port by splitting it into three standard PoE-out connections, ideal for adding more devices without upgrading your switch.

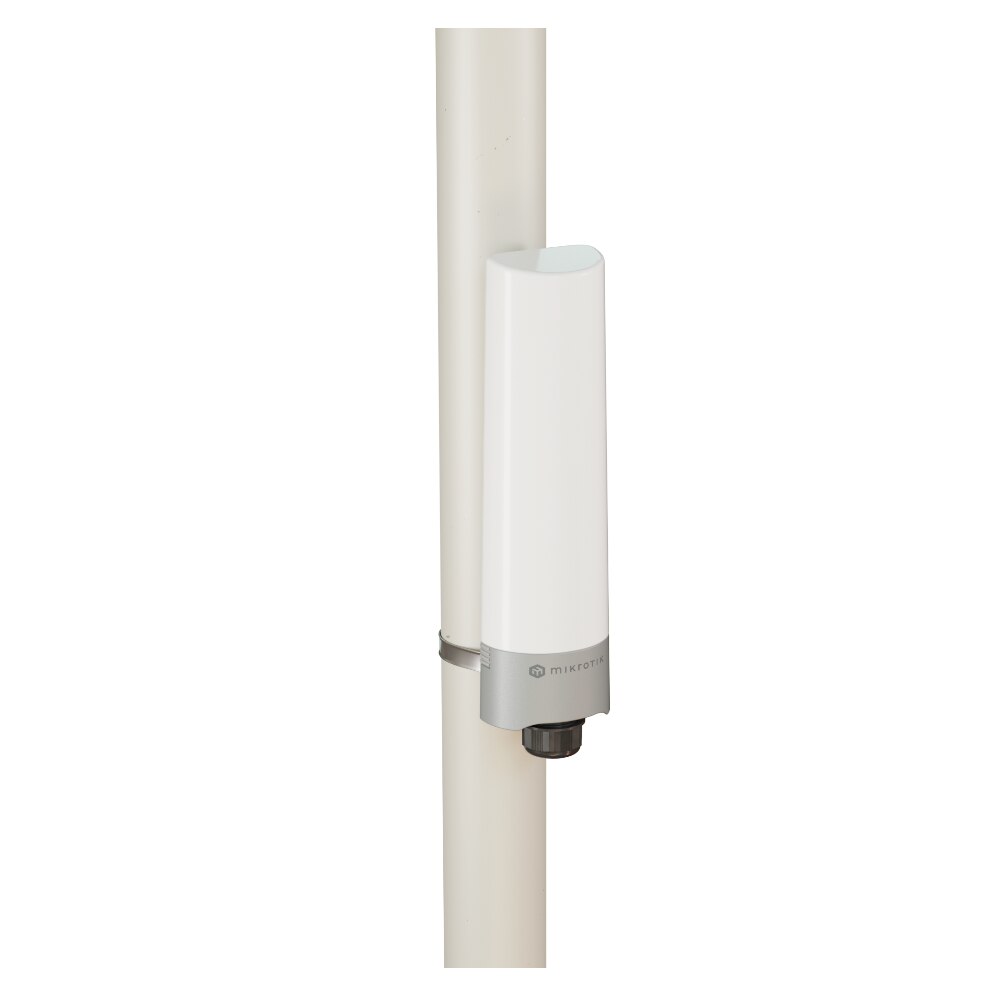

Built for Rough Conditions
Housed in a robust enclosure, the GPeRx4 can handle tough environments, making it the perfect choice for outdoor setups.
Flexible Power Options
Supports PoE-in and a 2-pin terminal, ensuring versatility for different power sources.
Advanced SwOS Lite Management
Manage your network effortlessly via Web with SwOS Lite, providing:
- Interface monitoring
- VLAN support
- Traffic shaping
- SNMP reporting
- Fault detection for GPEN links
Product Features:
- Ether #1 - PoE-In: 802.3 BT Ether #2-4 - PoE-Out: 802.3AF/AT
- Alternative Powering Option: 2-Pin Terminal
- IP68 Rating: Solid Protection from Water, Dust, Dirt, and Sand
Specifications
Specifications GPER14i
| CPU | 200 MHz |
| Storage | 16 KB, flash |
| Number of 1G Ethernet ports | 4 |
| Switch chip model | 88E6341 |
| Certification | IP68 |
| Dimensions | 281 x 76 x 70 mm 11.06" x 2.99" x 2.75" inch |
| Operating system | SwOS Lite |
| Operating temparature | -40°C to +70°C |
| Powering | |
| Number of DC inputs | 2 (PoE-In, 2-pin terminal) |
| PoE-In input Voltage | 48-57 V |
| 2-pin terminal input Voltage | 24-57 V |
| PoE-In | 802.3 bt |
| PoE-Out | 802.3af/at Ether2-Ether4 |
| Smart PoE | Controller |
| Max out per port output (input < 30 V) | 0.7 A |
| Max out per port output (input > 30 V) | 0.6 A |
| Max total out | 2.0 A |
| DC-out ports | 1 DC1, max out per port output (input > 30 V) 610 mA |
| Max power consumption (without attachments) | 4 W |
| Max power consumption | 115 W |
