Mikrotik GPS-Enabled miniPCIe LoRa Card
- SKU: R11e-LR9G
$59.00
- Manufacturer: Mikrotik
- Data Sheet: Download
Product Information

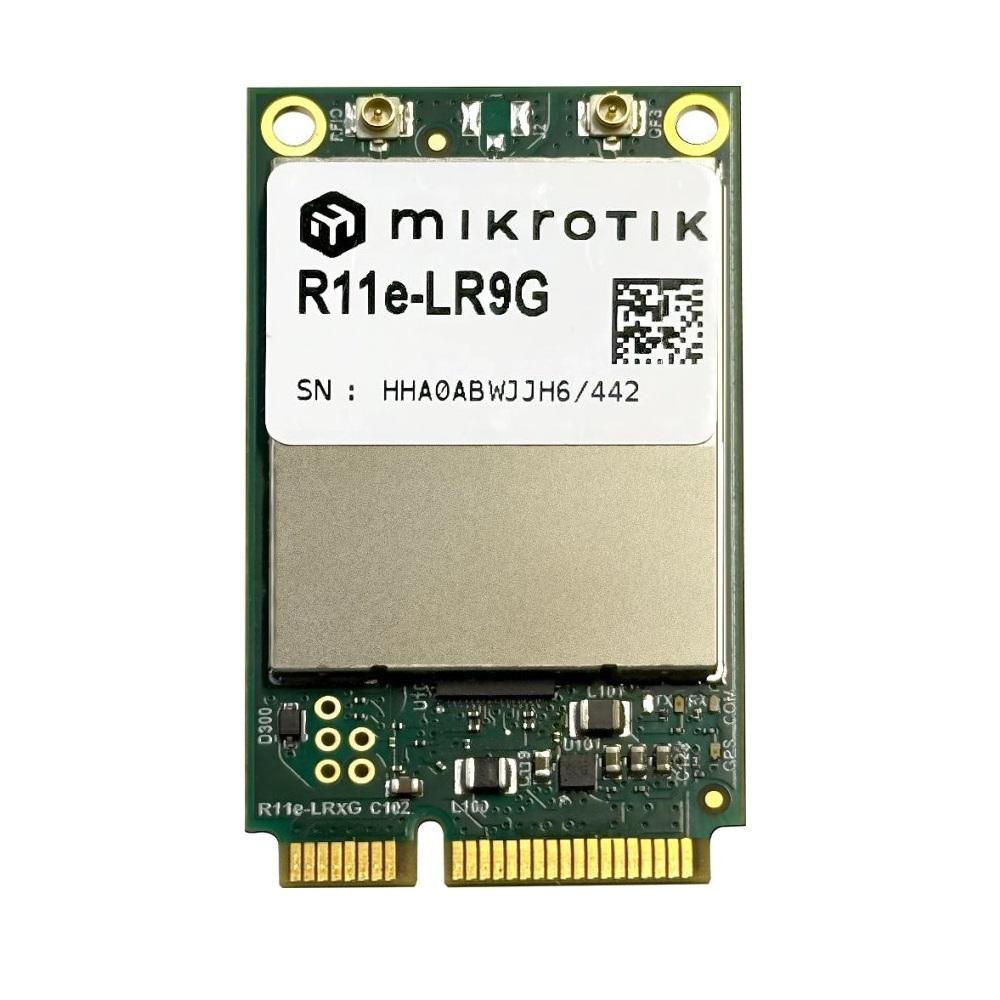

GPS-Enabled miniPCIe LoRa Card
The R11e-LR9G is a next-generation concentrator card for LoRa® networks, compatible with any MikroTik device that has a miniPCIe slot and USB lines.
Features:
- 915 MHz LoRa® support (AU915–928, US902–928, AS923, KR920–923)
- GPS support (MT3337V interface)
- Enhanced receive sensitivity: -141 dBm
- Max power consumption: 1.3 W
- Standard miniPCIe form factor
Now with GPS on board, the R11e-LR9G is ideal for mobile LoRa® base stations, vehicle tracking solutions, or precision deployment scenarios that benefit from time-sync or geolocation.
Specifications
Specifications R11e-LR9G
| MCU model | GD32L233RCT6 |
| GNSS interface model | MT3337V |
| GNSS standard | GPS |
| LoRa band | 915 MHz |
| Max Rx sensitivity | -141 dBm |
| Max power consumption | 1.3 W |
| Operating temperature | -40°C to +70°C |
