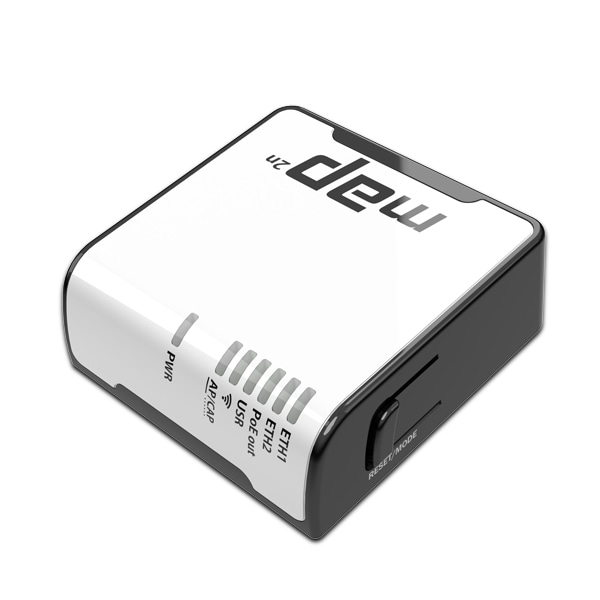

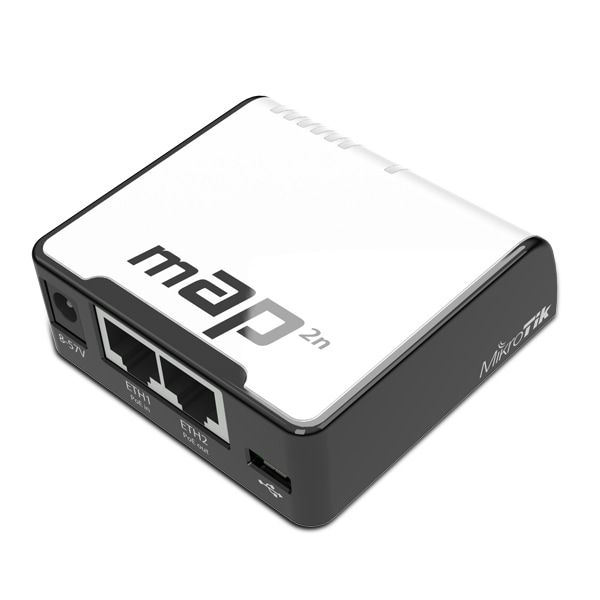

MikroTik mAP Micro Access Point
- SKU: RBmAP2nD
$43.65 $45.00
Product Information
The MikroTik mAP Micro Access Point is a tiny size wireless Dual-Chain 2.4GHz Access Point with full RouterOS capabilities. This highly portable device accepts power from multiple sources, including USB, Passive PoE, and power jack, providing flexibility in usage. It can also function as a PoE injector, offering up to 500mA of power through the second Ethernet port to connect other devices, such as an SXT CPE device. With its compact design and versatile features, the MikroTik mAP Micro Access Point is the ideal solution for wireless connectivity and network expansion.
Product Applications- Home Networking
- Small Office/Home Office
- Dual-chain 802.11b/g/n wireless operation
- Integrated omni-directional antennas
- Passive PoE support
- Compact and portable design
- QCA9531 CPU
- 650 MHz CPU Nominal Frequency
- QCA9531-BL3A-R Switch Chip Model
- Two 10/100 Ethernet Ports
- One MicroUSB Type AB
- -20°C to 70°C Operating Temperature
- 68 x 68 x 19 mm
- MikroTik mAP Micro Access Point
- USB OTG Cable
- Mounting Kit (K-33)
- 24V 0.8A Power Adapter
Specifications
Specifications RBmAP2nD
| Product code | RBmAP2nD |
| CPU nominal frequency | 650 MHz |
| CPU core count | 1 |
| Size of RAM | 64 MB |
| 10/100 Ethernet ports | 2 |
| Wireless standards | 802.11b/g/n |
| Wireless chip model | QCA9531 |
| Number of USB ports | 1 |
| Power Jack | 1 |
| 802.3af support | No |
| PoE out | Yes |
| Supported input voltage | 12 V - 57 V |
| PoE in | 802.3af/at |
| Voltage Monitor | Yes |
| PCB temperature monitor | Yes |
| Dimensions | 68x68x19mm |
| Operating System | RouterOS |
| Tested ambient temperature | -10C to +70C tested |
| License level | 4 |
| Antenna gain | 1.2 |
| CPU | QCA9531 |
| Max Power consumption | 5W |
| USB slot type | microUSB type AB |
| USB Power Reset | Yes |
| Number of chains | 2 |
| Storage type | FLASH |
| Storage size | 16 MB |
