Product Information

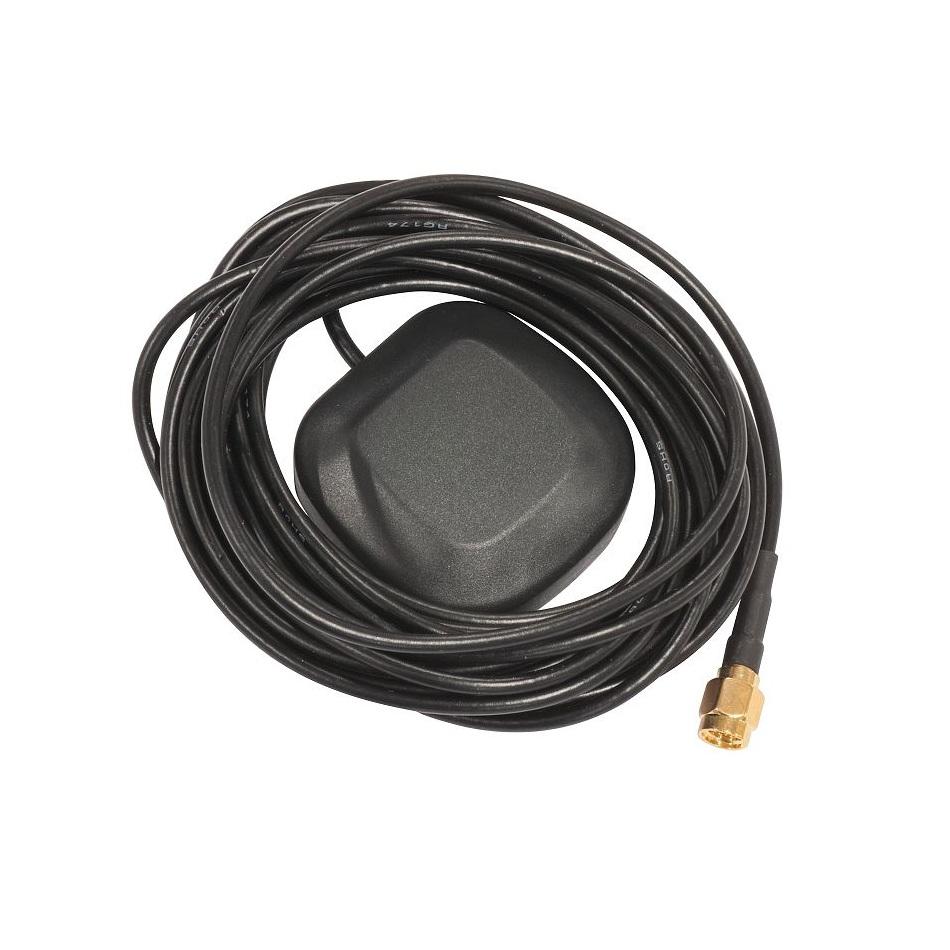

ISP Supplies supplies the MikroTik ACGPSA standalone active GPS antenna for LtAP series products. It works in the 1575.4 MHz spectrum. The antenna size is 46.5 mm x 26.5 mm x 12.5 mm with IP67 rating and includes an internal magnet and double sided tape, so it can easily be attached to various surfaces. It has a long 5m cable with an SMA connector, to be connected to LtAP or LtAP mini via the ACSMAUFL pigtail (available for ordering separately).
Specifications
Specifications ACGPSA
| Product code | ACGPSA |
| Center frequency | 1575.42 Mhz |
| Gain | 26 dB |
| Water resistance | 100% waterproof (IP67) |
| Connector | SMA |
| Cable | 5 m RG-174/U (standard) |
| Standard mounting | Magnetic base |
| DC voltages | 3 V +-0.3 V |
| DC current | 8 mA max |
| Dimensions | 46.5 x 46.5 x 12.5 mm |
| Weight | 35 g (without cable), 120 g (with cable and connector) |
| Operating temperature | -40°C .. +85°C tested |
