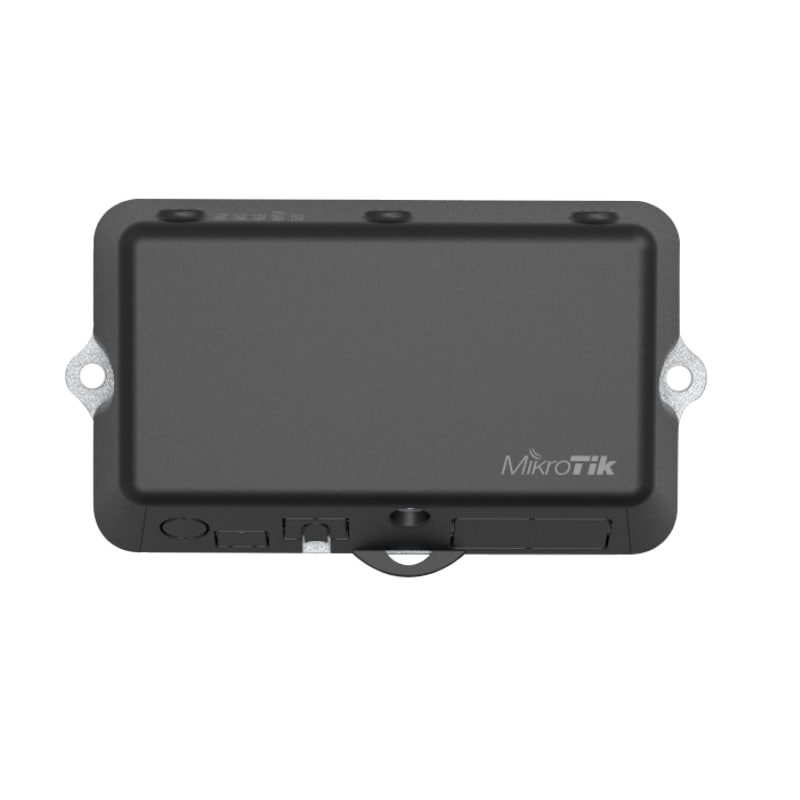

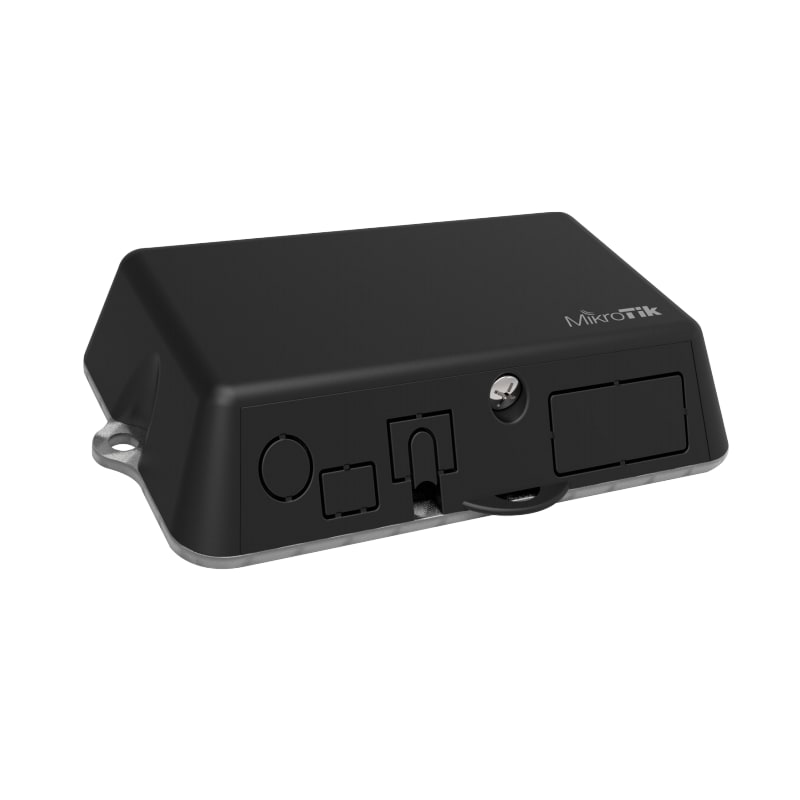

MikroTik LtAP Mini LTE Kit
- SKU: RB912R-2nD-LTm&R11e-LTE
- Manufacturer: MikroTik
- MikroTik-LtAP-Mini-Datasheet: Download
Product Information
ISP Supplies supplies the MikroTik The LtAP mini LTE kit. It is asmall weatherproof wireless access point with a built in cellular modem that supports 2G, 3G and 4G (LTE) connectivity on International LTE bands 1,2,3,7,8,20,38 and 40.
Connect to the LtAP mini’s built-in 802.11b/g/n wireless and access the LTE network from your phone or any other wireless device. The LtAP mini LTE also has one 10/100 Ethernet LAN port for your wired devices. The RS232 serial port gives you console access for debugging.
LtAP mini has a special enclosure with a wall mounting kit, two SIM slots to alternate between cellular providers, and integrated GPS support, making this a perfect device for use in moving vehicles like cars, buses or trains. External GPS antenna is available for ordering separately (not included, product code ACGPSA).
The LTE card is connected to two internal antennas with u.FL connectors, so if you want, you can unplug the connectors and add your own external LTE antenna for better coverage. The unit has several powering options: 9-30 V PoE-in by Ethernet port, DC jack and microUSB.
Use the built in GPS module to track the location of your vehicle in real time, we have even provided a simple tracking application example in the RouterOS documentation, to help you start development of your platform.
Specifications
Specifications RB912R-2nD-LTm-R11e-LTE
| Product code | RB912R-2nD-LTm&R11e-LTE |
| CPU | QCA9531 650 MHz |
| Size of RAM | 64 MB |
| Storage | 16 MB |
| 10/100 Ethernet ports | 1 |
| Wireless | Built-in 2.4 GHz 802.11b/g/n, dual-chain |
| Wireless chip model | QCA9531 |
| Wireless regulations | Specific frequency range can be limited by country regulations |
| Antenna beam width | 360° |
| Wireless antenna gain | 1.5 dBi |
| GPS | Built-in MT3337V, with uUFL RF connector and active antenna support |
| PoE in | Yes |
| SIM slot | 2 Mini SIM slots |
| LTE modem | Included |
| LTE category | 4 (150Mbps Downlink, 50Mbps Uplink) |
| 3G category | R7 (21Mbps Downlinks, 5.76Mbps Uplink) |
| 2G category | Class12 |
| LTE antenna gain | 3.5 dBi (with uFL connector) |
| Serial port | RS232 (shared with GPS port) |
| Supported input voltage | PoE in: 10 V - 57 V (Passive PoE and 802.3af/at with unshielded cable) DC jack: 8 - 30 V MicroUSB: 5 V |
| Dimensions | 139 x 77 x 28,5 mm |
| Operating temperature | -40°C .. +70°C tested |
| License | level 4 |
| Operating System | RouterOS |
| Max Power consumption | 9 W |
| Supported bands | |
| LTE (FDD) bands | 1/2/3/7/8/20 (2100/1900/1800/2600/900/800) |
| LTE (TDD) bands | 38/40 (2600/2300) |
| 3G bands | 1/2/5/8 (2100/1900/800/900) |
| 2G bands | 2/3/5/8 (1900/1800/800/900) |
