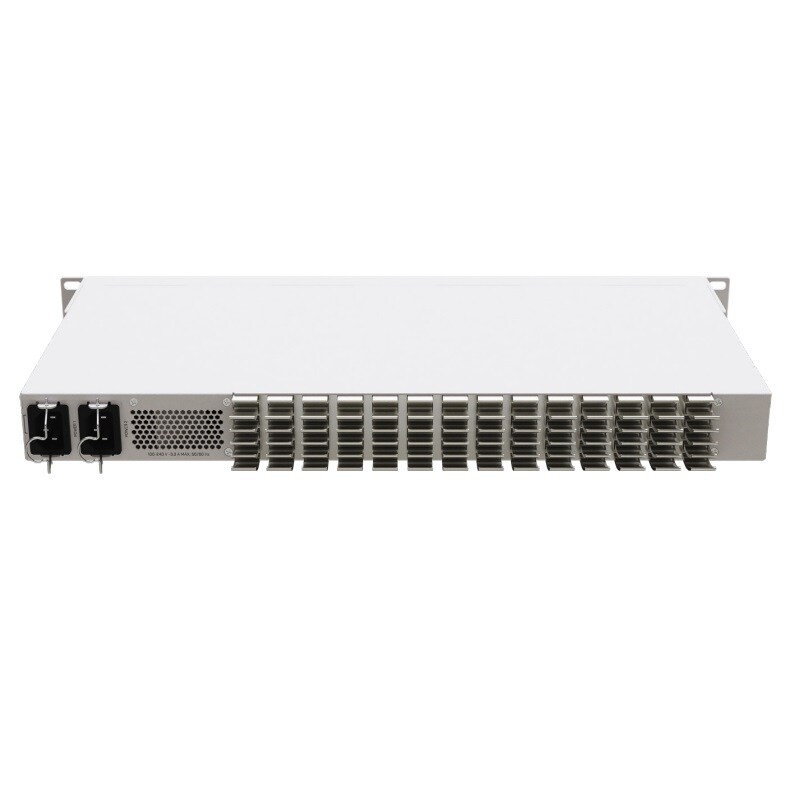

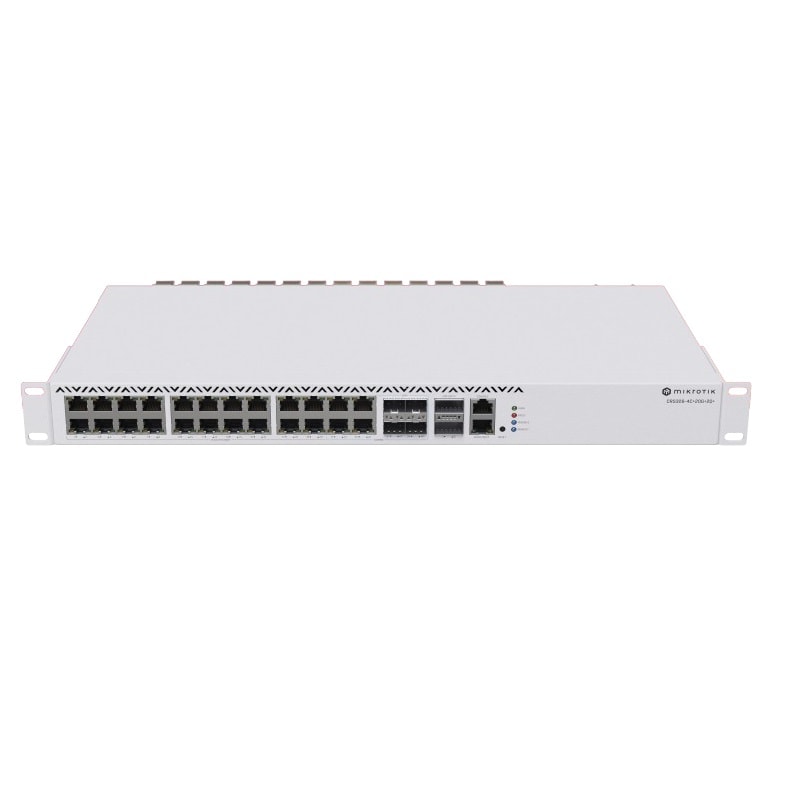

MikroTik Cloud Router Switch 20x 2.5GB Ethernet Ports
- SKU: CRS326-4C+20G+2Q+RM
- Manufacturer: MikroTik
- Data Sheet: Download
Product Information
MikroTik's Cloud Router Switch CRS326-4C+20G+2Q+RM is a managed MikroTik switch equipped with 20x 2.5G Gigabit Ethernet ports, 4x combo ports (4x 2.5G Gigabit Ethernet RJ45 ports or 4x SFP+ slots), 2x 40G QSFP+ slots and 1x port Fast Ethernet 10/100 Mbps for management. The CRS326-4C+20G+2Q+RM switch is an affordable solution suitable for offices, studios, and other professional environments with a fast and reliable 2.5 Gigabit standard.
The Cloud Router Switch CRS326-4C+20G+2Q+RM features the powerful Marvell Prestera switch chip with a dedicated processor that can handle all your daily tasks effortlessly - VLANs, Jumbo frames, link aggregation, ACL rules, etc. You can even perform Layer 3 routing. Additionally, dual redundant AC power supplies (70W max power consumption) and an additional 100Mbps Fast Ethernet port for management purposes will save you much trouble in the long run meta. The switch has a 1U housing designed for a 19" rack cabinet.
The MIPSBE QCA9531 processor powers the CRS326-4C+20G+2Q+RM switch clocked at 650 MHz and 128 MB of DDR2 RAM and the Marvell Prestera 98DX8332 switch chip.
Product Features
- 20x 2.5G Gigabit Ethernet ports
- 4x combo ports (4x 2.5G Gigabit Ethernet RJ45 ports or 4x SFP+ slots)
- 2x 40G QSFP+ slots
- 1x Fast Ethernet port for management
- QCA9531 650 MHz processor
- Switch chip Marvell Prestera 98DX8332
- 128MB RAM
- 2 built-in redundant AC power supplies
- RouterOS Level 6 system
Specifications
Specifications CRS326-4C+20G+2Q+RM
| CPU | QCA9531 650 MHz |
| CPU architecture | MIPSBE |
| CPU core count | 1 |
| Size of RAM | 128 MB |
| RAM type | DDR2 |
| Storage | 32 MB, NAND |
| Number of 100M Ethernet ports | 1 |
| Number of 2.5G Ethernet ports | 20 |
| Number of 40G QSFP+ ports | 2 |
| Number of Combo 10G Ethernet/ SFP+ ports | 4 |
| Operating system | RouterOS v7, License level 6 |
| Switch chip model | 98DX8332 |
| Switch connection to CPU | 1 Gbps |
| Dimensions | 443 x 258 x 44 mm (17.44" x 10.15" x 1.73") |
| Operating temperature | -20°C to +60°C |
| Powering | |
| Number of AC inputs | 2 |
| AC input range | 100-240 V |
| Nominal voltage | 12 V |
| Nominal current | 10.8 A |
| Max power consumption (without attachments) | 51 W |
| Max power consumption | 70 W |
