MikroTik CRS328 Independent Port Smart Switch (20 SFP Ports)
- SKU: CRS328-4C-20S-4S+RM
$435.53 $449.00
Product Information

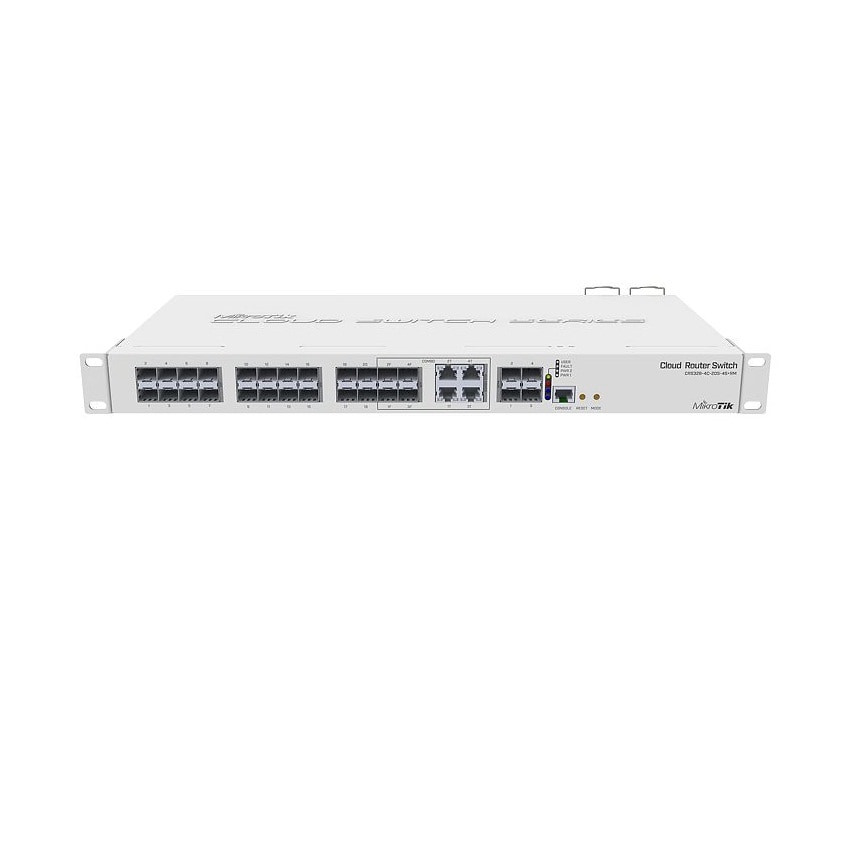

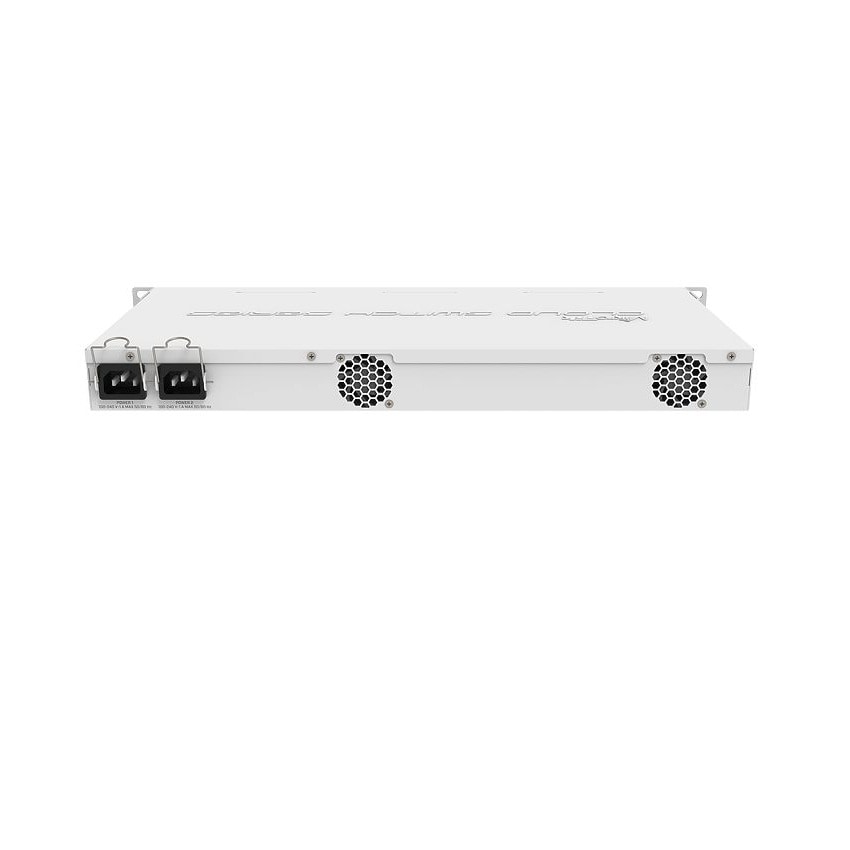

The MikroTik CRS328 Independent Port Smart Switch is a versatile 28-port switch featuring twenty SFP ports, four SFP+ ports for 10G modules, and four combo ports that support both SFP and RJ45 connections. These combo ports can be software-selected, providing flexibility in configuring the active ports. The device comes in a 1U rackmount case with two 100-240 V power supplies, offering failover functionality for uninterrupted operation.
For management and debugging, the MikroTik CRS328 Smart Switch includes an RJ45 console port, and a mode button can be customized to execute specific RouterOS commands. It also offers a "Dual boot" feature, allowing users to choose between RouterOS and SwOS operating systems based on their specific needs.
Product Applications- Networking setups requiring multiple SFP and SFP+ ports
- Configuring active ports based on software selection
- Rackmount installations with power supply failover
- Non-blocking Layer 2 switching capacity
- Supports up to 4K simultaneous VLANs
- 16K Host Table
- Broadcast storm control
- Port Security and Port Isolation
- Port mirroring of ingress/egress traffic
- Dual boot feature for selecting between RouterOS and SwOS
- Twenty-Eight Independent Ports
- RJ45 console port for management and debugging
- 512 MB RAM
- 4 SFP+ ports
- 4 ETH/SFP combo ports
- 20 SFP ports
- Dual PSU
- 1U Rackmount
- -20°C to 60°C Operating Temperature
- 443 x 194 x 44 mm
- MikroTik CRS328 Smart Switch (20 SFP Ports)
- Two IEC power Cords
- Rack Ears
- K-54 Kit
Specifications
Specifications CRS328-4C-20S-4S+RM
CPU | Marvell 8DX3236A1 800 MHz |
RAM | 512 MB |
Storage type | Flash |
Storage size | 16 MB |
Switch chip model | 98DX3236A1 |
SFP cages | 20 |
SFP+ cages | 4 |
Ethernet/SFP Combo ports | 4 |
Operating system | SwOS / RouterOS (Dual boot) |
Supported input voltage | 100 - 240 V |
Dimensions | 443 x 200 x 44 mm |
Operating temperature | -20°C .. +60°C tested |
Max power consumption | 43 W |
Serial port | RJ45 |
License level | 5 |
