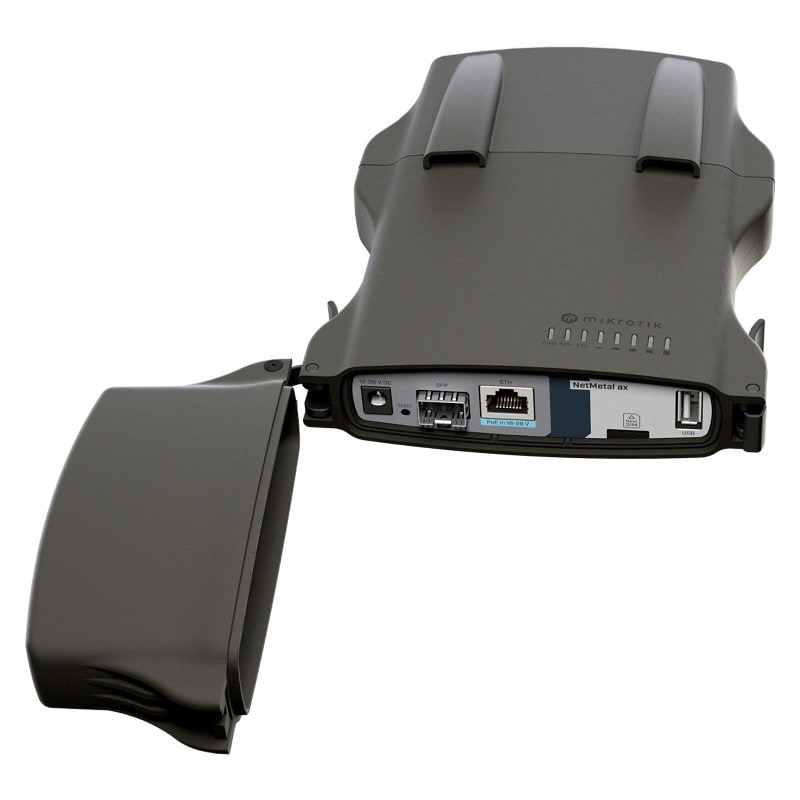

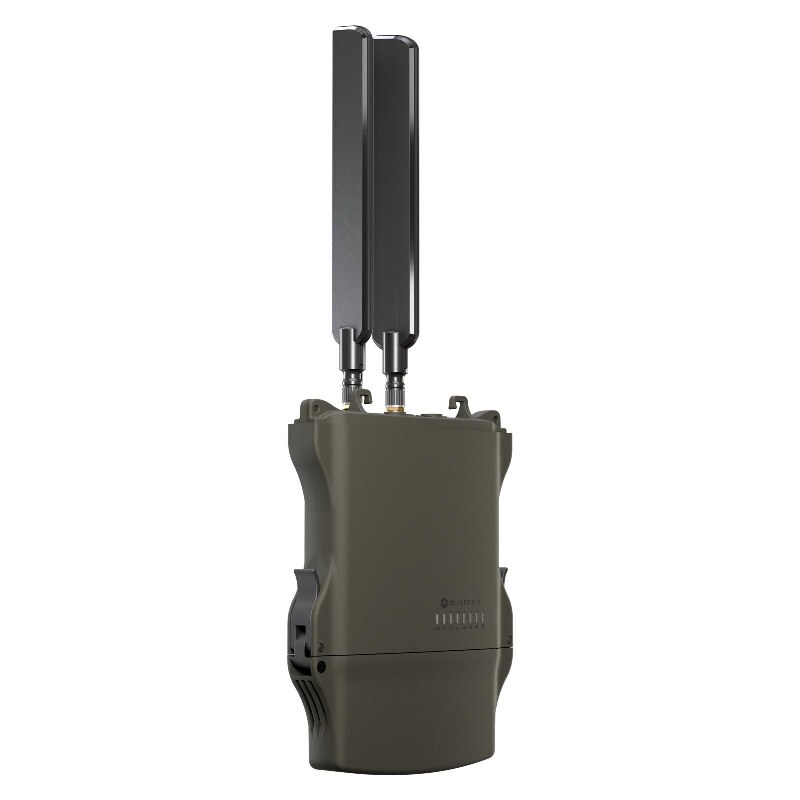

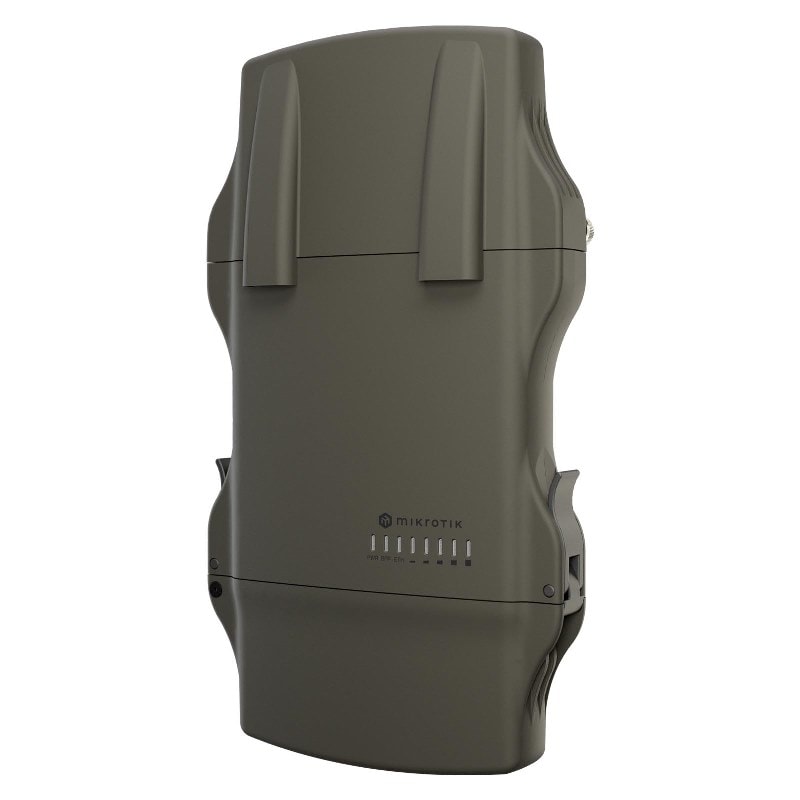

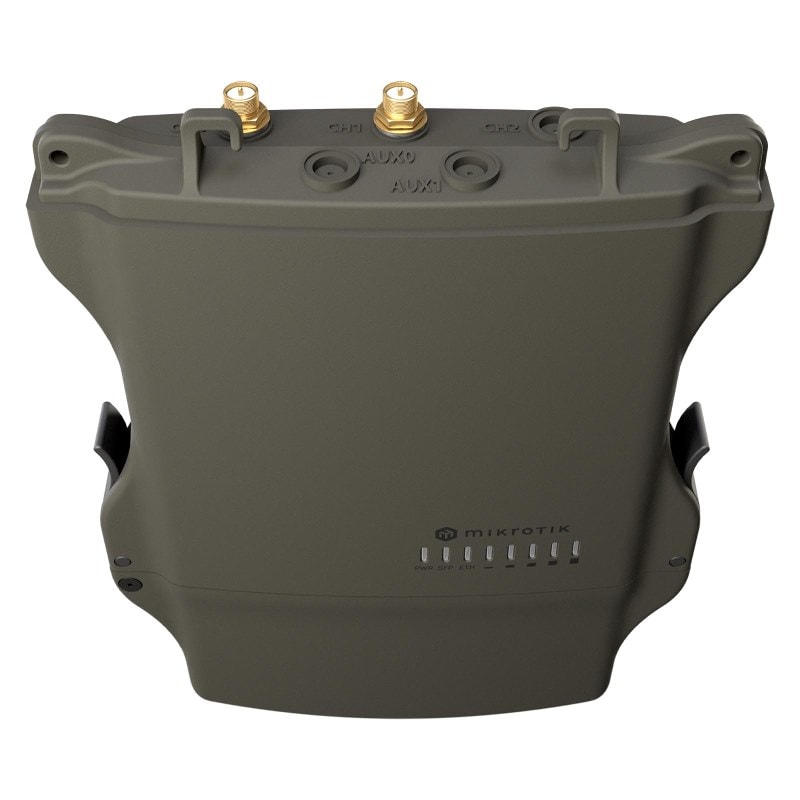

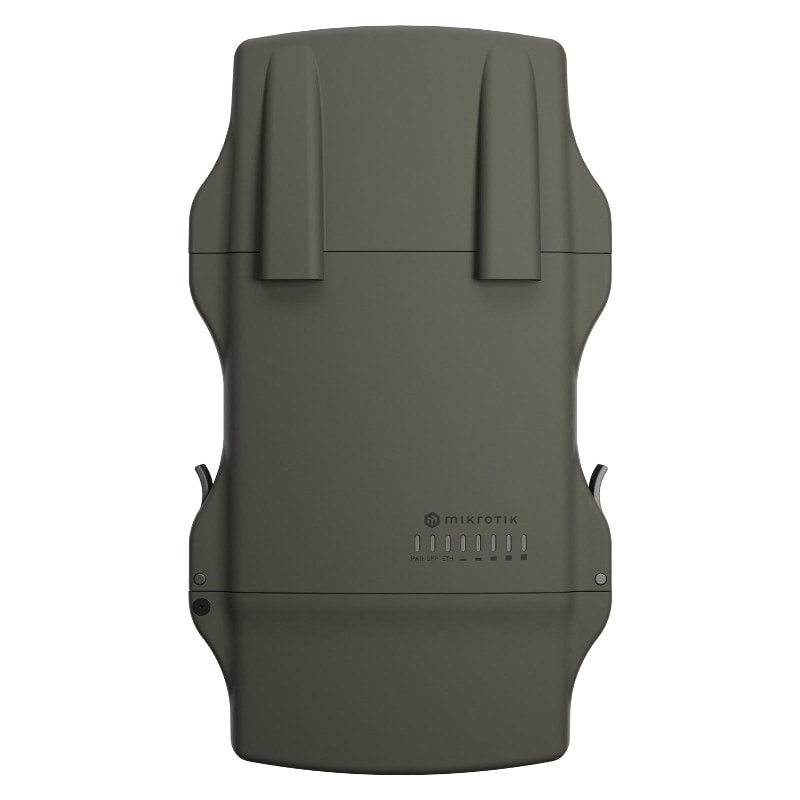

MikroTik L23UGSR-5HaxD2HaxD-NM
- SKU: L23UGSR-5HaxD2HaxD-NM
$169.00
- Manufacturer: MikroTik
- Data Sheet: Download
Product Information
NetMETAL ax with ARM IPQ-5010 800MHz CPU, 256MB RAM, Outdoor Wi-Fi 6 Access Point
Specifications
Specifications L23UGSR-5HaxD2HaxD-NM
| CPU | Dual-Core IPQ-5010 800 MHz |
| CPU architecture | ARM |
| Size of RAM | 256 MB |
| RAM type | DDR3L |
| Storage | 128 MB, NAND |
| Number of 1G Ethernet ports | 1 |
| Number of 2.5 Gbps SFP ports | 1 |
| MiniPCIe slots | 1 (Only for LTE, LoRA cards) |
| USB port | 1 USB 2.0 port type A* |
| SIM slot | 1 NanoSIM |
| Wireless interface model | IPQ-5010 (2.4 GHz), QCN-6102 (5 GHz) |
| Wireless | 2.4 GHz 802.11b/g/n/ax dual-chain, 5 GHz 802.11a/n/ac/ax dual-chain |
| Dimensions | 143 x 247 x 48 mm 5.62 x 9.72 x 1.88 inches |
| Operating system | RouterOS v7, License level 4 |
| Operating temparature | -40°C to +70°C |
| Powering | |
| Number of DC inputs | 2 (PoE-In, DC jack) |
| PoE-In input Voltage | 18-28 V |
| DC jack input voltage | 12-28 V |
| Power adapter nominal voltage | 24 V |
| Power adapter nominal current | 1.2 A |
| Max USB current | 1.5 A |
| PoE-In | Passive PoE |
| Max power consumption without attachments | 12 W |
| Max power consumption | 25 W |
| Certification & Approvals | |
| Certification | CE, FCC, IC, IP66 |
