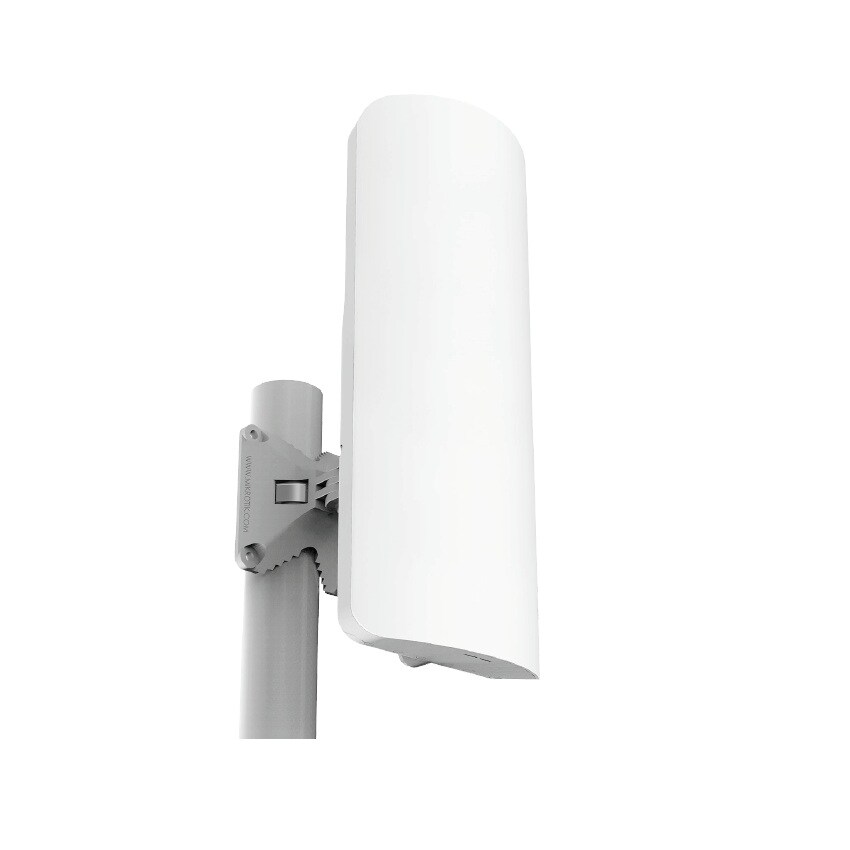

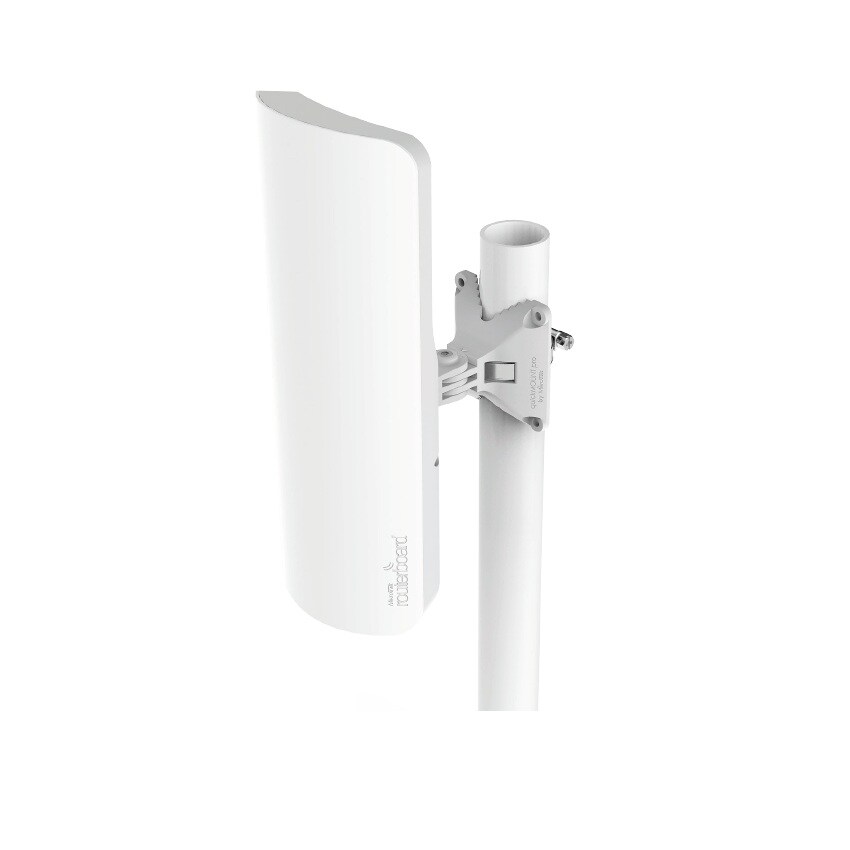

MikroTik mANTBox 2 12s Base Station for 2.4 GHz
- SKU: RB911G-2HPnD-12s
$96.03 $99.00
Product Information
ISP Supplies supplies the MikroTik mANTBox 2 12s, a 2.4GHz 120 degree 12dBi dual polarization sector integrated antenna with 600Mhz CPU, 64MB RAM, Gigabit Ethernet, PSU and PoE.
The mANTBox is based on MikroTik's new mANT sector antennas, but also has a wireless router built right in. Powered by the RB911 device, the mANTBox comes ready to use with everything included. The device uses a high speed 600 MHz CPU, comes with the Gigabit Ethernet port and has a built in 802.11 b/g/n wireless device with up to 30 dBm output power.
The mANTBox 2 12s is compatible with the SXT type mount, so you can use it with MikroTik's durable and adjustable QuickMount systems. It comes with quickMOUNT PRO included.
Specifications
Specifications RB911G-2HPnD-12s
| CPU | AR9342 600 MHz |
| Size of RAM | 64 MB |
| Data storage | 128 MB NAND, 64 KB Flash |
| 10/100/1000 Ethernet ports | 1 |
| Wireless | Built-in 2.4 GHz 802.11b/g/n, dual-chain |
| Wireless regulations | Specific frequency range can be limited by country regulations |
| PCB temperature monitor | Yes |
| Voltage monitor | Yes |
| Power input | jack: 8-30 V DC, PoE in: 10-28 V DC |
| Power consumption | 11 W |
| LEDs | 8 |
| Beeper | Yes |
| Operating system | MikroTik RouterOS, Level 4 license |
| Antenna gain | 12 dbi |
| Frequency range | 2412 - 2484 MHz |
| Polarization | Vertical and horizontal |
| 3DB Beamwidth - azimuth | 120 deg |
| Dimensions | 140 x 348 x 82 mm |
| Wireless specifications | ||
| RATE | Tx (dBm) | Rx (dBm) |
| 1MBit/s | 30 | -100 |
| 11MBit/s | 30 | -94 |
| 6MBit/s | 30 | -96 |
| 54MBit/s | 27 | -78 |
| MCS0 | 30 | -96 |
| MCS7 | 24 | -73 |
