Product Information

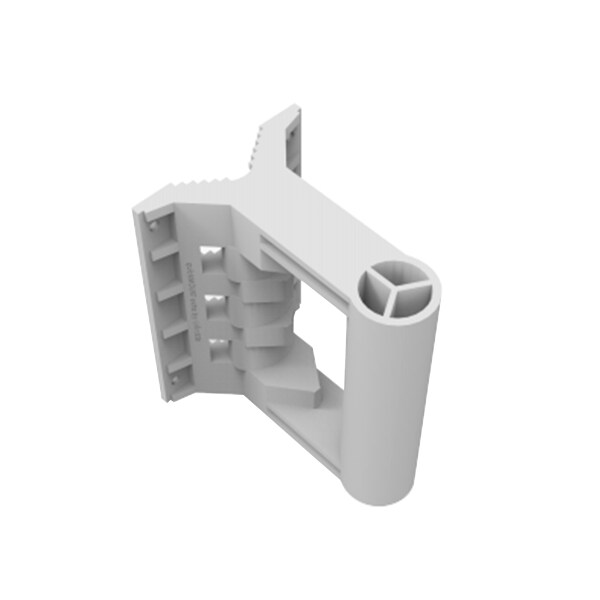

ISP Supplies supplies the MikroTik QME quickMOUNT extra, an advanced wall mount adapter for large point-to-point & sector antennas.
You can mount it on the wall or use it as an adapter from large diameter pole to small size antenna mounting clip ensuring reliable fitment. The quickMOUNT extra gives possibility to turn antenna within 190°.
The quickMOUNT extra is compatible with MikroTik's long range heavy antennas like 30dBi parabolic dish mANT 30 or 19dBi sector mANT 19s.
Specifications
Specifications QME
| Dimensions | 4 x 5.3 x 5.9in (102 x 135 x 150mm) |
| Tube diameter | 1.38in (35mm) |
| Max Tube diameter | 2.76in (70mm) |
| Maximum supported antenna weight | 17.64lbs (8kg) |
| Angle turn | 190deg |
| Operating temperature | -40 to +104deg F (+/-40deg C) |
| Maximum wind load | 100N |
| Material | anvilNITE |
