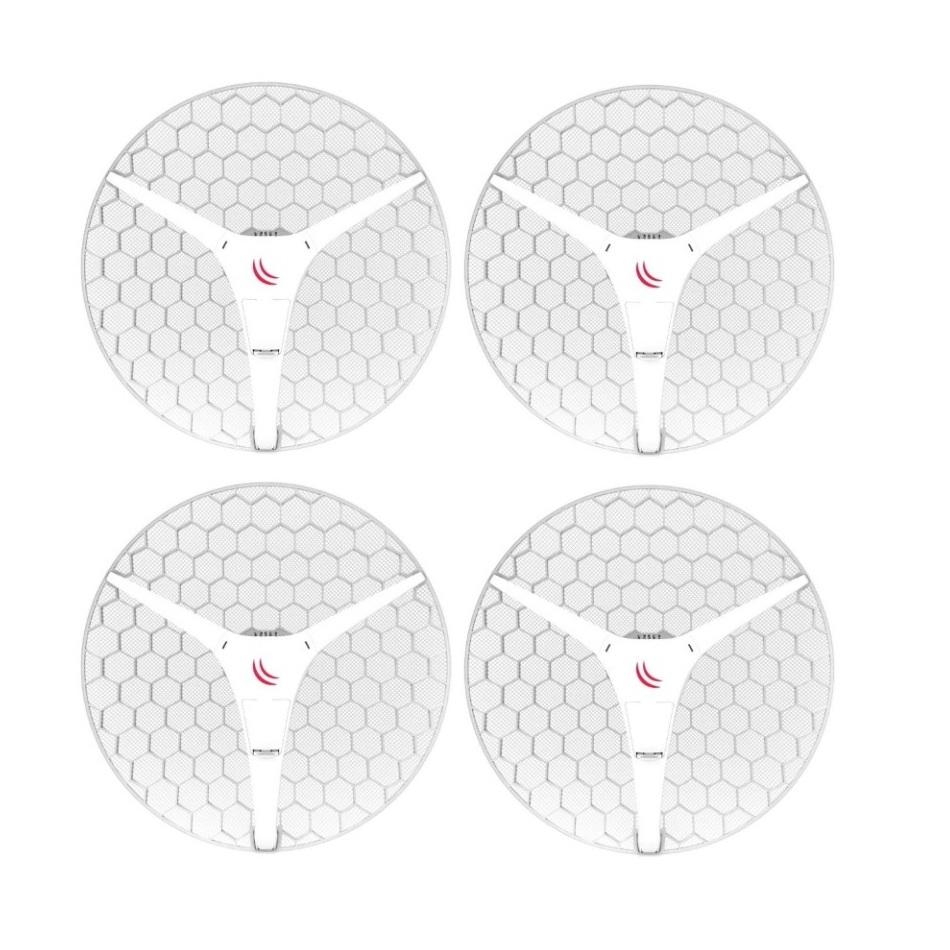

MikroTik LHG XL HP5 5GHz CPE (US)
- SKU: RBLHG-5HPnD-XL4pack-US
$345.32 $356.00
Product Information

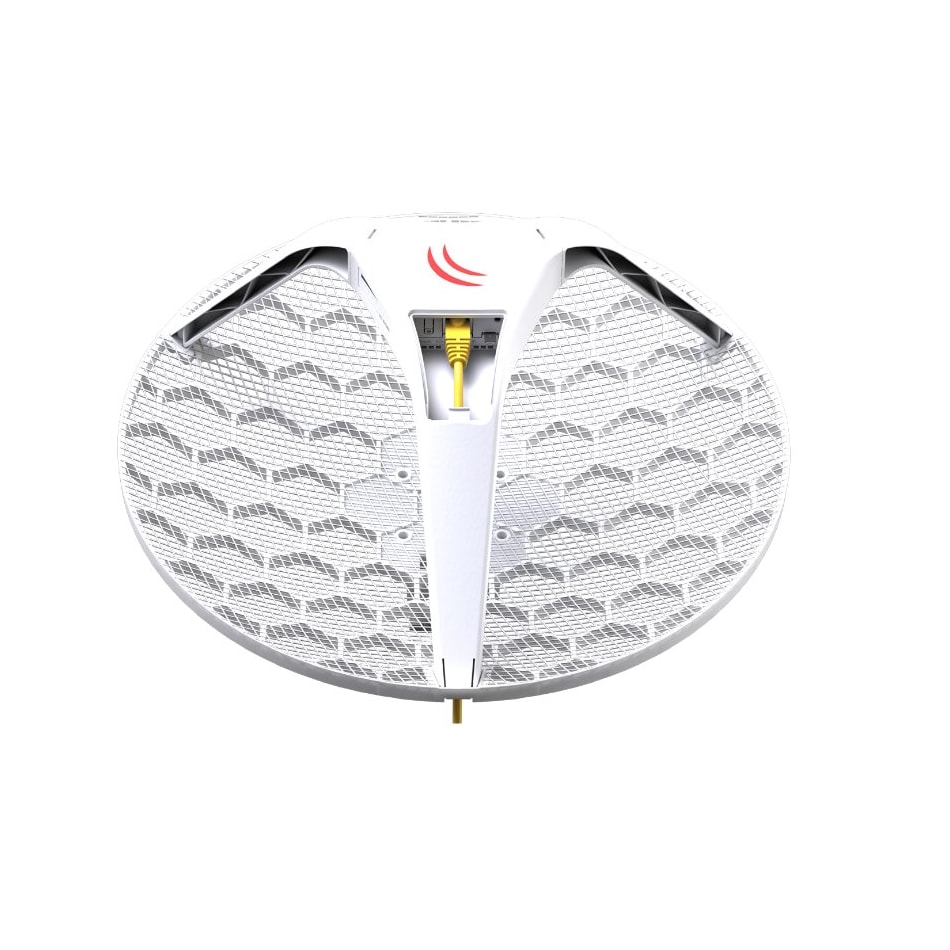

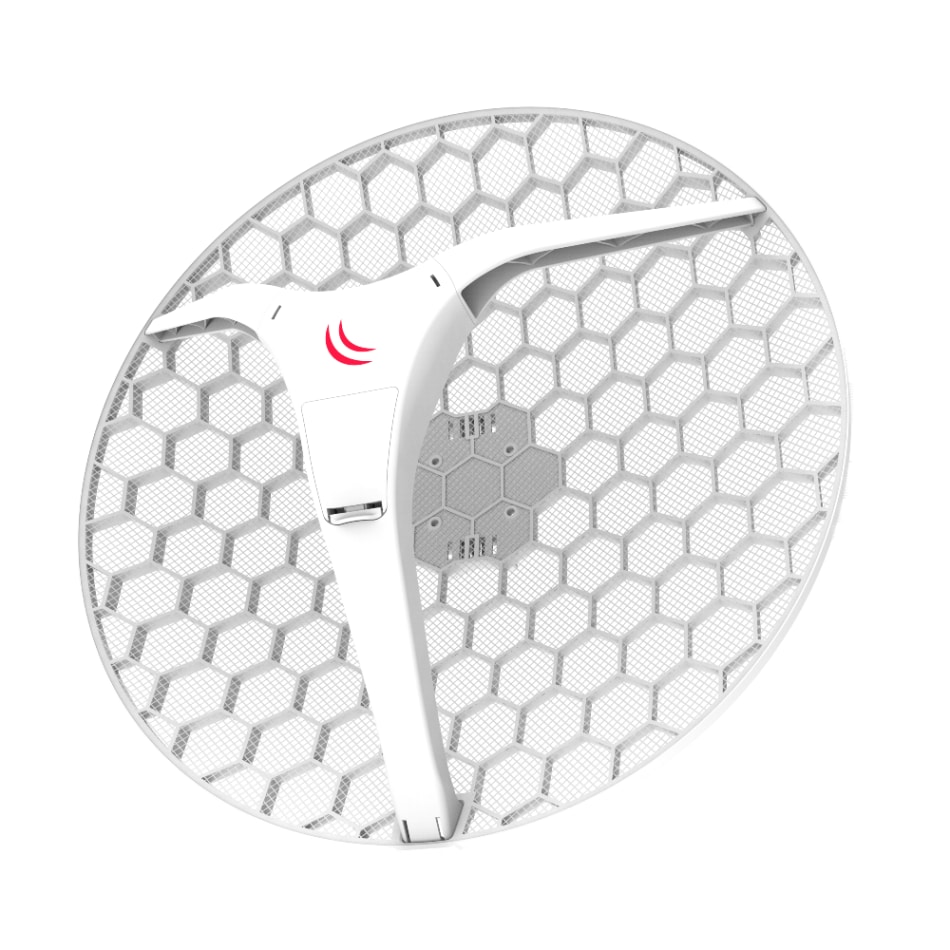

ISP Supplies supplies the MikroTik 4 pack of LHG XL HP5, a 5GHz 802.11 a/n wireless device with an integrated dual polarization 27 dBi grid antenna and high TX output power, designed to reach up to 40km in point-to-point setups at full speed.
The grid design ensures protection against wind, and the fact that the antenna element is built into the wireless unit means no loss on cables.
This version, LHG XL HP5-US (USA) is factory locked for 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed.
Specifications
Specifications RBLHG-5HPnD-XL4pack
| CPU nominal frequency | 600 MHz |
| Size of RAM | 64 MB |
| Storage | 16 MB Flash |
| 10/100 Ethernet ports | 1 |
| Wireless | Built-in 5 GHz 802.11a/n, dual-chain |
| Wireless chip model | AR9344 |
| Operating frequency | International: 5150 - 5875 MHz USA: 5170 - 5250 MHz; 5725 - 5835 MHz |
| Antenna gain | 27 +/- 0.5 dBi |
| Antenna beam width | 6,4° |
| Cross polar | 21 dBi |
| Port to port isolation | 18 dB |
| Front to back ratio | 35 dB |
| Return loss | 14 dB |
| VSWR | 1.5:1 |
| PoE in | Yes |
| Supported input voltage | 10 V - 28 V (passive PoE) |
| ind loading | 186N @ 205 km/h |
| Operating temperature | -40 to 70° C |
| Operating humidity | 5 to 95% noncondensing |
| Shock and vibration | ETSI300-019-1.4 |
| ETSI specification | EN 302 326 DN2 |
| Dimensions | Ø 550 x 245 mm; package 585 x 595 x 138 mm |
| Weight | Unit: 945 g; package: 2.99 kg |
| Max Power consumption | 7 W |
