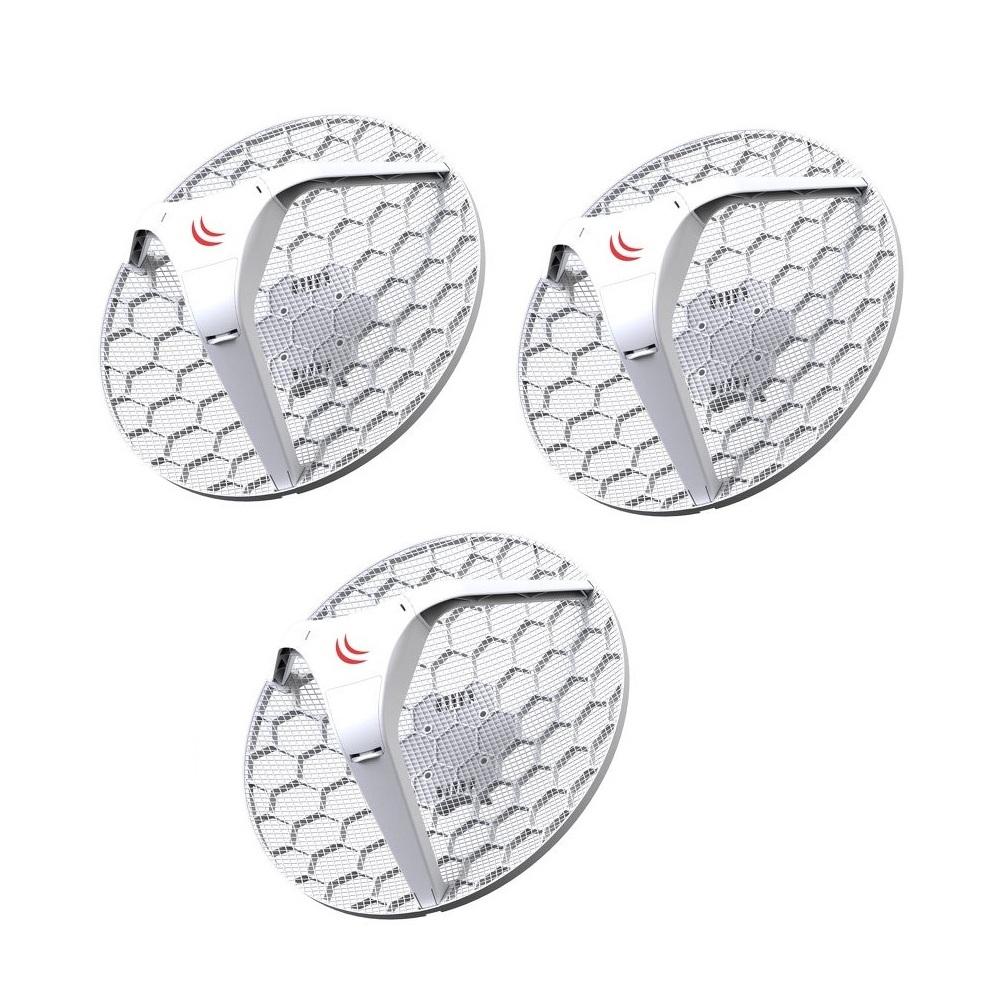

MikroTik LHG 5 Dual Chain 24.5dBi 5GHz CPE/Point-to-Point Integrated Antenna 3-Pack (US)
- SKU: RBLHG5kit-US
$200.79 $207.00
Product Information

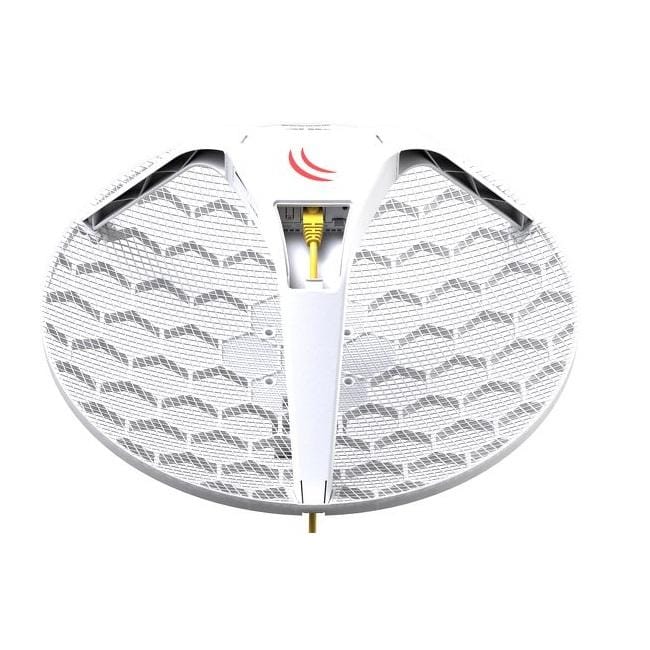

ISP Supplies supplies the MikroTik 3 pack of LHG 5, a compact and light 5GHz 802.11 a/n wireless device with an integrated dual polarization 24.5 dBi grid antenna at a revolutionary price. It is perfect for point to point links or for use as a CPE at longer distances and supports Nv2 TDMA protocol.
The grid design ensures protection against wind, and the fact that the antenna element is built into the wireless unit means no loss on cables.
This version, LHG 5-US (USA) is factory locked for 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed.
Specifications
Specifications RBLHG-5nD-3-US
| Product code | RBLHG-5nD-US |
| CPU nominal frequency | 600 MHz |
| Size of RAM | 64 MB |
| Storage type | Flash |
| Storage size | 16 MB |
| 10/100 Ethernet ports | 1 |
| Wireless | Built-in 5 GHz 802.11a/n, dual-chain |
| Wireless chip model | AR9344 |
| Operating frequency | USA 5170 - 5250 MHz 5725 - 5835 MHz |
| Antenna gain | 24.5 +/- 0.5 dBi |
| Antenna beam width | 7° |
| PoE in | Yes |
| Supported input voltage | 11 V - 30 V (passive PoE) |
| Wind Survivability | 205 km/h |
| Wind Loading | 186N @ 205 km/h |
| Cross polar | 15 dBi |
| Port to port isolation | 20 dB |
| Front to back ratio | 25 dB |
| Operating Temperature | -40 to 70° C |
| Operating Humidity | 5 to 95% noncondensing |
| Shock and Vibration | ETSI300-019-1.4 |
| ETSI specification | EN 302 326 DN2 |
| Dimensions | Ø 391 x 222 mm; package 450 x 450 x 145 mm |
| Weight | Unit: 560 g; package: 1.98 kg |
| Max Power consumption | 6 W |
| Wireless specifications | |
| RATE | Tx (dBm),width="45%">Rx (dBm) |
| 6MBit/s | 25,-96 |
| 54MBit/s | 20,-80 |
| MCS0 | 25,-96 |
| MCS7 | 19,-75 |
