MikroTik cAP ac Dual-Band 2.4 / 5GHz Access Point (US)
- SKU: RBcAPGi-5acD2nD-US
Product Information

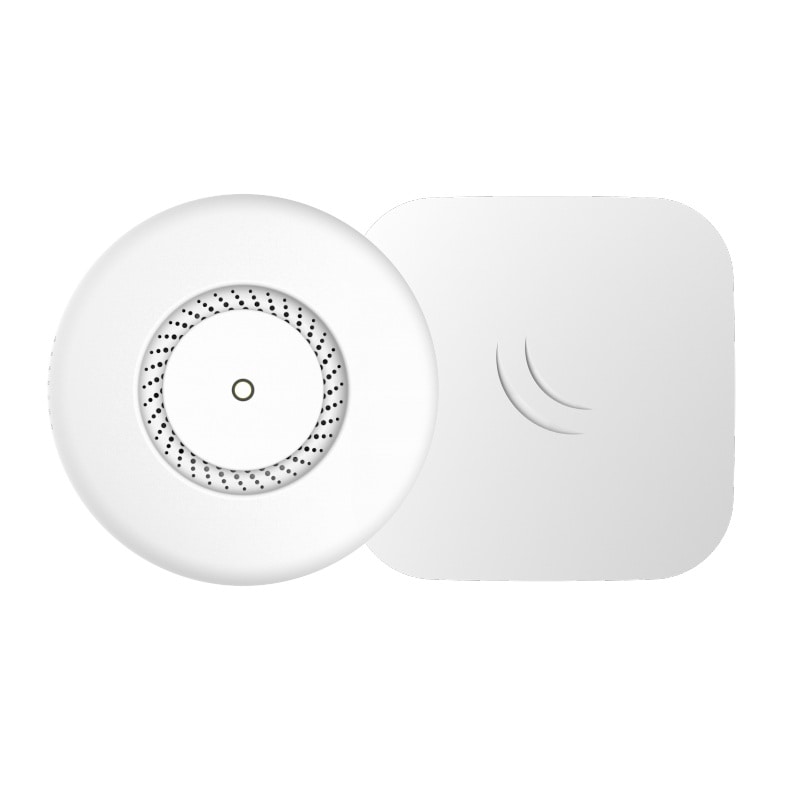

MikroTik cAP ac dual-band 2.4 / 5GHz wireless access point for mounting on a ceiling or wall with two Gigabit Ethernet ports (one with PoE output), 802.11ac support, and IPsec hardware encryption support.
The cAP ac is not just a powerful wireless access point, it's also a versatile one. Its sleek design makes it a perfect fit for both walls and ceilings. The dual-band wireless radio supports dual chain 2GHz 802.11b/g/n and 5GHz in a/n/ac standards, ensuring coverage in a 360-degree radius.
Even though the radio supports repeater mode, the two Ethernet ports allow you to extend your network with cables, even if PoE power is required. The cAP ac supports 802.3af/at PoE input on the first port and passive PoE output on the second port. The device also supports IPsec hardware acceleration.
This version, cAP ac-US (USA) is factory locked for 2412-2462MHz, 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed.
Product Includes- MikroTik cAP ac Access Point
- 24V 1.2A Power Adapter
- Ceiling mount
- Gigabit PoE injector
- K-46 screw kit
Specifications
Specifications RBcAPGi-5acD2nD
| CPU | IPQ-4018 | |
| CPU nominal frequency | 716 MHz | |
| Size of RAM | 128 MB | |
| Storage type | Flash | |
| Storage size | 16 MB | |
| 10/100/1000 Ethernet ports | 2 | |
| Wireless bands | 2.4 GHz | 5 GHz |
| Wireless regulations | Specific frequency range may be limited by country regulations | |
| Operating frequency | International 2412 - 2484 MHz USA 2412 - 2462 MHz | International 5150 - 5875 MHz USA 5170 - 5250 MHz 5725 - 5835 MHz |
| Protocols | 802.11b/g/n | 802.11ac |
| Chains | 2 | 2 |
| Antenna gain | 2 dBi | 2 dBi |
| Wireless regulations | Specific frequency range may be limited by country regulations | |
| Power options | PoE-in 802.3af/at, PoE-out (Passive, Ethernet port 2), 17-57 V | |
| LEDs | 7x LEDs (1x user LED) | |
| Operating temperature | 40°C .. +70°C tested | |
| Dimensions | Round case: ⌀ 136 mm, height: 30 mm; Square case: 145 mm x 145 mm x 30 mm | |
| License level | 4 | |
| Operating System | RouterOS | |
| Max Power consumption | 13 W |
