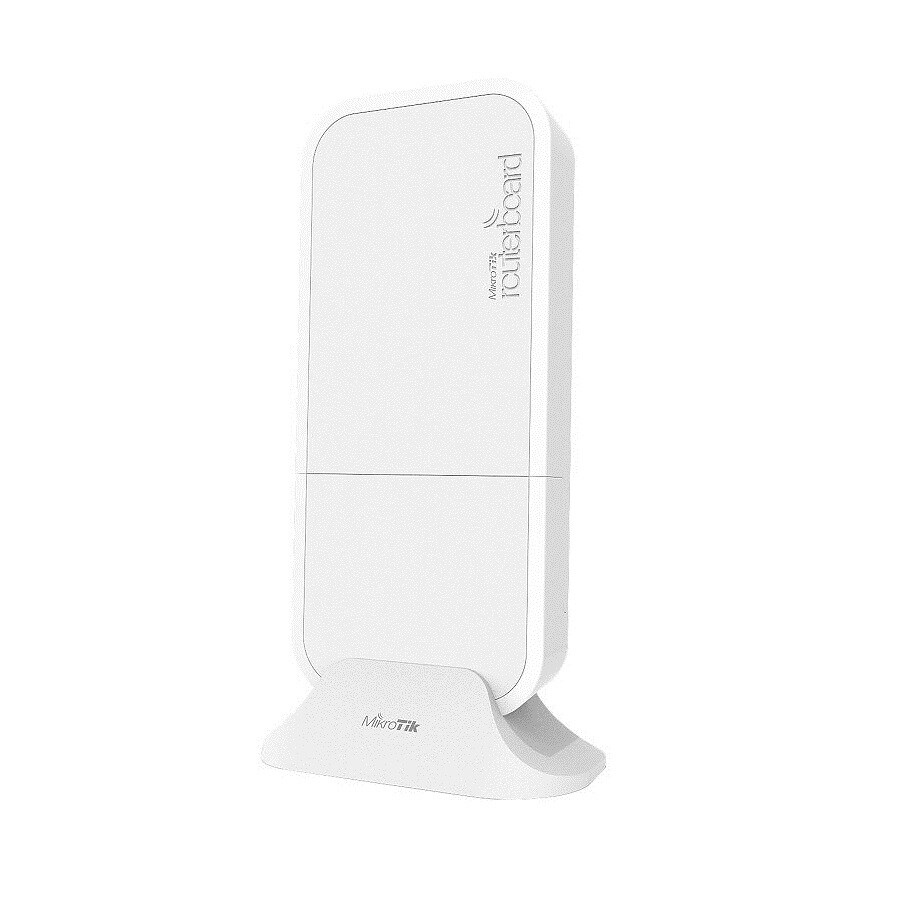

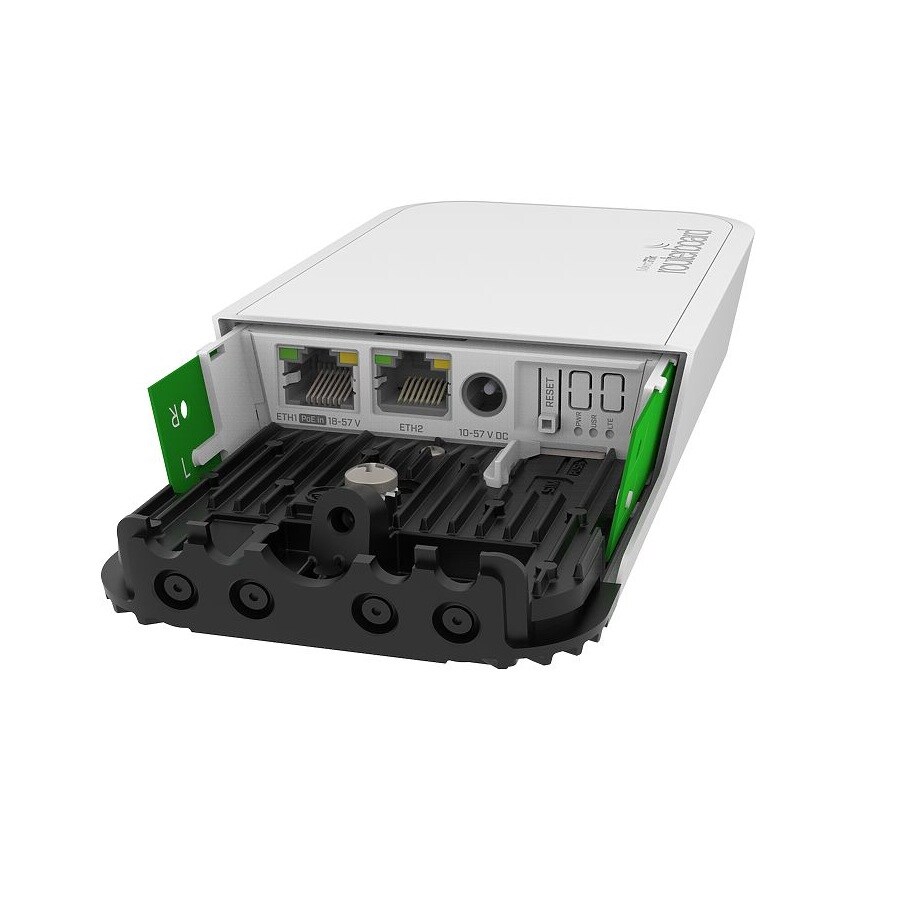

wAP R ac with four core 710MHz CPU, 128MB RAM, 2x Gigabit LAN, built-in 2.4Ghz 802.11b/g/n Dual Chain wireless with integrated antenna, built-in 5Ghz 802.11an/ac Dual Chain wireless with integrated antenna, internal LTE antenna, miniPCI-e slot, RouterOS L4, outdoor enclosure, PSU, Gigabit PoE injector, WITHOUT LTE MODEM
- SKU: RBwAPGR-5HacD2HnD
$134.83 $139.00
+ $7.28 Tariff
Product Information
wAP R ac with four core 710MHz CPU, 128MB RAM, 2x Gigabit LAN, built-in 2.4Ghz 802.11b/g/n Dual Chain wireless with integrated antenna, built-in 5Ghz 802.11an/ac Dual Chain wireless with integrated antenna, internal LTE antenna, miniPCI-e slot, RouterOS L4, outdoor enclosure, PSU, Gigabit PoE injector, WITHOUT LTE MODEM
Specifications
Specifications RBwAPGR-5HacD2HnD
| CPU | Quad-core IPQ-4018 716 MHz |
| Size of RAM | 128 MB |
| Storage | 16 MB flash |
| 10/100/1000 Ethernet ports | 2 |
| Wireless | 2.4 GHz 802.11b/g/n dual-chain, 5 GHz 802.11a/n/ac dual-chain |
| Wireless regulations | Specific frequency range will be limited by country regulations |
| Wireless antenna max gain | 2.5 dBi |
| LTE antenna max gain | 4 dBi (with u.FL connector) |
| Antenna beam width | 360° |
| Micro SIM slot | 1 |
| Supported input voltage | DC jack 10 - 57 V |
| PoE in | Passive PoE 18-57V or active 802.3af/at |
| Dimensions | 185 x 85 x 30 mm |
| Operating temperature | -30°C .. +60°C |
| Operating system | RouterOS, License level 4 |
| MiniPCIe slots | 1 |
| Max Power consumption | 11 W |
| Wireless specifications | ||
| Rate (2.4 GHz) | Tx (dBm) | Rx (dBm) |
| 1MBit/s | 22 | -100 |
| 11MBit/s | 22 | -94 |
| 6MBit/s | 23 | -95 |
| 54MBit/s | 19 | -78 |
| MCS0 | 23 | -95 |
| MCS7 | 18 | -73 |
| 6MBit/s | 24 | -96 |
| 54MBit/s | 20 | -80 |
| MCS0 | 24 | -96 |
| MCS7 | 19 | -75 |
| MCS9 | 17 | -70 |
