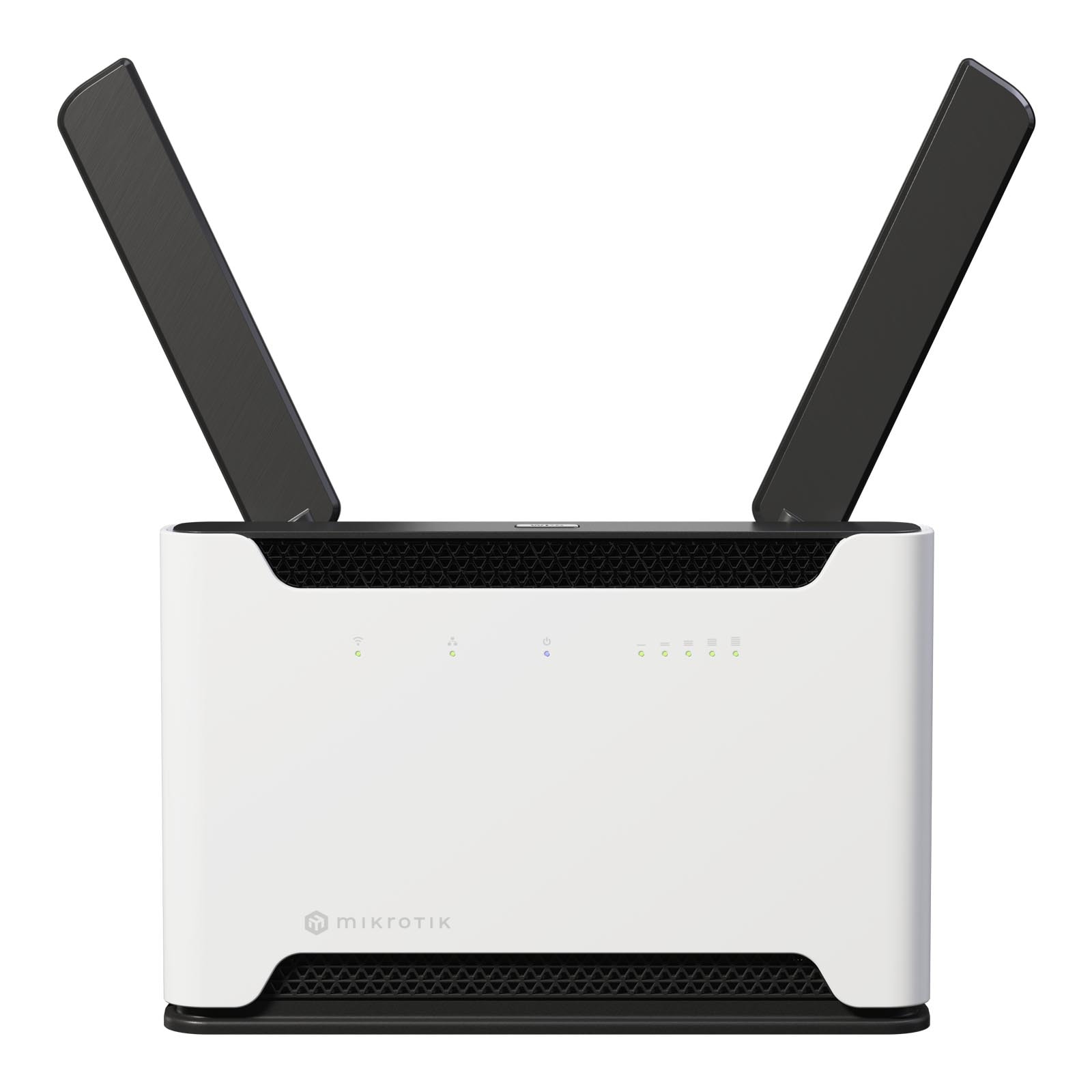

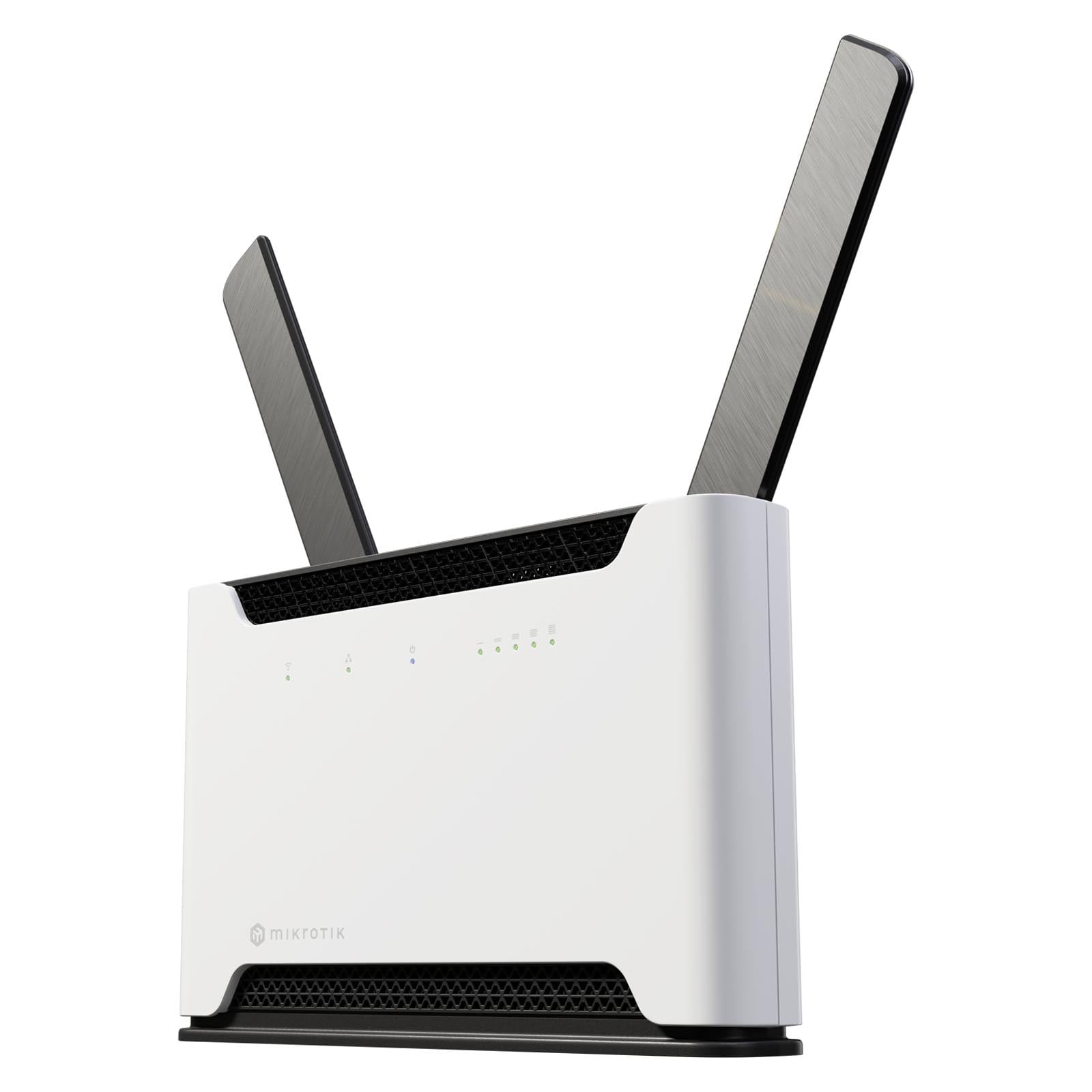

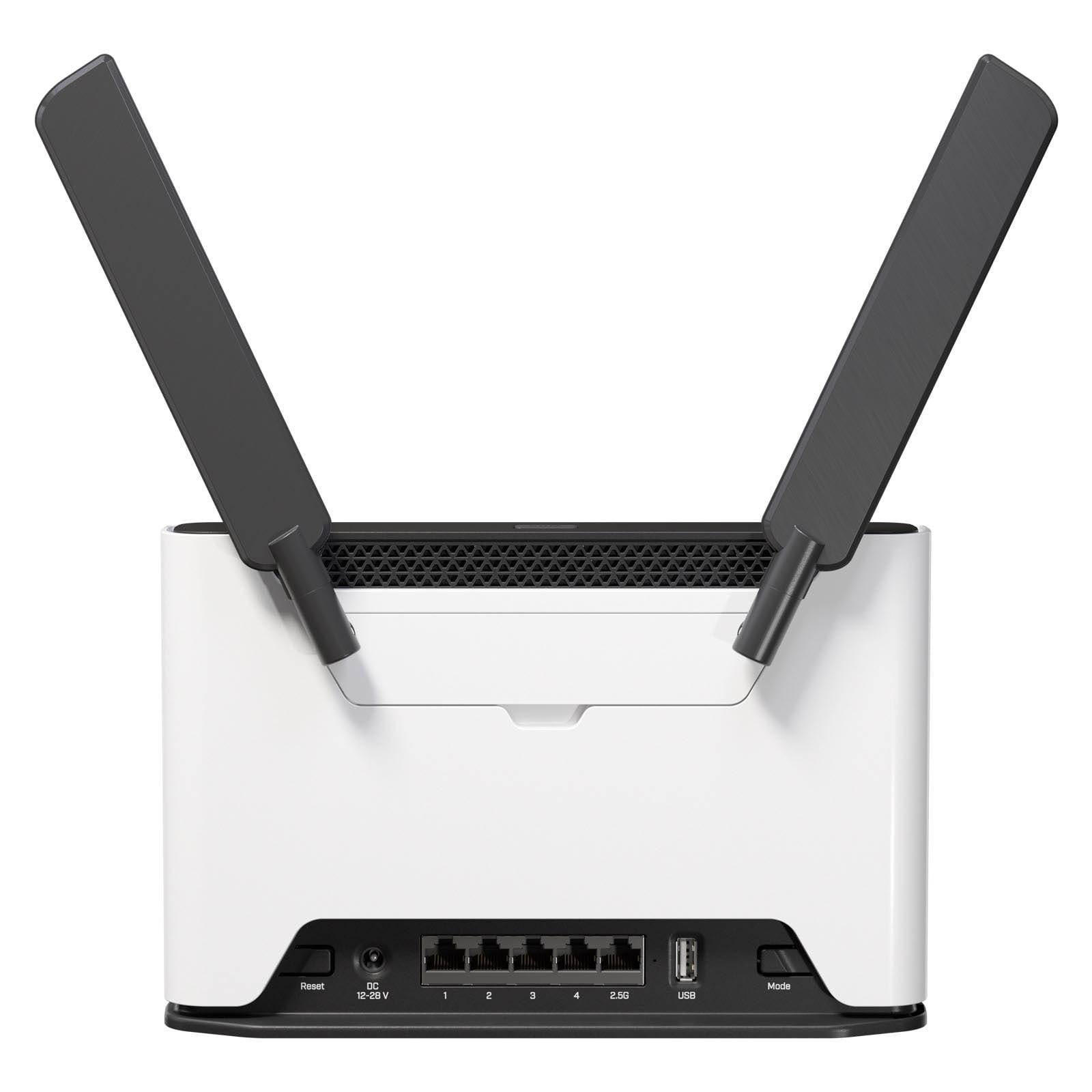

MikroTik Chateau 5G R17 ax Dual-Band Wi-Fi 6 Home Router 2.5 Gigabit Ethernet Port
- SKU: S53UG+5HaxD2HaxD-TC&RG650E-EU
- Manufacturer: MikroTik
- Data Sheet: Download
Product Information
Chateau 5G R17 ax Dual-Band Wi-Fi 6 Home Router 2.5 Gigabit Ethernet Port
Features:
- 4x Gigabit Ethernet ports
- Quad-core 1.8 GHz ARM CPU
- 1x 2.5 Gigabit Ethernet
- MicroSIM & eSIM
- Blazing fast Release 17 5G modem
- 4x4 MIMO
More speed. More bands. More flexibility.
Chateau 5G ax R17 may look familiar – the sleek design, the mighty dual-band Wi-Fi 6 coverage, and all the impressive RouterOS v7 features. But under the hood, everything’s been pushed further.
Now powered by 5G Release 17 cutting-edge modem, Chateau takes full advantage of the latest mobile technologies, including advanced carrier aggregation combinations. That means faster downlink speeds, increased signal stability and responsiveness, even in regions where the mobile tower is far away. Wherever you are, Chateau finds the signal sweet spot.
Wireless that actually delivers
With four powerful built-in LTE/5G antennas and two external dual-chain Wi-Fi 6 antennas, Chateau gives you great performance for download and upload even in a busy, crowded environment
- Smart aggregation with wide regional FDD + TDD band support;
- Extra strong signal pickup thanks to 4x4 MIMO;
- Wi-Fi coverage designed for homes of all sizes, including multi-floor setups.
For secure remote work, play, and everything in between
Chateau runs RouterOS v7, MikroTik’s industrial-grade operating system used by ISPs and sysadmins around the world – but with a simple user-friendly interface that anyone can learn to use. And if you’re not sure about diving deep into the world of networking – no worries, we also have iOS/Android app for even easier installation!
Set up a secure VPN. Optimize streaming. Limit bandwidth. Create VLANs. Block sites. Send SMS alerts when usage peaks. All without subscriptions or paywalls.
Chateau 5G ax R17 is perfect for
- Remote workers who need fast, reliable, secure LTE/5G internet
- Mobile operators looking for modern, simple, affordable TR-069 device management
- Households tired of plastic “black box” routers that limit what they can do
- Anyone ready to ditch slow DSL or patchy Wi-Fi extenders
Specifications
Specifications S53UG+5HaxD2HaxD-TC&RG650E-EU
| CPU | Quad-Core IPQ-6010 Frequency range - auto (864-1800MHz) |
| CPU Architecture | ARM 64bit |
| Size of RAM | 1 GB |
| Storage | 128 MB NAND |
| Number of 1G Ethernet ports | 4 |
| Number of 2.5G Ethernet ports | 1 |
| LTE modem | RG650E-EU |
| USB | 1 USB 2.0 type A |
| SIM slots | Micro SIM, eSIM |
| Wireless interface model | QCN-5022 (2.4 GHz), QCN-5052 (5GHz) |
| Wireless | 2.4 GHz 802.11b/g/n/ax dual-chain, 5 GHz 802.11a/n/ac/ax dual-chain |
| Antenna gain | 3 dBi (2.4 GHz), 6 dBi (5 GHz) |
| LTE modem | RG650E-EU |
| TAC | 86896506 |
| MIMO DL | 4x4 |
| MIMO UL | 2x2 |
| 5G SA Category | 7.01 Gbps Downlink, 1.25 Gbps Uplink |
| 5G SA FDD bands | 1 (2100MHz) / 3 (1800MHz) / 5 (850MHz) / 7 (2600MHz) / 8 (900 MHz) / 20 (800 MHz) / 26 (850 MHz) / 28 (700 MHz) / 67 (700 MHz) / 75 (1500 MHz) / 76 (1500 MHz) |
| 5G SA TDD bands | 38 (2600MHz) / 40 (2300MHz) / 41 (2500MHz) / 77 (3700 MHz) / 78 (3500 MHz) 5G NSA Category 5.47 Gbps Downlink, 730 Mbps Uplink |
| 5G NSA FDD bands | 1 (2100MHz) / 3 (1800MHz) / 5 (850MHz) / 7 (2600MHz) / 8 (900 MHz) / 20 (800 MHz) / 26 (850 MHz) / 28 (700 MHz) / 67 (700 MHz) / 75 (1500 MHz) / 76 (1500 MHz) |
| 5G NSA TDD bands | 38 (2600MHz) / 40 (2300MHz) / 41 (2500MHz) / 77 (3700 MHz) / 78 (3500 MHz) LTE Category 20 (2.0 Gbps Downlink, 211 Mbps Uplink) |
| LTE FDD bands | 1 (2100MHz) / 2 (1900MHz) / 3 (1800MHz) / 5 (850MHz) / 7 (2600MHz) / 8 (900 MHz) / 20 (800MHz) /28 (700MHz) / 32 (1500 MHz) |
| LTE TDD bands | 38 (2600MHz) / 40 (2300MHz) / 41 (2500MHz) / 42 (3500MHz) / 43 (3700MHz) 3G Category R8 (42.2Mbps Downlink, 5.76Mbps Uplink) |
| 3G bands | 1 (2100MHz) / 5 (850MHz) / 8 (900MHz) |
| Operating system | RouterOS v7, License level 4 |
| Operating temperature | -40°C to +70°C |
| Powering | |
| Number of DC inputs | 1 |
| DC jack input Voltage | 12-28 V |
| Power adapter nominal voltage | 24 V |
| Power adapter nominal current | 1.2 A |
| Max power consumption (without attachments) | 16 W |
| Max power consumption | 26 W |
