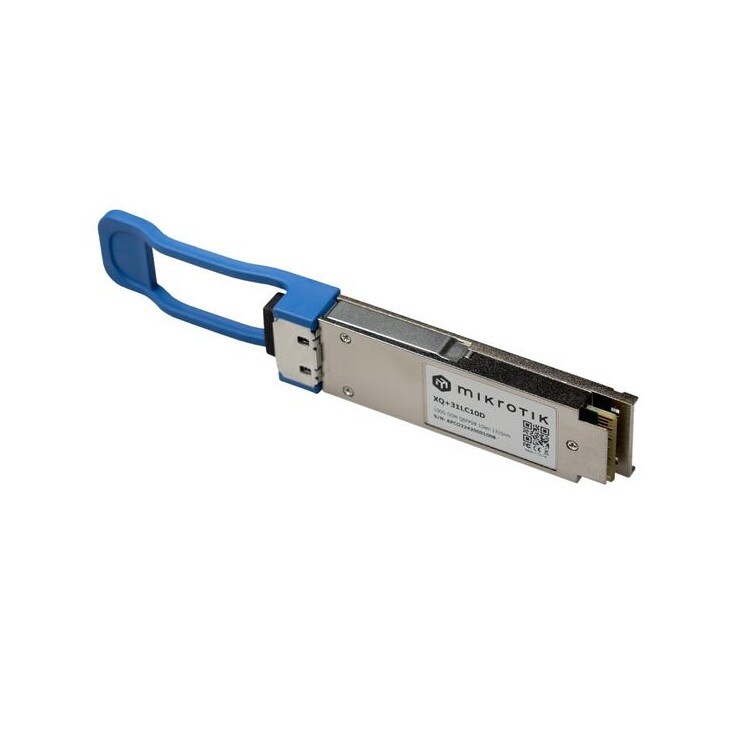

MikroTik QSFP28 40G / 100G SM 10km 1310nm Module
- SKU: XQ+31LC10D
- Manufacturer: MikroTik
- Data Sheet: Download
Product Information
Add this MikroTik QSFP module for distances up to 10 kilometers (6.21 miles) to your CCR2216, CRS504, or CRS518 setups and enjoy actual speed and ultimate reliability. This optical module offers four independent full-duplex channels with up to 25Gbps per channel bandwidth and an aggregate bandwidth of 100Gbps.
The module has built-in digital diagnostic functions such as optical power, transceiver supply voltage, temperature, laser bias current monitoring, and other critical parameter monitoring. These options can be helpful not only to alert the user during abnormal transceiver activity and if specific customizable operating limits are exceeded. Monitoring lets you plan, make informed decisions, and predict necessary upgrades or maintenance based on the transceivers' performance.
Specifications
Specifications XQ+31LC10D
| Weight | 0.12 lb | |
| Connector | LC | |
| Data rate | 100G | |
| Distance | 10km | |
| Format | QSFP28 | |
| Mode | SM | |
| Wavelenght | 1296, 1300, 1305, 1309 nm | |
| Max power consumption | 4.5W | |
| Temperature | 0°C .. +70°C |
| Optical characteristics | Min. | Max. | |
| Transmitter | |||
| Output optical power (Avg.) | -4.3 dBm | 4.5 dBm | |
| Receiver | |||
| Rx sensitivity (Avg.) | -8.6 dBm | ||
| Max input optical power (Avg.) | 4.5 dBm | ||
| LOS de-assert(Avg.) | -12 dBm | ||
| LOS assert (Avg.) | -25 dBm |
