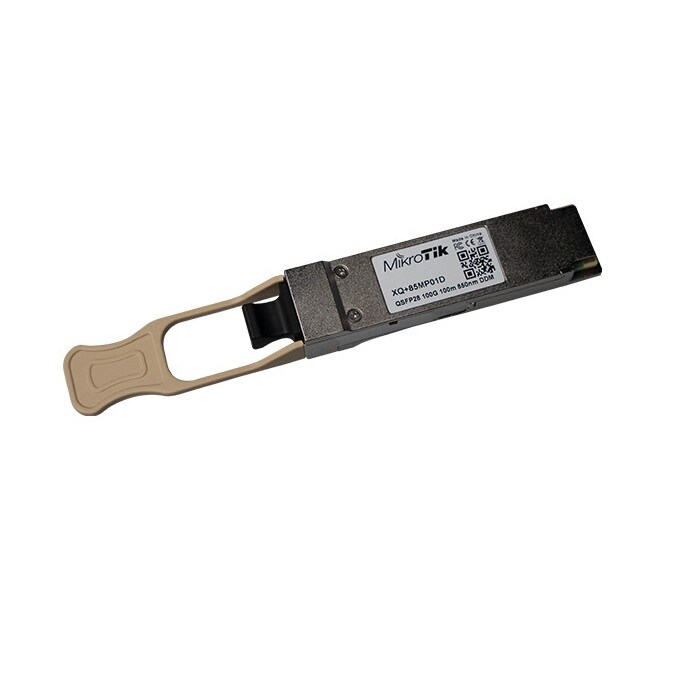

MikroTik QSFP28 40G / 100G MM 100m 850nm Module
- SKU: XQ+85MP01D
$86.33 $89.00
+ $4.65 Tariff
- Manufacturer: MikroTik
- Data Sheet: Download
Product Information
Add this QSFP module for distances up to 100 meters to your CCR2216, CRS504, or CRS518 setups and enjoy real speed and ultimate reliability. This optical module offers four independent full-duplex channels with up to 25Gbps per channel bandwidth and an aggregate bandwidth of 100Gbps. The module has built-in digital diagnostic functions such as optical power monitoring. This optical module with MTP/MPO connector requires a Female-Female Type-B polarity MTP/MPO-12 optical cable.
MikroTik SFP / SFP+ / SFP28 / QSFP+ / QSFP28 compatibilitySpecifications
Specifications
| Format | QSFP28 |
| Connector | 1 x 12 MTP/MPO |
| Max data rate | 100G |
| Mode | Multi-mode |
| Temperature | 0°C to +70°C |
| Wavelength | 850 nm |
| Distance | 100 m |
| Optical characteristics | Min. | Max. |
| Transmitter | ||
| Output optical power (Avg.) | -8.4 dBm | 2.4 dBm |
| Receiver | ||
| Rx sensitivity (Avg.) | -5.2 dBm | |
| Max received pwr | 3.4 dBm | |
| LOS de-assert(Avg.) | -13 dBm | |
| LOS assert (Avg.) | -30 dBm |
