Product Information

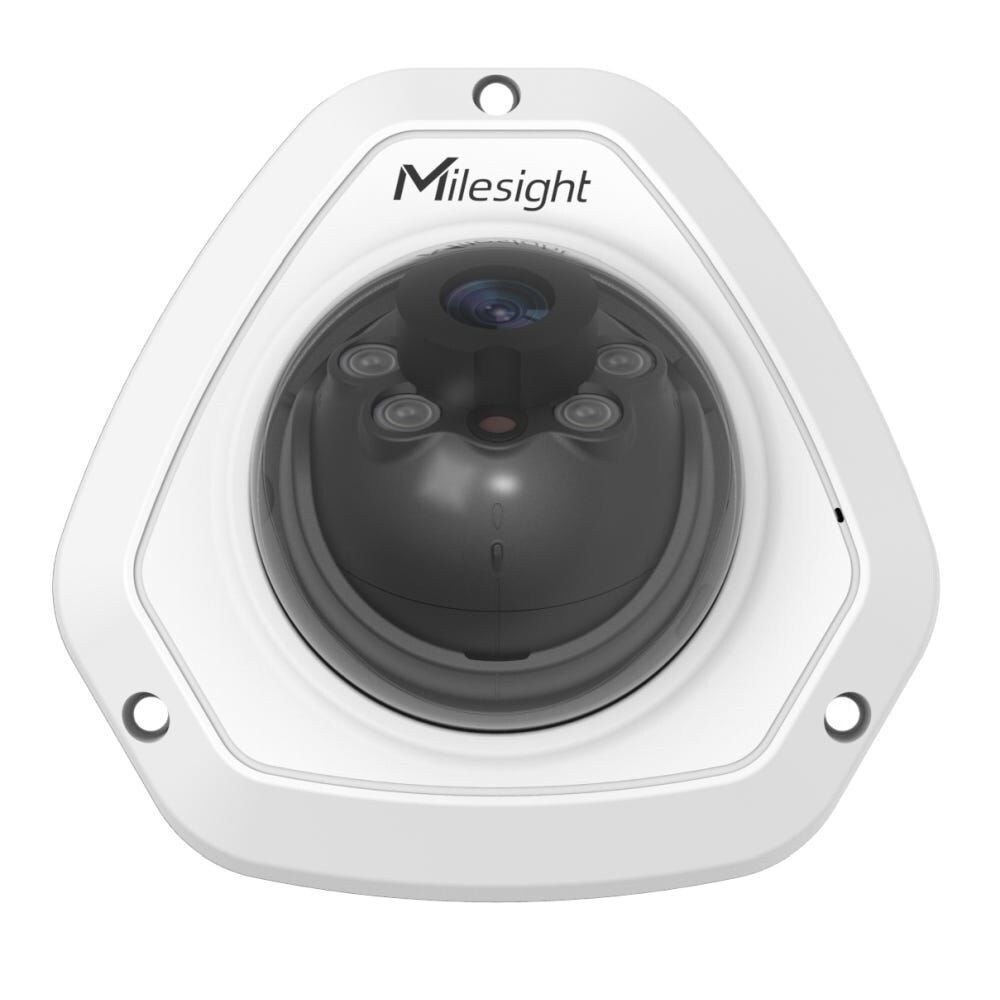

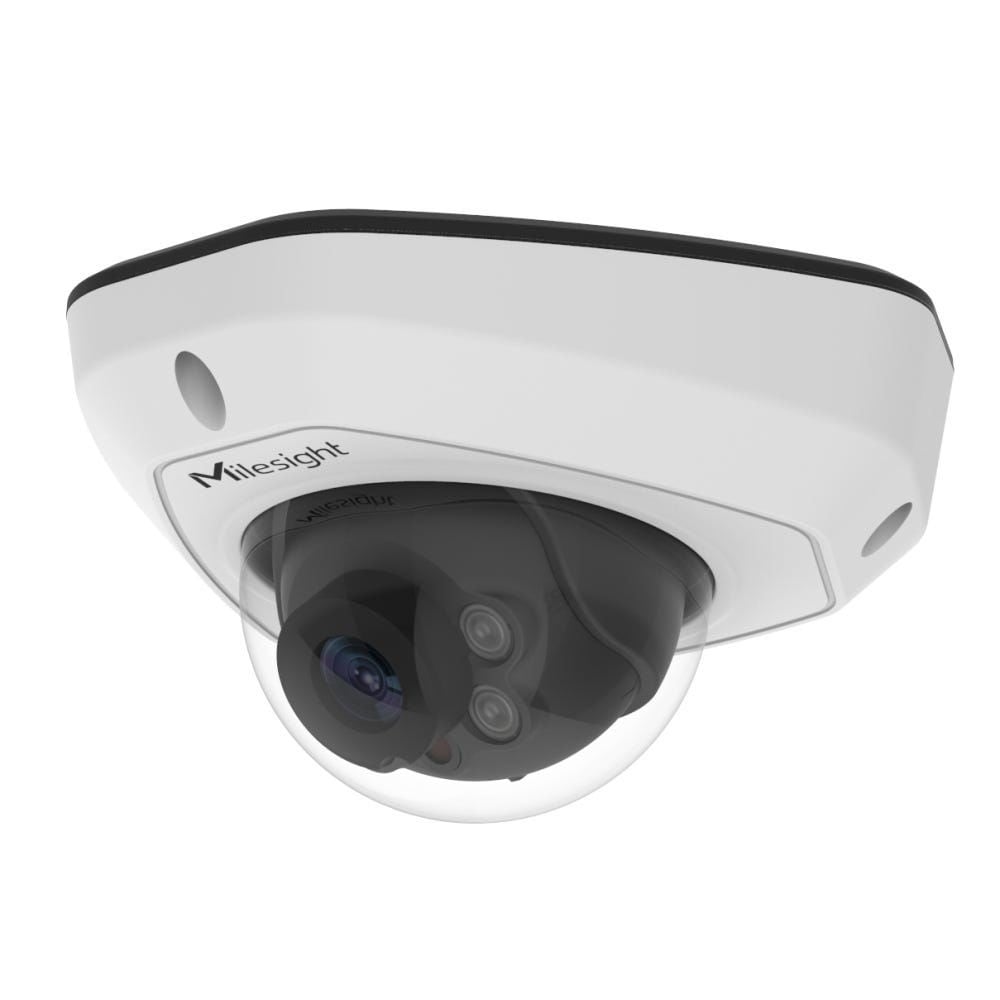

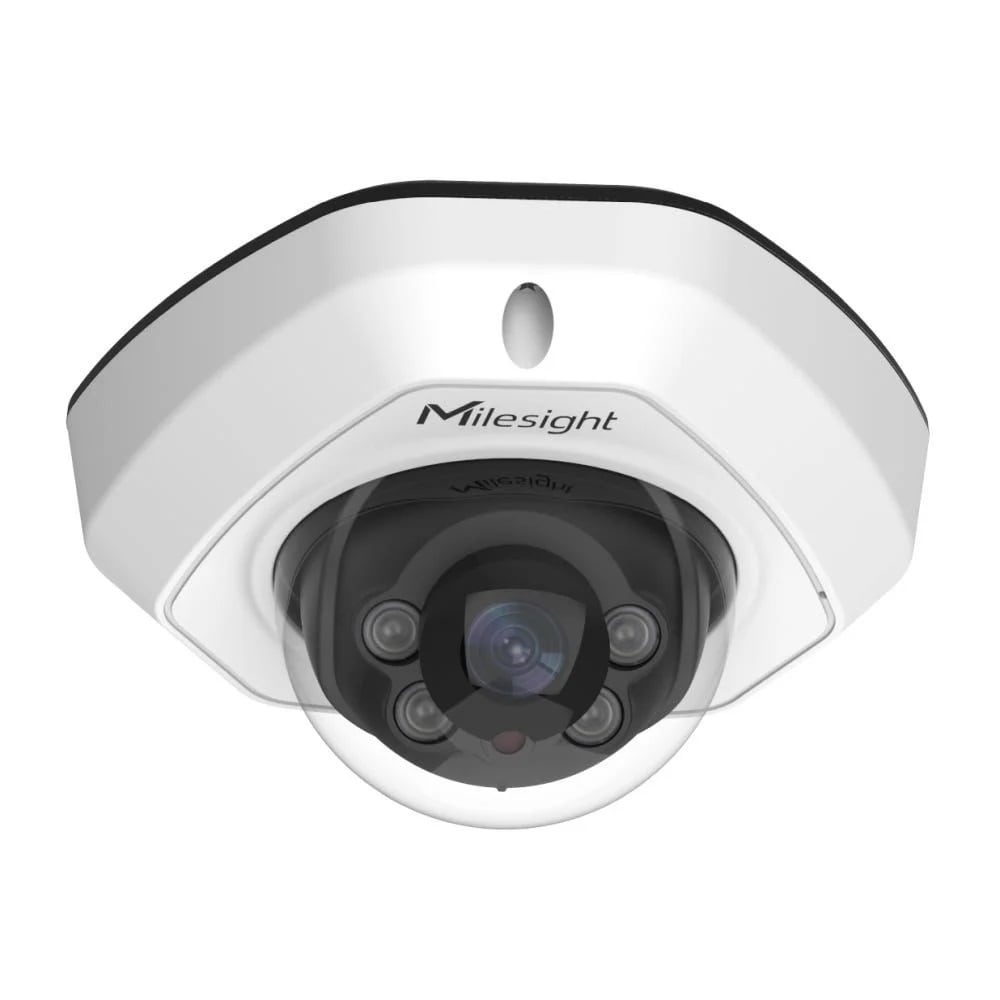

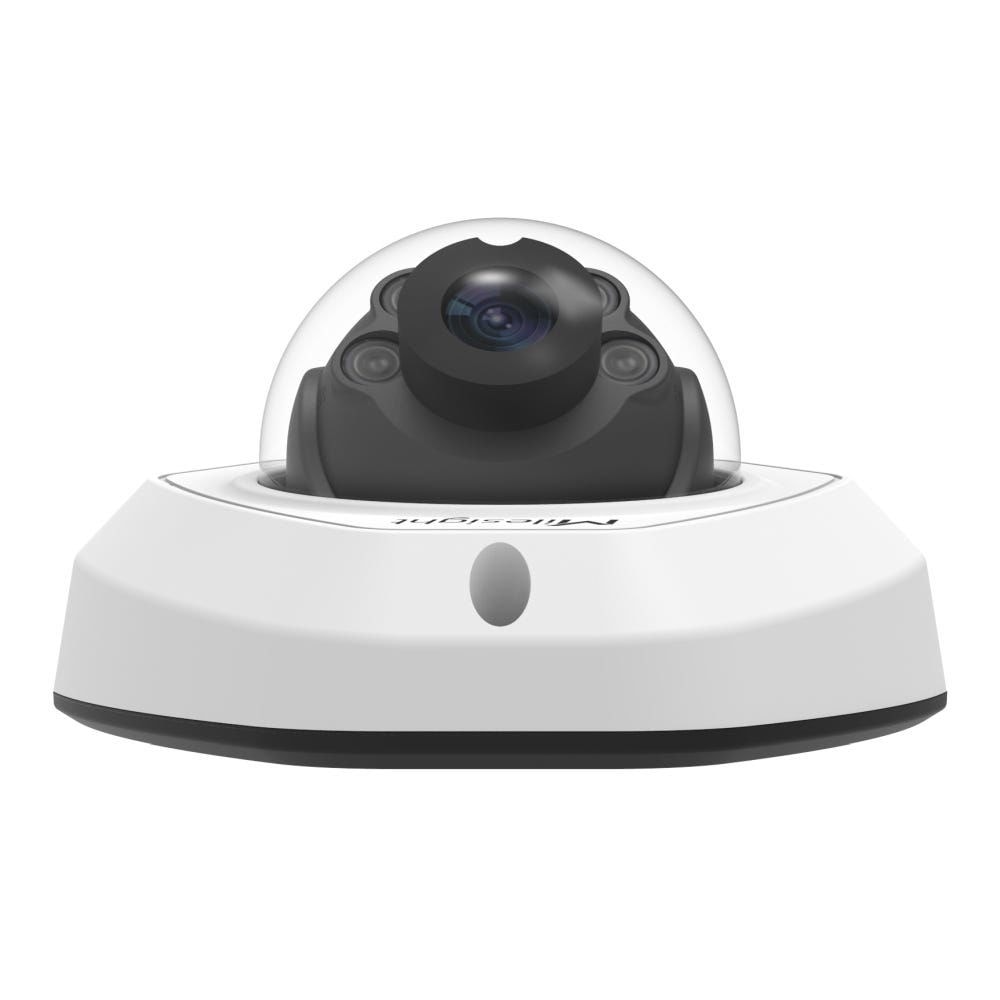

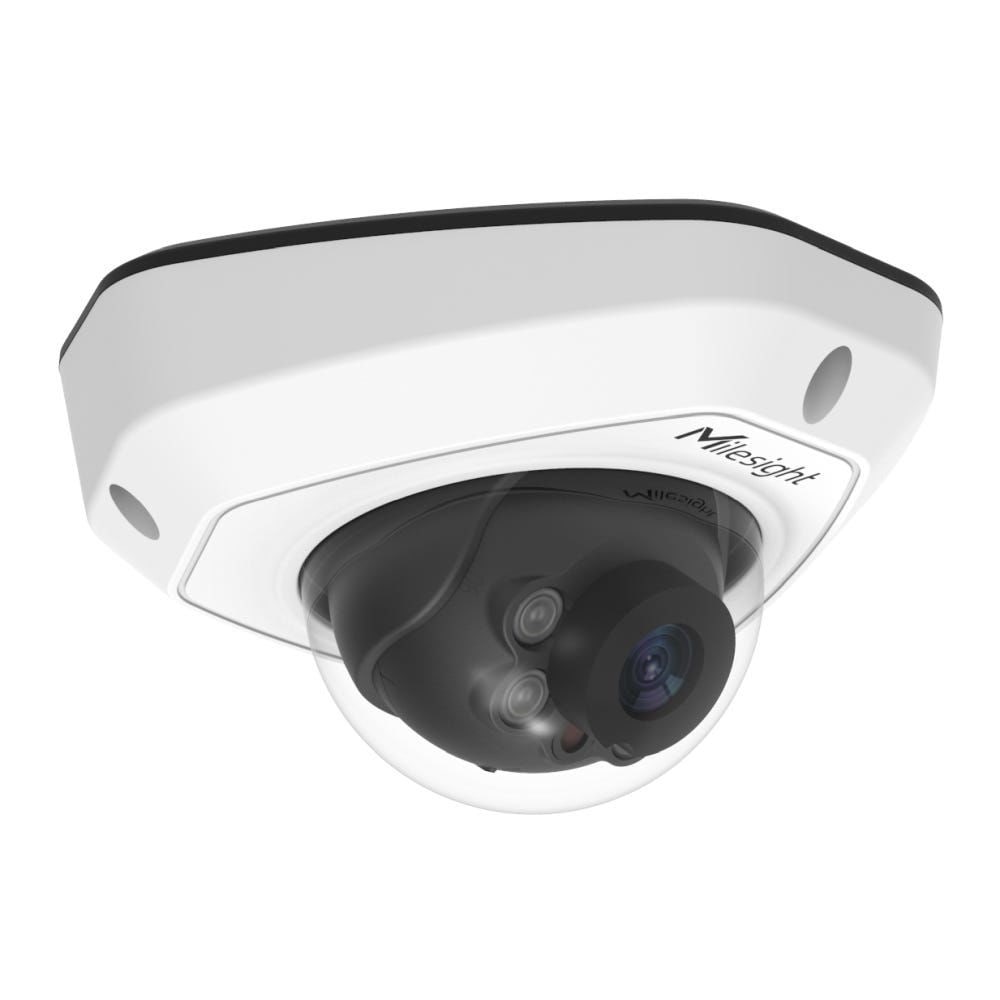

2MP AI Vandal-proof Mini Dome Network Camera
Specifications
Specifications MS-C2973-PD
| Camera | |
| Image Sensor | 1/2.8″ Progressive Scan CMOS |
| Min. Illumination | Color: 0.005Lux@F1.6 B/W: 0Lux with IR on |
| WDR | 120dB Super WDR |
| Lens | 2.8mm/4mm/6mm@F1.6 |
| Mount | M12 |
| Field of View | H111°/D128°/V61°(2.8mm) H91°/D106°/V50°(4mm) H55°/D63°/V32°(6mm) |
| Shutter Time | 1/100000s~1s |
| IR Distance | Up to 30m |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule |
| S/N | >55dB |
| Max. Image Resolution | 1920x1080 |
| Primary Stream | 60Hz: 60fps@(1920x1080)(Optional for R Series), 30fps@(1920x1080, 1280x960, 1280x720, 704x576) 50Hz: 50fps@(1920x1080)(Optional for R Series), 25fps@(1920x1080, 1280x960, 1280x720, 704x576) |
| Secondary Stream | 60Hz: 30fps@(704x576, 640x480, 640x360, 352x288) 50Hz: 25fps@(704x576, 640x480, 640x360, 352x288) |
| Tertiary Stream | 60Hz: 30fps@(1280x720, 704x576, 640x480, 640x360, 352x288) 50Hz: 25fps@(1280x720, 704x576, 640x480, 640x360, 352x288) |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG |
| Video Bit Rate | 16Kbps~16Mbps(CBR/VBR Adjustable) |
| Privacy Masking | Up to 4 areas |
| ROI | Up to 8 areas |
| Image Setting | Brightness/Contrast/Saturation/Sharpness |
| Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Audio I/O | Built-in Microphone; 1/1 (Multi-interface Version) |
| Alarm I/O | 1/1 (Multi-interface Version) |
| Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
| Protocol | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/48KHz |
| Audio Bit Rate | 16~256kbps |
| Two-way Audio | Support |
| Video Analysis | Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed |
| Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 256G |
| Advanced Function | BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur |
| SIP/VoIP Support | Yes, Voice & Video-over-IP |
| Event Trigger | Motion Detection, Network Disconnection, Audio Alarm, etc.; Motion Detection, Network Disconnection, External Input, Audio Alarm, etc. (Multi-interface Version) |
| Event Action | FTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc.; FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc. (Multi-interface Version) |
| System Compatibility | ONVIF Profile G & Q & S & T, API |
| Working Temperature | -40℃~60℃ |
| Working Humidity | 0~90%(Non-condensing) |
| Power Supply | PoE (802.3af); PoE (802.3af) / DC 12V±10% (Multi-interface Version) |
| Power Consumption | 3W MAX 4.7W MAX (With IR on) |
| Housing | Up to IP67-rated for Weather-resistant Performance; Vandal-proof IK10-rated Metal Housing |
| Weight | 500g (1.10 lbs) |
| Dimensions | 118.5mmX110.8mmX65mm 4.66 x 4.36 x 2.55 inch |
| Warranty | 3/5 Years |
