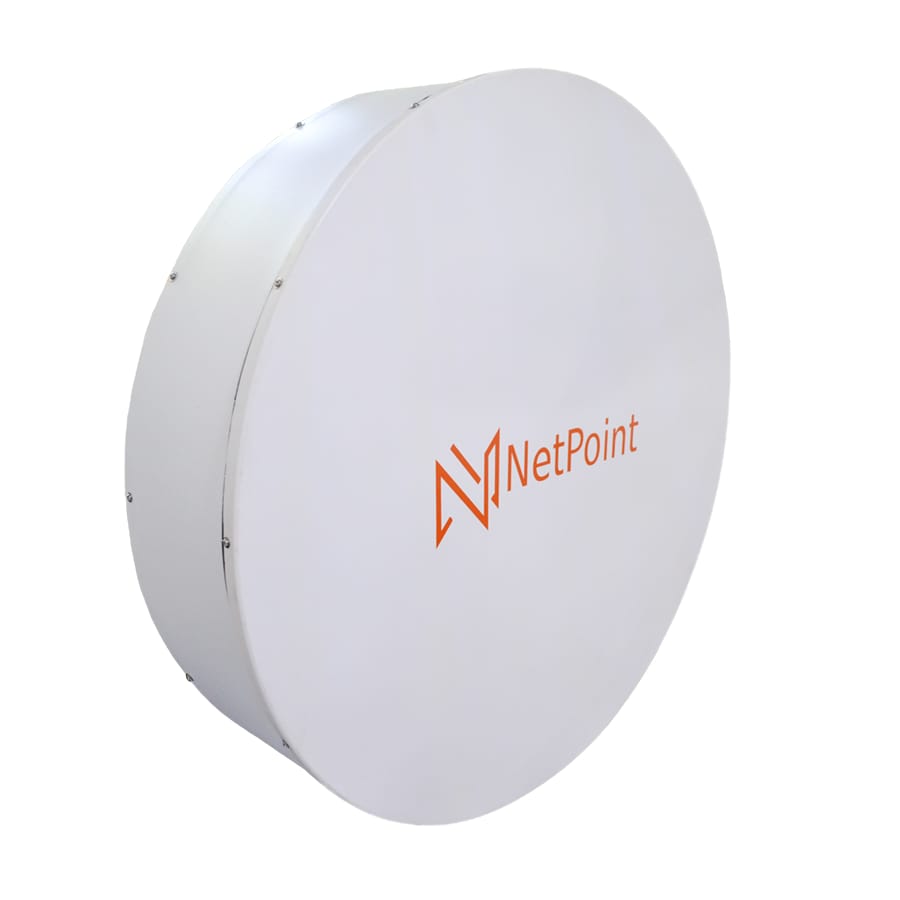

NetPoint 2FT 4.9-6.4GHz 30dBi High Performance Antenna
- SKU: NPX5-HP-2FT
$628.47
- Manufacturer: NetPoint
- Data Sheet: Download
Product Information
NetPoint's NPX5-HP high-performance parabolic antenna is designed to perform very well in both licensed and unlicensed bands with excellent gain. The NetPoint NPX5-HP-2FT model has a Dual polarization, N-Female connector, and exceptional VSRW performance in the 4.9 to 6.4GHz operating band. The antenna is pre-assembled and ready to install, and it is an integrated Radome for high performance and reliable operation in the most demanding conditions. This dish is 2 feet tall and can be used for PTP Backhaul, CPE, and public safety applications.
Product Features
- Gain of up to 30dBi with low VSWR and high port isolation across the entire
- 4.9 - 6.4GHz frequency band
- One antenna that covers 5 and 6Ghz
- Simplifies installation on-site and guarantees “factory-tested” quality
- Connector type N-Female
Product Includes
- 2FT High-Performance Parabolic Antenna
- Radome
- N-Female to RP-SMA Pigtails
Specifications
Specifications NPX5-HP-2FT
| Antenna type | Shielded parabolic antenna |
| Frecuency | 4.9 - 6.4 Ghz |
| Connector type | Female N |
| Gain (dBi) | 28, 29, 30 4.9GHz, 5.4GHz and 5.7GHz |
| VSWR HPOL | <2.0 |
| Beamwidth VPOL | 5.5° |
| Beamwidth HPOL | 5.0° |
| Return loss | 9.54 |
| ISO (dB) | 30 |
| Radius F/B (dB) | 39 |
| Polarization | Dual slant |
| Wind max survival speed (MPH) | 124.27 miles with Radome |
| Azimuth adjustment | +/- 60 degrees |
| Elevation adjustment (°) | +/- 15 degrees |
| Mounting Pipe Diameter, Min | 1 inch - 25.4mm |
| Mounting Pipe Diameter, Max | 2.750 inch 69.86mm |
| Operating temperature (C°) | -49 to +140 F° | -45 to +60 C° |
| Connector type | Dual N-Female with pigtails for RP-SMA |
| Lenght of Pig tail | 2ft - 600 mm |
| Gross weigh (Kg) | 44.1 lbs |
| Dimensions, L x W x H | 19.69 x 28.35 x 28.35in |
