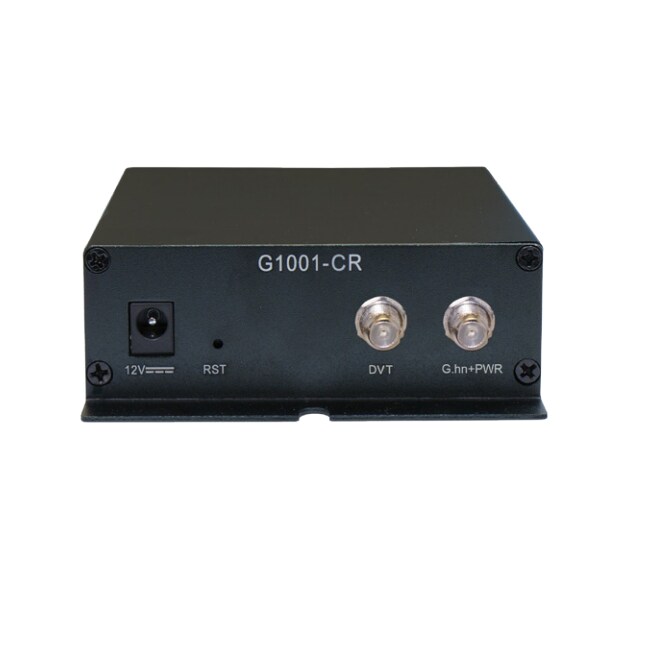

Positron Access G1001-CR G.hn (COAX) To Gigabit Ethernet Bridge
- SKU: G1001-CR
$177.45
- Manufacturer: Positron Access
- Data Sheet: Download
Product Information
G.hn (COAX) to Gigabit Ethernet Bridge. AC Wall Adapter included. RPF Support, acts as PSE.
Specifications
Specifications G1001-CR
| Dimensions | 3.7” Width x 1.35” Height x 6.7” Depth / 95 mm W x 34.3 mm H x 169.5 mm D |
| LED | RPF, Short, Open, Bad, G.hn, Power, Status and Gigabit Port link/active |
| Power Source | 12 VDC / 2A power adapter (included with the G1001-MR and G1001-CR devices) |
| Power Consumption | The G1001 devices draw power for their own operation (no more than 3W) and for the |
| Reverse Power Feed | Complies with ETSI TS 101 548 v.2.2.1 |
| Certification | CE Mark, FCC Part 15 Class B |
| Operating Temperature | 0ºC to +40ºC |
| Storage Temperature | -40ºC to +70ºC |
| Operating Humidity | 5% to 95% relative, non-condensing |
| G.hn Specification | |
| G.hn Standards | G.hn Wave-2 Client Based on GigaWire Alliance specification and fully compliant with the following ITU-T standards • G.9960 Amendment 2 - System Architecture and PHY Layer • G.9961 Data Link Layer • G.9962 Management • G.9964 PSD |
| Ease of Deployment | Support G.hn operation over telephone wiring (G1001-MR) or coax cabling (G1001-CR) |
| Point-to-Point and Point-to-Multipoint support | Supports Point-to-Point (twisted pair) with G1001-MR and Point-to-Point / Point-to-Multipoint operation (coax) for up to sixteen (16) G1001-CR per G.hn port |
| Ease of Operation | Automatic firmware and configuration management via the Positron GAM |
| Encryption | AES-128 encryption with individual keys for each end-node under the control of the Positron GAM acting as the Master Node |
| Modulation and Frequency Band | Supports OFDM 200 MHz (Singe Input Single Output - SISO) on a single pair or OFDM 100 MHz (Multiple Input Multiple Output – MIMO) on two (2) pairs per port Neighbor Domain Interface Mitigation (NDIM) Radio Band Notching function allows cohabitation with legacy Analog Cable TV channels over coax |
| Bandwidth Management with Dynamic Time Allocation | Up to 1.7 Gbps with Dynamic Time Allocation to optimize throughput based on nature of traffic flows with TDD Multiplexing for programmable upstream / downstream ratio |
| Vectoring (Telephone Wiring) | Support for VectorBoostTM vectoring for FEXT (Far-End Crosstalk) mitigation and improved performance over Telephone wiring |
| Mitigation of Near-end Crosstalk | Near End Crosstalk (NEXT) Mitigation and support for Neighbor Domain Interface Mitigation (NDIM) |
| Reliability and Resiliency | State of the art LDPC Forward Error Correction (FEC) |
