Product Information

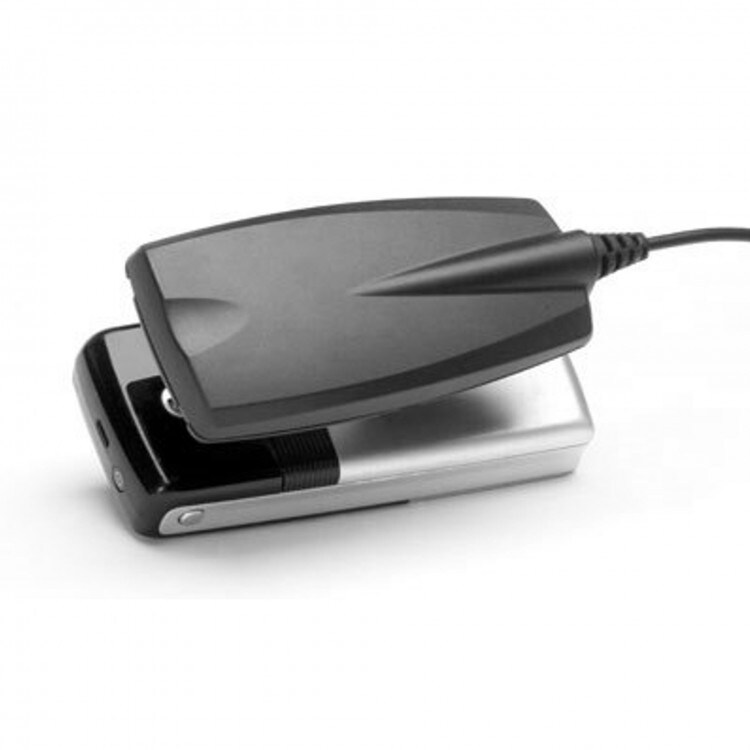

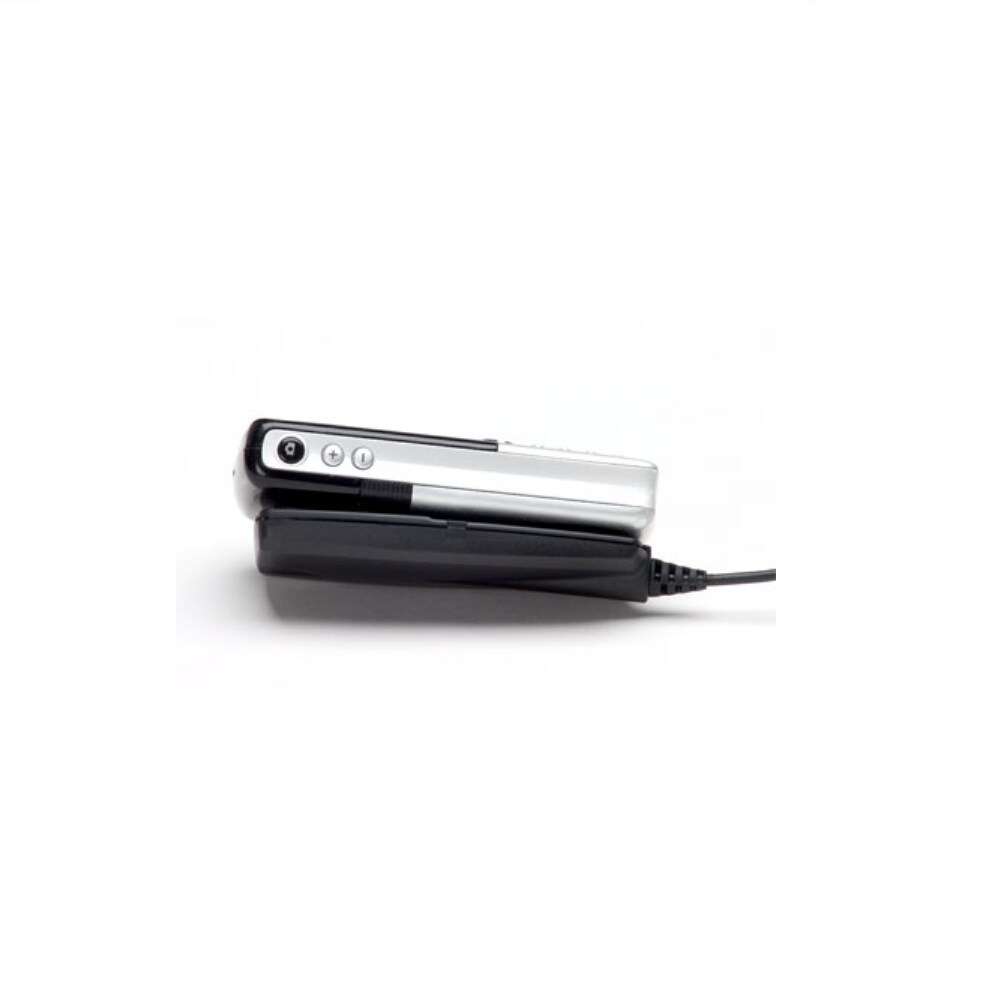

Poynting Generic Phone-to-Antenna Adaptor (SMA f)
Specifications
Specifications AT-ADPT-024
Electrical
| Frequency Bands 1 | 698 - 960 MHz, 1710 - 2700 MHz |
| VSWR (Coupled): | < 3:1 |
| VSWR (Free Space): | < 3:1 |
| Feed power handling | 10 W |
| Cable loss | 0.35dB/m @900 MHz 0.53dB/m @ 2000 MHz |
| DC Short | 10 |
| Nominal input impedance | 50 Ohm |
| Polarisation | Linear |
Environmental
| Wind Loading | NA |
| Temperature Range | - 20° C to +50° C |
| Environmental Conditions | Indoor |
| Operating Relative Humidity | Up to 98% |
| Storage Humidity | 5% to 95% - non condensingMechanical |
| Storage Temperature | -20°C to +50°C |
Mechanical
| Dimensions (l x w x d) | 80 mm x 45 mm x 15 mm |
| Weight | 29g |
| Plastic Materials | ABS (Halogen Free) |
| Plastic Colour | RAL Black |
