Product Information

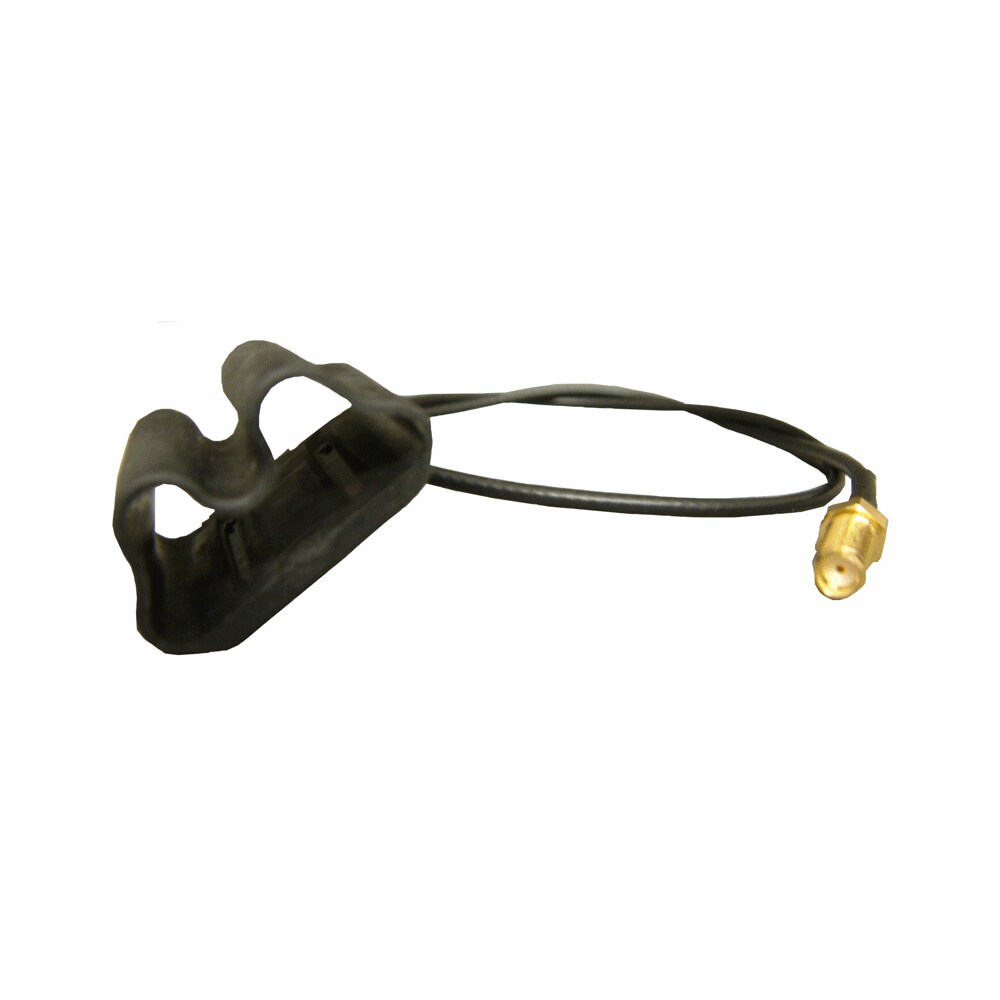

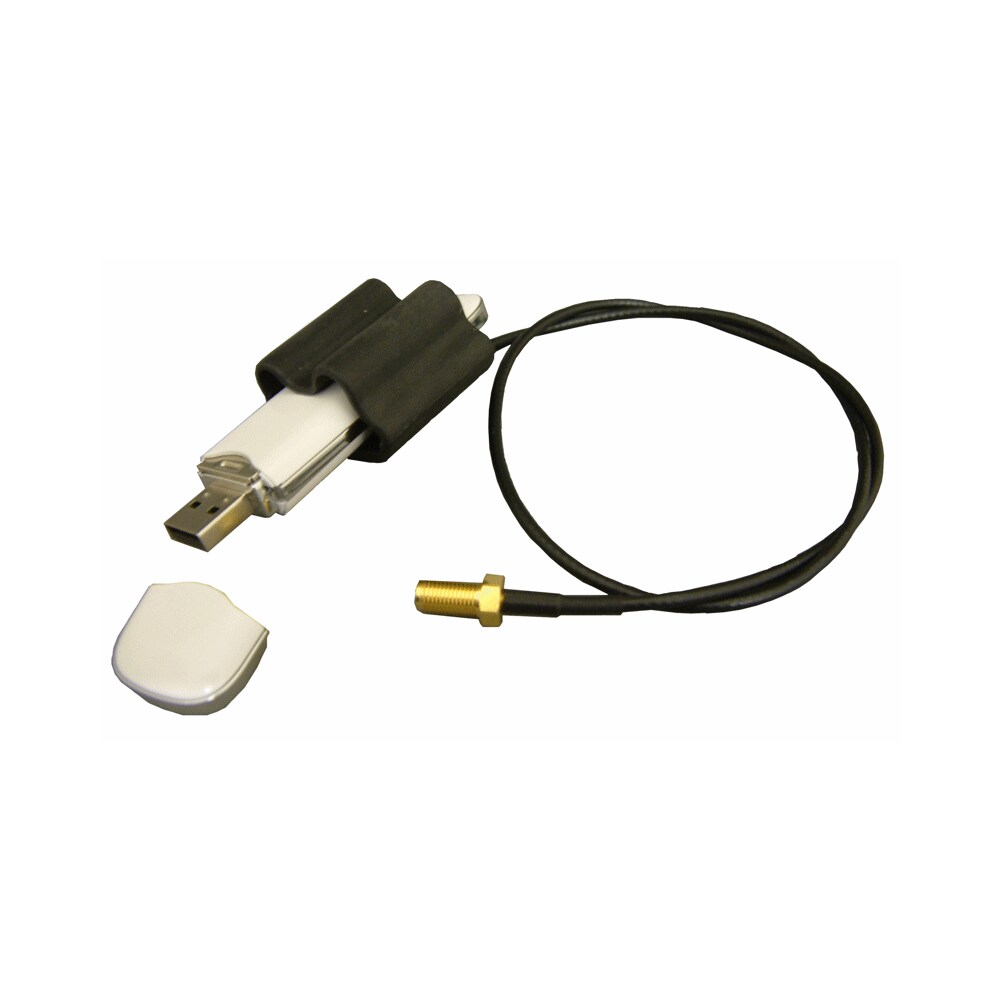

Poynting Generic USB Modem-to-Antenna Adaptor (SMA f)
Specifications
Specifications AT-ADPT-026
Electrical
| Frequency Bands | 698 - 960 MHz,1710 - 2700 MHz |
| VSWR (Coupled) | < 3:1 |
| VSWR (Free Space) | < 3:1 |
| Feed Power Handling | 10 W |
| Input impedance | 50 Ohm (nominal) |
| Polarisation | Linear |
Environmental
| Temperature Range | - 20° C to +50° C |
| Environmental Conditions | Indoor |
| Operating Relative Humidity | Up to 98% |
| Storage Temperature | -20°C to +50°C |
Mechanical
| Dimensions (l x w x d) | 45 mm x 36 mm x 22 mm |
| Weight | 20g |
| Colour | Black |
