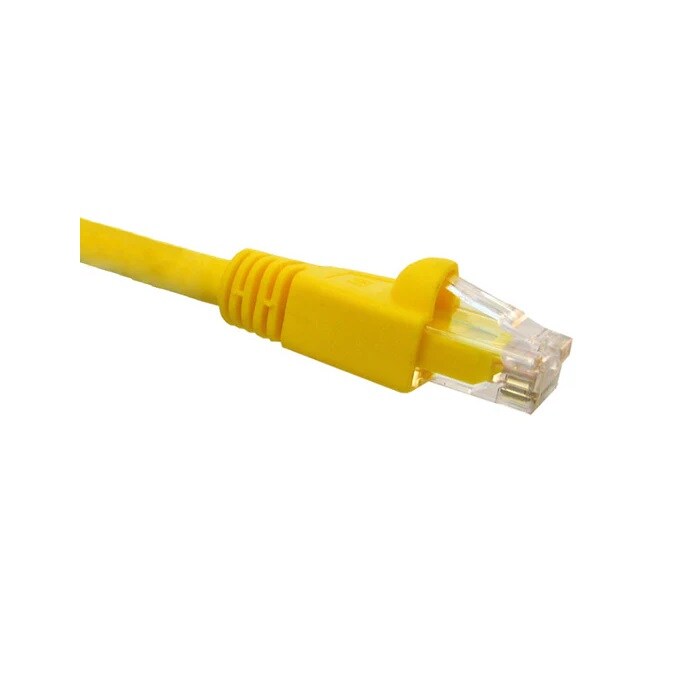

Primus Cable CAT6A Ethernet Patch Cable, 10G, Snagless Molded Boot, RJ45 - RJ45, 15ft, Yellow
- SKU: PC6A-2730-15YL
- Manufacturer: Primus Cable
- Data Sheet: Download
Product Information
CAT6A Ethernet Patch Cable, 10G, Snagless Molded Boot, RJ45 - RJ45, 15ft, Yellow
Our CAT6A Patch Cables are great for 10G Data Networks and are great for office applications including indoor voice, data, video, and security networking applications. Our CAT6A patch cables are designed to lower cable Alien crosstalk (AXT) when compared to CAT6 patch cables. Alien crosstalk (AXT) is interference caused by other cables routed close to the cable of interest as opposed to signals contained in the same cable.
Product Quality
Product quality is essential to a reliable network, our CAT6 patch cables are durable, flexible and well-constructed. This patch cable features a PVC jacket, stranded bare copper wire and RJ45 connectors with gold-plated contacts.
Durability & Strength
To make sure we are supplying our customers with high-quality Ethernet cables, we meet and/or exceed CAT6A ANSI/TIA-568-D.2 standards. Our CAT6A patch cables are UL Listed, ETL Verified and RoHS Compliant.
Features:
- High Performance Data Communications Cable
- Category 6A 15' Patch Cable with Snagless Molded Boot
- Great for 10 Gigabit High-Speed Data Applications
- Designed for Indoor Installations
- Category 6A Unshielded Twisted Pair (UTP) Cable
- Stranded Copper Conductors
- 24 AWG Stranded Bare Copper Conductors
- Excellent Attenuation and Crosstalk Characteristics
- Factory Machine Made and Injection Molded
- Snagless Boot Design for Easy Handling
- Gold Plated Contacts
- UL Listed
- ETL Verified
- RoHS Compliant
Specifications
Specifications PC6A-2730-15YL
| Physical | |
| Conductor Size | 24AWG |
| Conductor Material | Stranded Bare Copper |
| Number of Conductors | 8 Conductors |
| Number of Pairs | 4 Pairs |
| Min. Bend/Installation | ≤8D |
| Outer Jacket Material | PVC (Complies RoHS) |
| Contact Material | Copper |
| Contact Plating | Gold Plated |
| Storage Temperature | -20°C ~ 70°C |
| Operating Temperature | -10°C ~ 60°C |
| Applications | • 10GBASE-T; 1000BASE-T; 100BASE-T; 10BASE-T • 4/16 Mbps Token Ring (IEEE 802.5); 100 VG-AnyLAN • 100 Mbps TP-PMD (ANSI X3T9.5); 55/155 Mbps ATM • T1 Voice |
| Electrical Test | 100% open short & miss wire test |
| Insulator Resistance | DC300V 10 Mohm min. |
| Connector Resistance | 2 ohm max. |
| Cable Features | • Rated for 10G Ethernet • Meets or Exceeds CAT6A T568C.2 Standards • Molded Strain-Relief Boot Design • Available in Black • Available in Multiple Lengths • PoE and PoE+ Ready • Backwards Compatible to Category 6, 5E |
| Compliance | • ANSI/TIA-568-C.2 Category 6A • PVC Jacket • CM Rated • RoHS Compliance for the Requirement of European Union Issued Directive 2002/95/EC |
