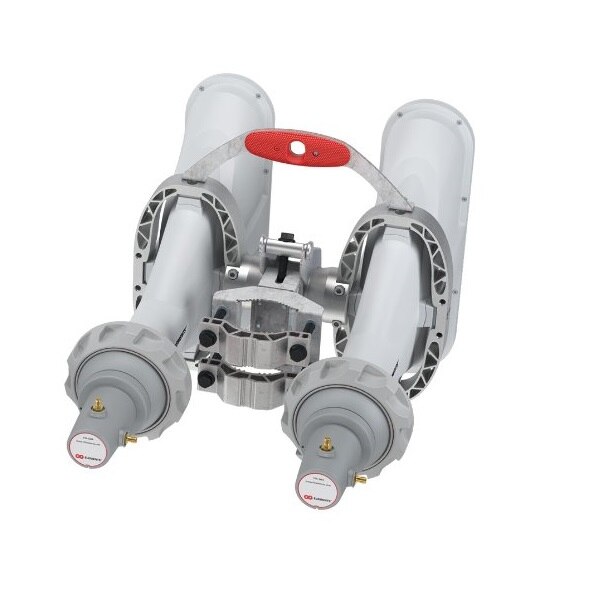

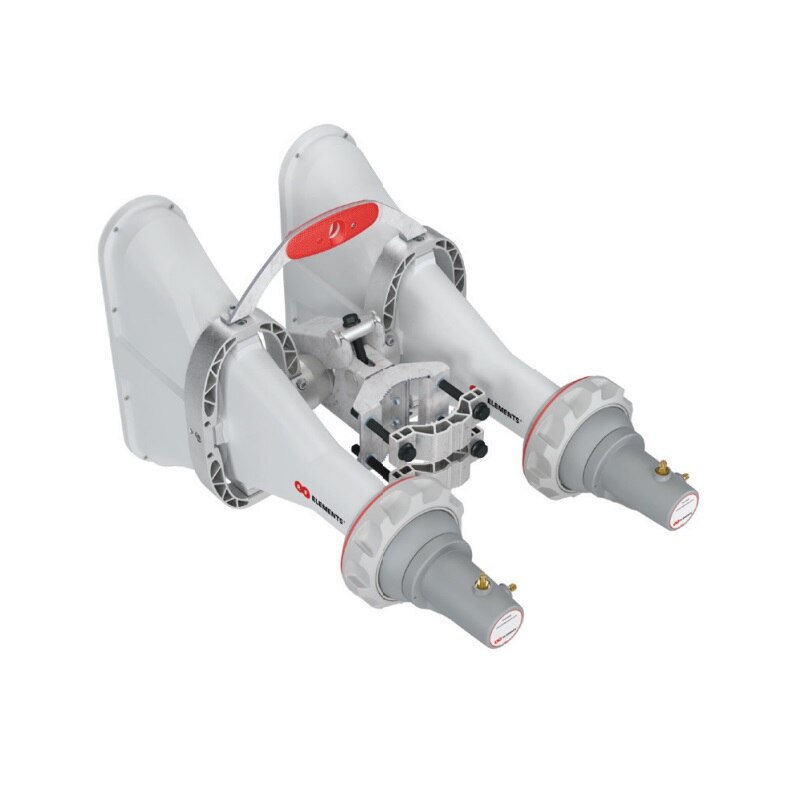

RF elements 5GHz 60° 4x4 Asymmetrical Horn Antenna
- SKU: AH60-4X4-SMA
- Manufacturer: RF Elements
- Data Sheet: Download
Product Information
The RF elements 5GHz 4x4 Asymmetrical Beam antenna is a high-quality device designed to work well with advanced Wi-Fi equipment like ePMP 3000 and ePMP 4500. Its special arrangement of antenna elements provides a wide coverage area, enabling better internet connections in busy locations.

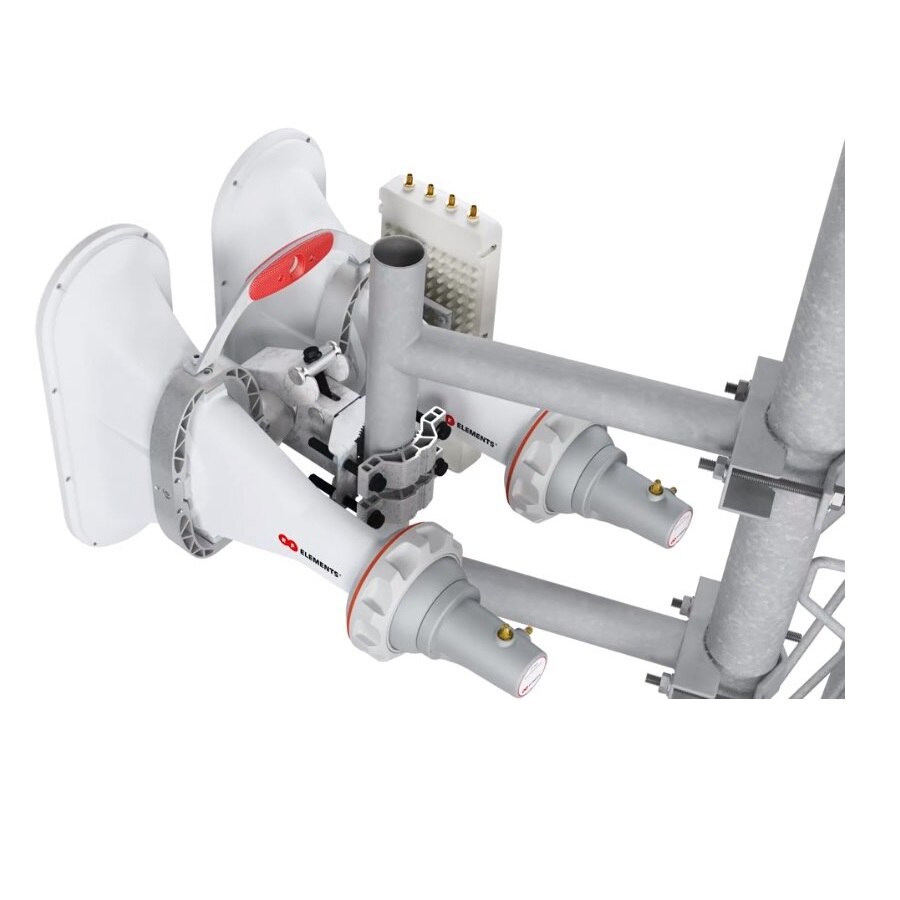

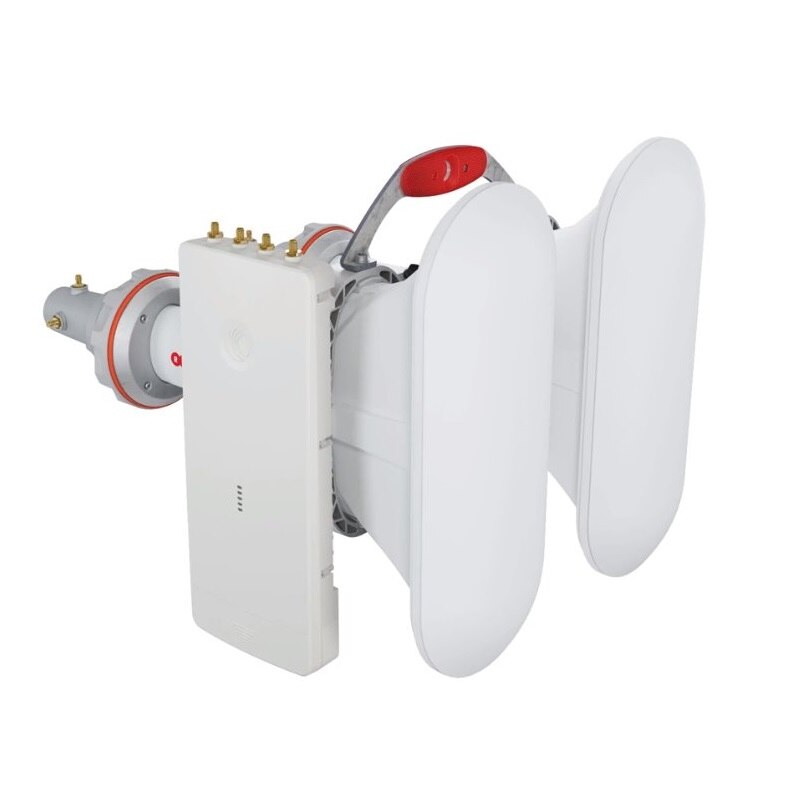

This antenna is known for its ability to reduce interference and maintain a clear signal, making it ideal for places with many access points or where multiple devices connect at once. It includes connectors that are easy to work with and comes with a built-in mount specifically for the ePMP 3000 radio.
Additionally, between 2019 and 2021, the Asymmetrical Horn design earned several awards for its innovative approach, highlighting its effectiveness and reliability in delivering strong wireless performance.
Specifications
Specifications AH60-4x4-SMA
| Radio Connection | 4x RP-SMA Female Connector |
| Pigtails | 4x RP-SMA Male Connector 750mm (29.5 inch) |
| Antenna Type | Horn |
| Materials | UV Resistant ABS Plastic, Polycarbonate, HDPE, Aluminium, Stainless Steel |
| Environmental | IP55 |
| Pole Mounting Diameter | 40-80 mm (1.5-3.1 inch) Recommended as close to 80 mm (3.1 inch) as possible, recommended mounting on stand off bracket |
| Temperature | -35°C to +60°C (-31°F to +140°F) |
| Wind Survival | 160 km/h (100 mi/h) |
| Wind Load | 80/91 N - Front/Side at 160 km/h (100 mi/h)* |
| Effective Projected Area | 630/750 cm2 - Front/Side (97.6/116.2 in2 )* |
| Mechanical Adjustment | ± 20° Elevation |
| Weight | 27.1 lbs |
| Dimension | 14.6” x 20.3” x 15.7” |
| PERFORMANCE | |
| Frequency Range | 5180 - 6000 MHz |
| Gain | 17 dBi |
| Azimuth Beam Width -3 dB | H 45° / V 42° |
| Elevation Beam Width -3 dB | H 17° / V 16° |
| Azimuth Beam Width -6 dB | H 60° / V 60° |
| Elevation Beam Width -6 dB | H 25° / V 25° |
| Beam Efficiency | 90 %** |
| Front-to-Back Ratio | 27 dB |
| VSWR Typical | 1.5 |
| Polarization | Dual Linear H + V |
| Impedance | 50 OHm |
