RF Elements HG3-TP-A90 ( Open Box)
- SKU: HG3-TP-A90 ( Open Box)
$230.00
- Manufacturer: RF Elements
- Data Sheet: Download
Product Information

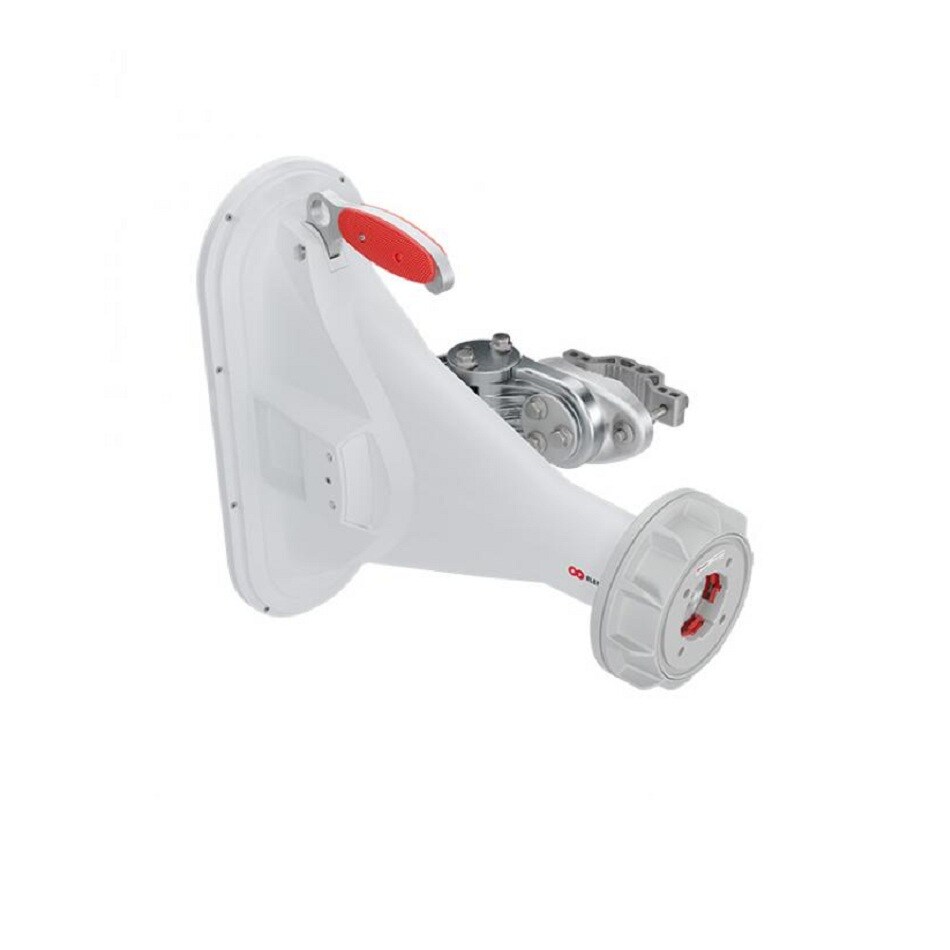

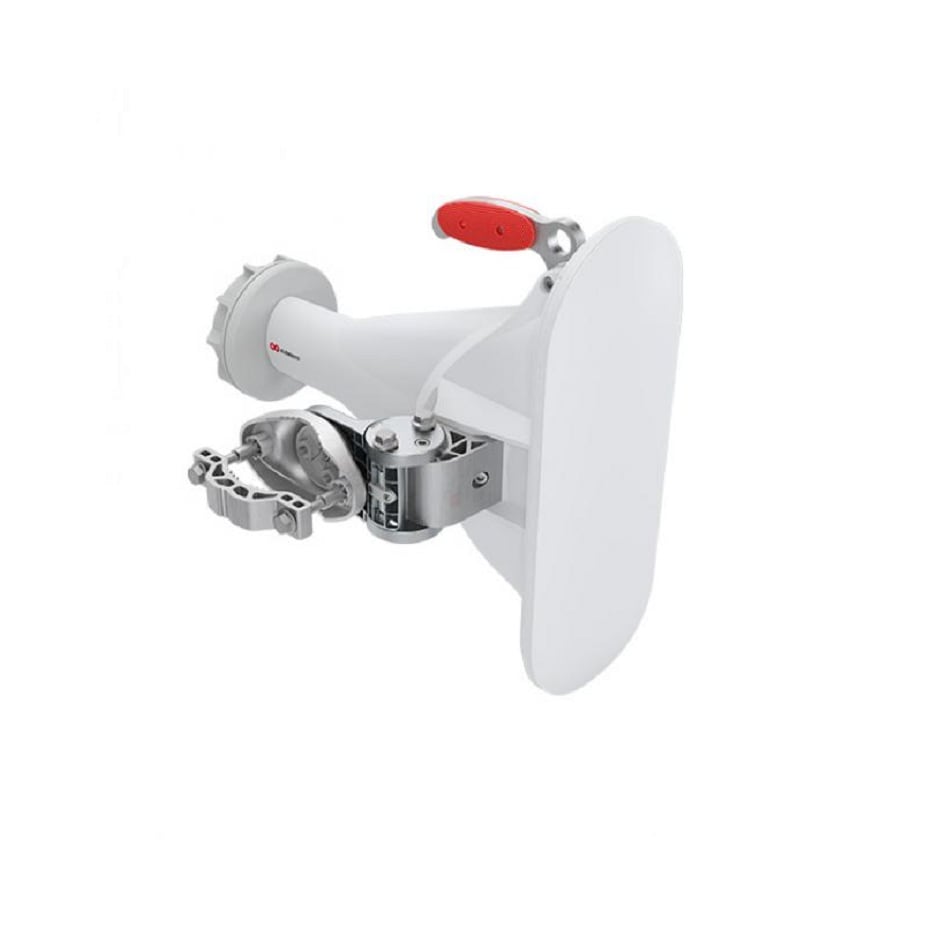

16 dBi 90° Asymmetrical Horn TP Antenna ( Open Box)
Specifications
Specifications HG3-TP-A90
| Antenna Connection | TwistPort™ - Quick Locking Waveguide Port |
| Antenna Type | Horn |
| Materials | UV Resistant ABS Plastic, Polycarbonate, HDPE, Aluminium, Stainless Steel |
| Enviromental | IP55 |
| Pole Mounting Diameter | 36-80 mm (we recommend as close to 80mm as possible) |
| Temperature | -35°C to +55°C (-31°F to +131°F) |
| Wind Survival | 160 km/hour |
| Wind Loading | 76 N at 160km/h |
| Mechanical Tilt | ± 25° Elevation, ± 20° Azimuth |
| Weight | 5.3 Kg / 11.6 lbs – single unit* 7.2 Kg / 15.9 lbs – single unit incl. package |
| PERFORMANCE | |
| Frequency Range | 5180 - 6000 MHz |
| Gain | 16 dBi |
| Azimuth Beam Width -3 dB | H 60° / V 60° |
| Elevation Beam Width -3 dB | H 16° / V 16° |
| Azimuth Beam Width -6 dB | H 90° / V 90° |
| Elevation Beam Width -6 dB | H 25° / V 25° |
| Beam Efficiency** | 90% |
| Front-to-Back Ratio | 30 dB |
